Delta X 100/4 Counter surveillance sweeping system offers an updated rate of 100 MHz per second, a frequency range from 40 kHz to 4400 MHz, and a 45 seconds reaction time.

Delta X 100/4 is out of stock, however, please find here the replacement models:

Delta X G2/6 - handheld counter-surveillance sweeping system featuring a frequency range from 1 MHz to 6 GHz, sweep time of only 2-3 seconds, and simultaneous detection and location of transmitters

Delta X G2/12 - handheld counter-surveillance sweeping system featuring a frequency range from 1 MHz to 6 GHz, multiple working modes, and simultaneous detection and location of transmitters

Delta S - handheld counter-surveillance sweeping system with an update time of 0.8 seconds in full range, frequency range of 57-6000 MHz, and ability to detect RF jammers.

Delta X 100/4 Specifications:

Delta X Main model differences:

Delta X 2000/6 Real-Time Counter-surveillance sweeping system

• High update rate with 2000-3000 MHz per second
• Frequency range 40 kHz – 6000 MHz
• Detected signal's existence time: 2-3 seconds



Delta X 100/12 Counter-surveillance sweeping system

• Update rate 100 MHz per second
• Frequency range 100 kHz – 12400 MHz
• Detected signal's existence time: 60-120 seconds



Delta X 100/4 Counter-surveillance sweeping system

• Update rate 100 MHz per second
• Frequency range 40 kHz – 4400 MHz
• Detected signal's existence time: 45 seconds



Delta X 100/4 Package contents:

---

Delta X 100/4 Counter surveillance sweeping system FAQs

Are there any replacement models available for the Delta X 100/4?
Yes, replacement models for the Delta X 100/4 include the Delta X G2/6 and Delta X G2/12 handheld counter-surveillance sweeping systems, and the Delta S handheld system. These models offer different features, such as varying frequency ranges and sweep times, providing alternatives for different counter-surveillance needs.

Can the Delta X 100/4 detect signals transmitted through wires?
Yes, the Delta X 100/4 can detect illegal information transmission in AC, telephone, Ethernet, alarm, and other wires as well as in the infrared range with the help of the supplied Multifunction Probe. This capability allows for a comprehensive sweep of both wireless and wired surveillance devices, enhancing security measures.

How is the Delta X 100/4 powered?
The Delta X 100/4 is powered from the laptop’s USB. This convenient power source makes the system portable and easy to use in various locations, as it does not require a separate power supply, only a connection to a compatible laptop.

How long is the reaction time of the Delta X 100/4?
The reaction time of the Delta X 100/4 is 45 seconds. This means the system can detect signals and potentially identify surveillance devices within this timeframe, making it a reliable tool for counter-surveillance measures. The reaction time is crucial for accumulating data on digital signals with short bursts.

Is the Delta X 100/4 capable of data logging?
Yes, the Delta X 100/4 is capable of monitoring the RF environment 24 hours a day with data logging. This feature, facilitated by connection to a laptop, allows for continuous recording of signal data, which can be reviewed during detection or at a later time, providing a comprehensive overview of the RF environment.

What is the frequency range of the Delta X 100/4 Counter surveillance sweeping system?
The Delta X 100/4 has a frequency range from 40 kHz to 4400 MHz. This wide range allows it to detect a variety of RF listening devices, including those operating on GSM, 3G, 4G/LTE, 5G (below 6GHz), Bluetooth, Wi-Fi, and DECT standards. It’s designed to uncover hidden surveillance devices across a broad spectrum of frequencies.

What is the purpose of the "Generate Report” feature in the Delta X 100/4?
The "Generate Report” feature allows exporting the detection results into a PDF file, which completely describes the RF environment in the surveilled zone by listing dangerous and non-dangerous signals. This feature aids in documenting and analyzing detected signals for further investigation or evidence, providing valuable insights into the surveillance activities within the area.

What is the update rate of the Delta X 100/4 system?
The update rate of the Delta X 100/4 is 100 MHz per second. This rapid update rate enables the system to quickly and reliably detect all kinds of RF listening devices, including analog and digital, constant and intermittent signals, whether they are transmitting audio or video, encrypted or not. It ensures efficient and timely detection of surveillance devices.

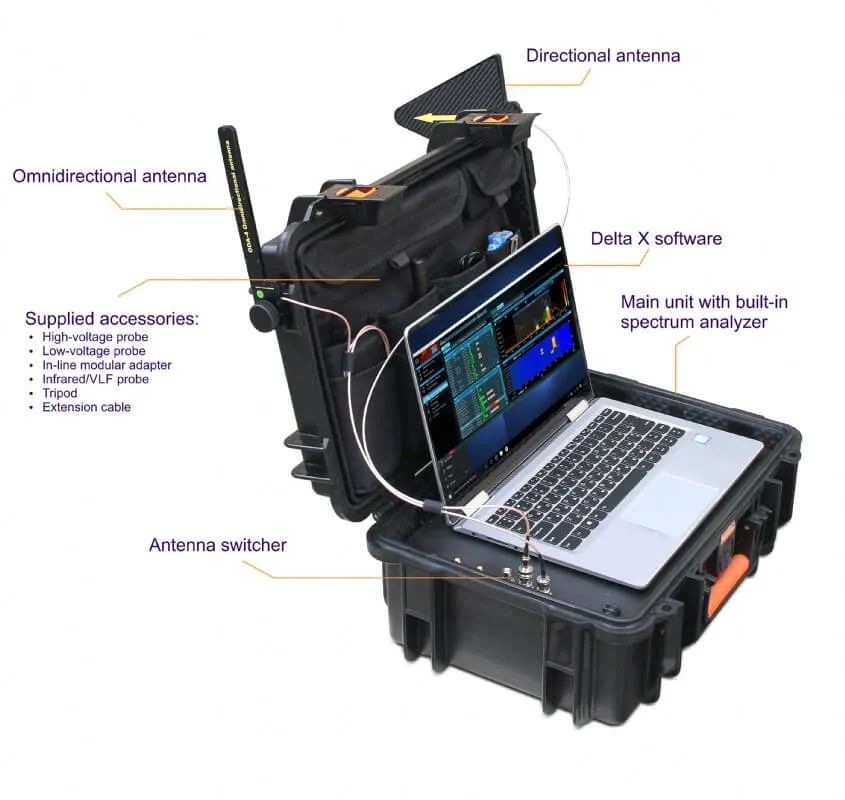

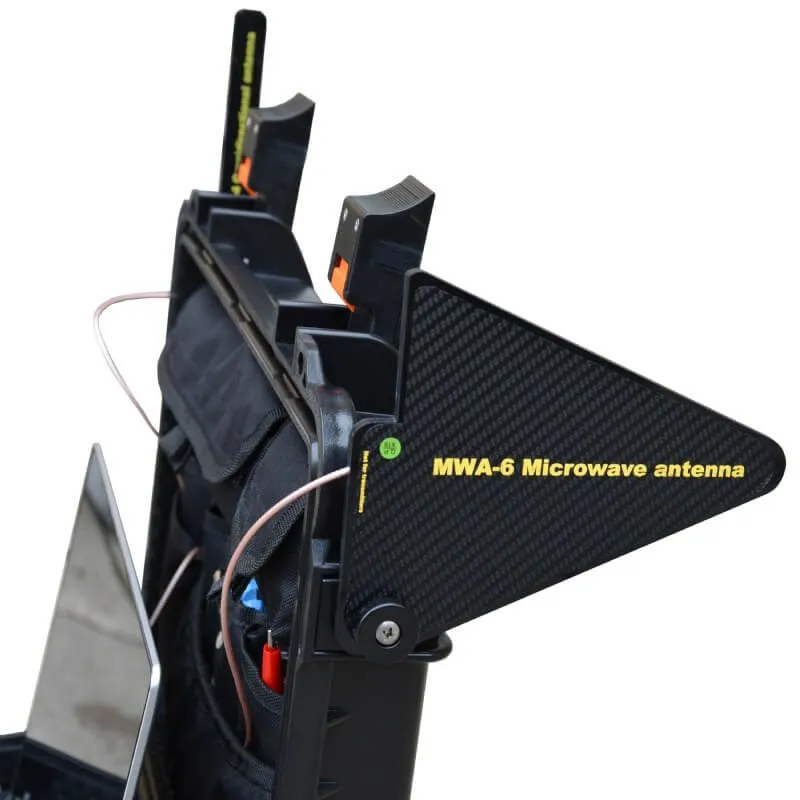

What kind of antennas come with the Delta X 100/4 package?

---

Note:

For more information on the specifications, how to set up the device, and the package contents, please carefully read the documents available for download below.

 24 Months Warranty



>>Download detailed specifications (PDF)<<
