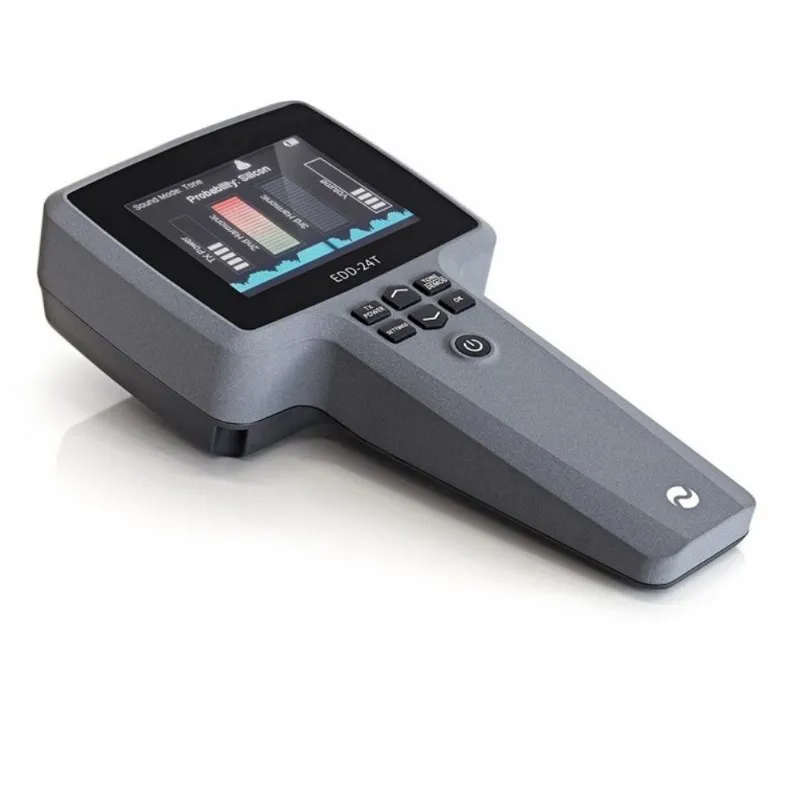

The new JJN Digital EDD-24XT is a non-linear junction detector (NLJD) that detects all types of electronic devices, whether active, passive, or powered off. It features an adjustable extension pole that extends up to 140 cm, ideal for reaching difficult areas.
The EDD-24XT NLJD works by identifying the presence of semiconductor circuits, which are found in all modern electronic devices. This means it can detect unauthorized and hidden surveillance equipment such as spy cameras, voice recorders, GSM bugs, tracking devices, mobile phones, SIM cards, and more. Regardless of whether the device is powered on, in standby mode, or completely turned off, the NLJD will locate it by detecting the materials used in the electronics.
How does it work? The EDD-24XT emits focused directional signals, and when these high-frequency signals pass over silicon, which is used in all semiconductor electronics, they generate a strong 2nd harmonic frequency. Other materials, like bi-metals or oxidized metals, can respond with a 3rd harmonic signal. TThe EDD-24XT transmits signals at 2.4 GHz and picks up reflected signals at 4.8 GHz for second harmonics or 7.2 GHz for third harmonics.
Even the smallest piece of silicon, such as a NANO SIM card, can be detected by the EDD-24XT
from a distance of up to 20 cm.

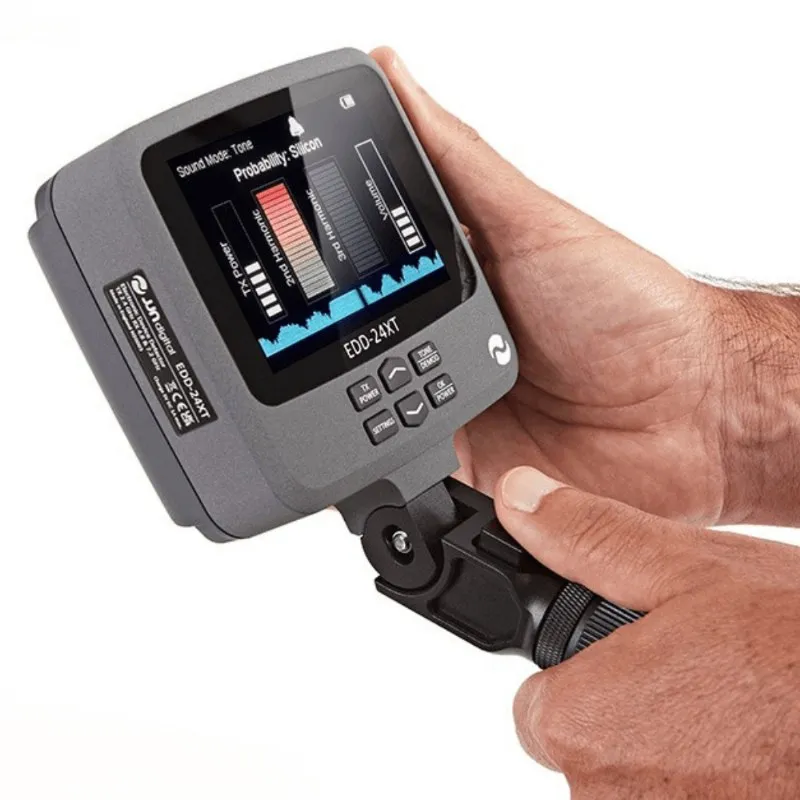

The detected signal strength is displayed on a bar graph on the 3.5-inch Color TFT Daylight Readable display, categorized as either silicon or metal, allowing for quick assessment.
The EDD-24XT also offers
audio feedback for detected signals, which can be heard through the internal speaker or the supplied earphones. In Audible Tone mode, the device emits a tone corresponding to a 2nd harmonic detection, with the pitch changing based on signal strength, allowing sweeps without needing to look at the display. In
Demodulation mode, you can also listen to the demodulated signal from the 2nd harmonic receiver.

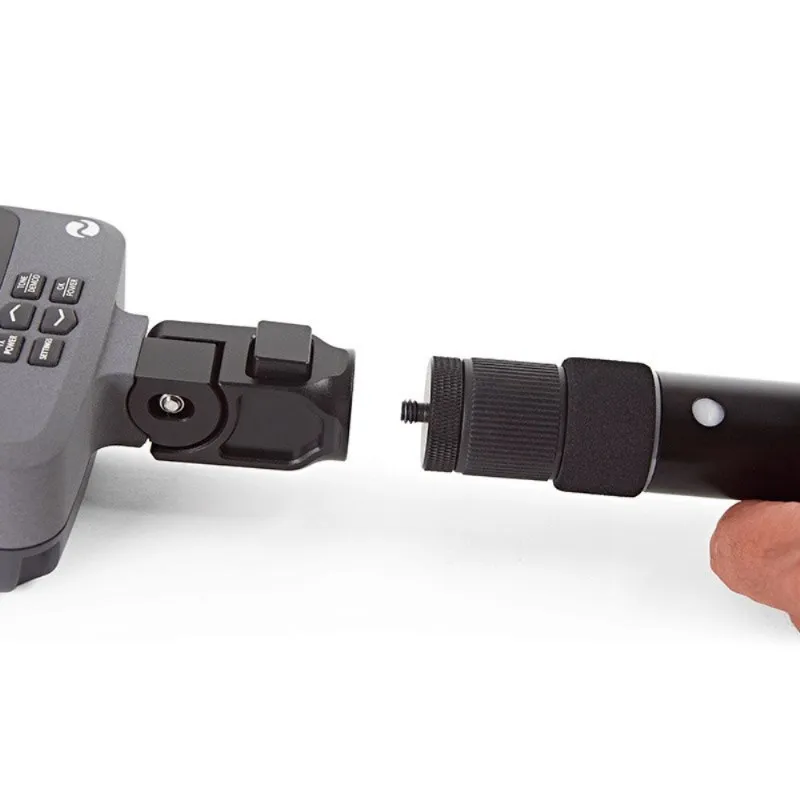

To provide you with maximum use, the EDD-24XT NLJD features an adjustable aluminum extension pole that can be set from 30 cm to 140 cm, enabling you to reach any hard to reach or high places, while the adjustable head offers five positions over a 90-degree angle, ensuring easier viewing of the screen. Additionally, two 200g counterweights are included in the set and can be attached to the base of the pole to improve balance and comfort during extended use.

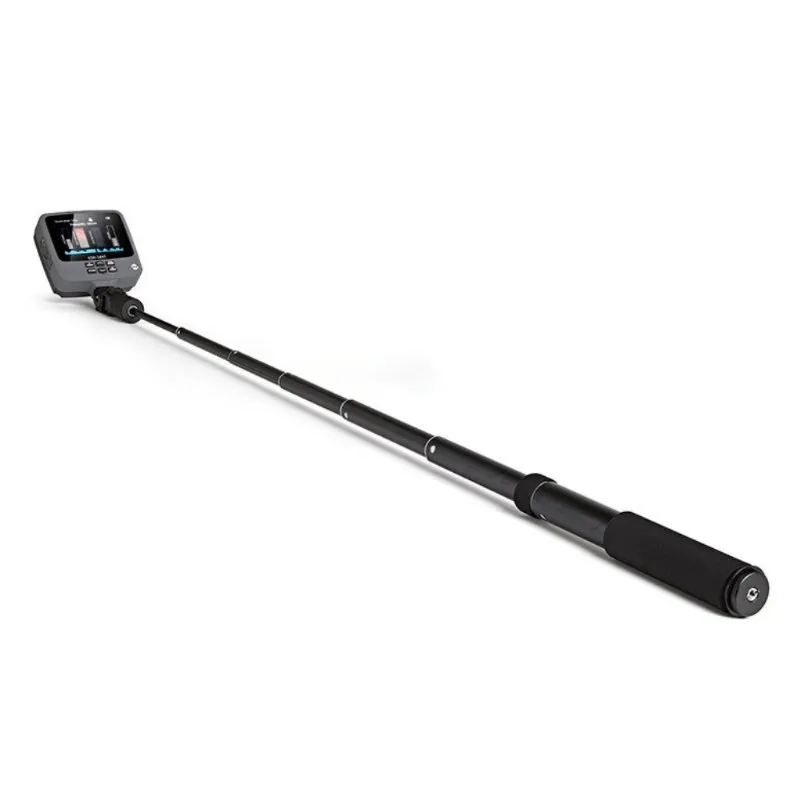

EDD-24XT Extended Pole up to 140 cm
Weighing
less than 1 kg, the EDD-24XT is fully portable and provides up to
4.5 hours of continuous operation thanks to its integrated Lithium-Polymer battery.

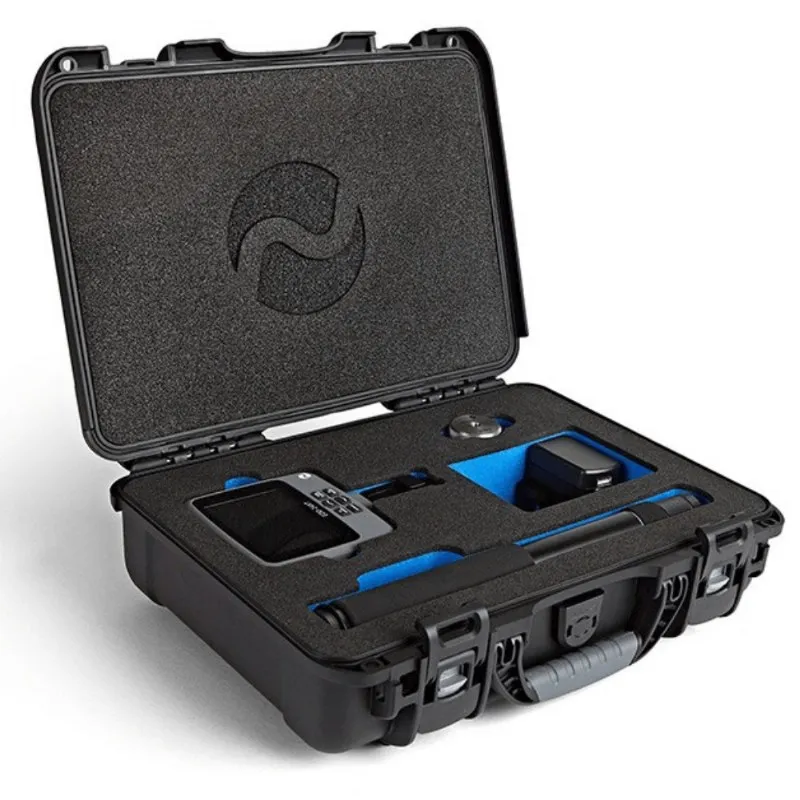

Built for durability, the EDD-24XT is enclosed in a machined aluminum casing and comes with a compact, military-standard carry case for protection and easy transport.
JJNdigital EDD-24XT Main Features:
- Detects all kinds of electronics - active, passive and powered off
- Adjustable extension pole extending from 30cm to 140cm
- 5 adjustable head positions over 90 degrees
- User-friendly interface with simple operation
- ‘Silicon’ or ‘Metal’ Indicator for detected materials
- Latest NANO SIM cards detection from a distance of up to 20 cm
- Receivers pick up 2nd harmonic signals at 4.8 GHz and 3rd harmonic signals at 7.2 GHz
- Demodulation and Audible Tone functions via speaker or earphones
- Battery life up to 4.5 hours
- Weighs less than 1 kg
- Enclosure in machined aluminium with moulded plastic antenna cover
- Set comes in a Military standard carry case
JJNdigital EDD-24XT Full Specifications:
Transmit Frequency: 2.400 GHZ to 2.425 GHz (ISM Band Type B)
Transmit Power Level: up to +30dBm (1 Watt)
Radiated Power Antenna: up to +36dBm (4 Watts) within allowable limits of ISM band (Type B)
Display: 3.5-inch Colour TFT Daylight Readable
Receiver Sensitivity: better than -120dBm on 2nd and 3rd harmonics
Receiver Bandwidth: Approx 10KHz
Battery: 3.7V Lithium Polymer Internal rechargeable
Battery Life: 4.5 Hours (Minimum TX Power), 2.0 Hours (Maximum TX Power)

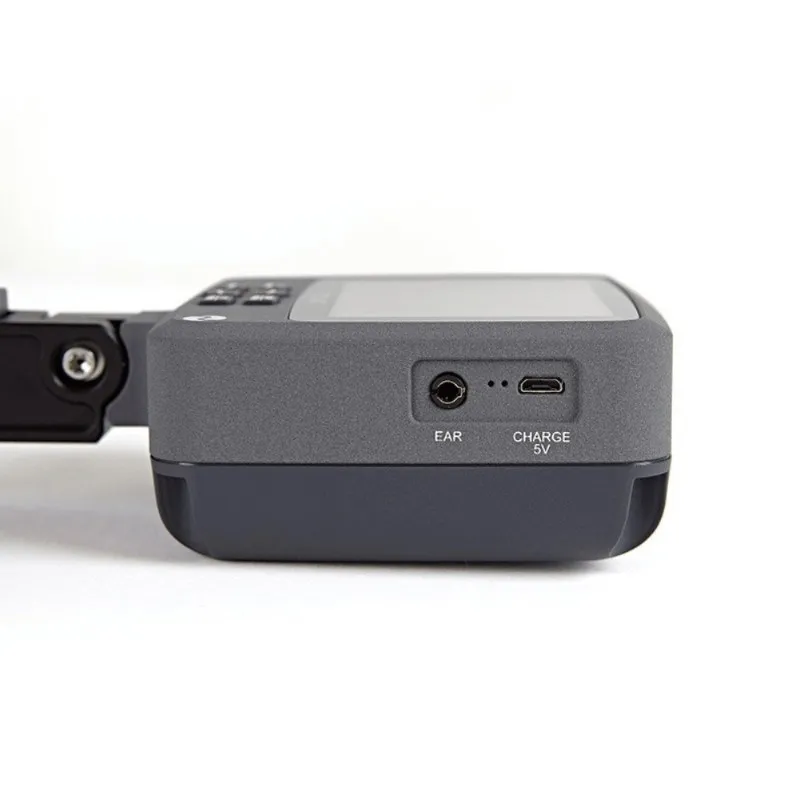

DC Charge: Micro USB Socket 5V 1A
Charger: Input 110/220V Auto-switching - International Adaptors, Output 5V DC 2A
Audio: Internal Loudspeaker or via 3.5mm Earphone Socket
Operating Temperature: 0 to 40 degrees C
Enclosure: Machined Aluminium Enclosure with Plastic Antenna Cover
Weight: 870g (Main unit with extension pole fitted), 3kg (Carry Case fitted with all accessories)
Extension Pole: Length adjustable from 30cm to 140cm
Dimensions incl. extension pole: Height 450mm x Width 110mm x Depth 47mm
Carry Case: Military Standard 363mm x 282mm x 120mm
JJNdigital EDD-24XT Feature Focus:
Detection of electronic devices in all operational modes - ON, standby, OFF
The JJN Digital EDD-24XT detects all electronic devices, no matter if they are ON, in standby mode, or OFF. By identifying semiconductor circuits found in all modern electronics, it can uncover hidden surveillance equipment such as spy cameras, GSM bugs, GPS trackers, listening devices, and NANO SIM cards. Its ability to detect devices regardless of their power state ensures safety from unauthorized spyware in various security environments.
Signal Categorization 'Silicon' or 'Metal' for Quick Assessment
The JJN Digital EDD-24XT categorizes detected signals into two key materials: silicon and metal. As the device scans for electronic devices, it identifies harmonic frequencies produced by semiconductors, which are displayed on a 3.5-inch Color TFT Daylight Readable screen as a bar graph. This allows you to quickly determine if the signal is from a silicon-based component (like a chip or SIM card) or a metal object.

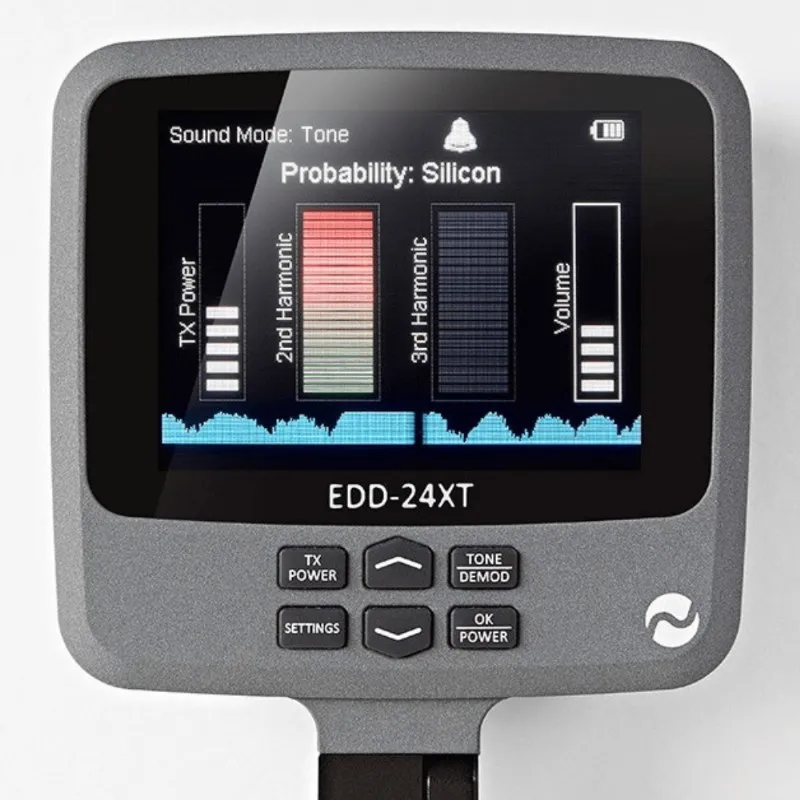

EDD-24XT Main Screen Detected Signal on 2nd Harmonic Silicon, and Detected Signal on 3rd Harmonic Metal
Adjustable pole and head for reaching hard-to-access areas
The EDD-24XT is equipped with an adjustable aluminum extension pole that extends up to 140 cm, making it ideal for scanning hard-to-reach or higher areas. The pole also offers an adjustable head that can be set in five different viewing angles within a 90-degree range, allowing you to maintain full screen visibility while performing sweeps.
EDD-24XT Adjustable Head positions over a 90-degree angle
Real-Time Audio Feedback during sweeps
The EDD-24XT provides audio alerts for detected signals via internal speaker or the included earphones. The Audible Tone feature changes pitch based on signal strength, allowing you to perform sweeps without constantly checking the display. Additionally, the device features a Demodulation mode, with which you can listen to demodulated signals from the 2nd harmonic receiver.
Portable and Comfortable to Use
Weighing less than 1 kg, the EDD-24XT is highly portable and easy to handle. The set has 2x 200g counterweights that can be attached into the base of the extension pole, helping balance and comfort, especially when the pole is fully extended. This design allows for stable and comfortable use during extended operation.
NLJD Built for Durability and Convenience
The EDD-24XT is build in machined aluminum enclosure, providing durability for regular use. The whole set comes in a military-standard carry case, offering protection during transport. With an integrated Lithium-Polymer battery that provides up to 4.5 hours of continuous operation, it ensures long-lasting performance for sweeps and security inspections in the field.
JJNdigital EDD-24XT Package Contents:
- EDD-24XT Portable Electronic Device Detector
- Aluminium Extension Pole
- 2 x 200g Counterweights
- Charger - 110V to 240V AC input (Auto Switching) with International Adaptors - Output 5V DC
- Earphones
- High Protection Military Standard Carry Case
EDD-24XT FAQs:
What types of devices can the EDD-24XT detect?
The EDD-24XT can detect a wide range of electronic devices, including spy cameras, voice recorders, GSM bugs, tracking devices, mobile phones, and NANO SIM cards, whether they are active, passive, or powered off.
How does the EDD-24XT identify signals from electronic devices?
The device works by emitting focused directional signals that interact with semiconductor circuits in electronic devices, generating harmonic frequencies. It can detect both silicon and metal materials, providing insight into the type of devices present.
What is the maximum range for detecting a NANO SIM card?
The EDD-24XT can detect NANO SIM cards from a distance of up to 20 cm.
How long does the battery last on the EDD-24XT?
The integrated Lithium-Polymer battery provides up to 4.5 hours of continuous operation, depending on the power settings used.
Is the device portable for fieldwork?
Yes, weighing less than 1 kg and coming with a compact military-standard carry case, the EDD-24XT is highly portable and convenient for use in various field conditions.
What features enhance the usability of the EDD-24XT?
The device features an adjustable extension pole that extends from 30 cm to 140 cm, as well as an adjustable head with five viewing angles. This design allows for easier access to hard-to-reach areas while maintaining a clear view of the display.
How does the audio feedback feature work?
The EDD-24XT provides real-time audio feedback through its internal speaker or supplied earphones. The audible tone changes pitch based on signal strength, allowing users to perform sweeps without needing to constantly check the display.
Can I listen to the signals detected by the EDD-24XT?
Yes, the device includes a demodulation mode, allowing users to listen to the demodulated signals received from the 2nd harmonic frequency, providing further insight into detected devices.
What materials is the EDD-24XT made from?
The EDD-24XT features a durable machined aluminum casing that protects the internal components and ensures reliability during regular use.
What is included in the package when I purchase the EDD-24XT?
The package includes the EDD-24XT Portable Electronic Device Detector, an aluminum extension pole, two 200g counterweights, a charger with international adaptors, earphones, and a high-protection military-standard carry case.
Note:
For detailed info on the specifications and use of the device, please read the PDFs available for download below.
Use only the provided charger and cable, that are supplied in the accessories of the unit. The usage of other chargers may damage the unit and is not covered by the product warranty.
24 Months Warranty
