The JJN Digital HSA-Q1 is a handheld, fully integrated RF Spectrum Analyser featuring an ample frequency range from 1 MHz to 13.44 GHz with a sweep time of only 0.5 seconds!
The HSA-Q1 Handheld RF Spectrum Analyser is specifically designed for maximum detection capability in professional countermeasures RF detection or Sweeps. To ensure the detection of all types of RF signals, the HSA-Q1 presents with an extensive frequency range from 1 MHz to 13.44 GHz with a remarkable sweep time of just 0.5 seconds in Full Range and an even shorter 0.2 seconds sweep time in the Lower Range. With this kind of frequency span, you can detect all sorts of RF signals and in particular the modern pulsed burst signals that are often missed with slower sweeping equipment.
The RF sensitivity can be adjusted over 5 levels, ensuring detection for signals in next-door rooms or outside the building with Maximum sensitivity of -80 dBm in Sweep, as well as detection when a specific nearby signals source is needed with Minimum sensitivity of -100 dBm in Direct Tune.

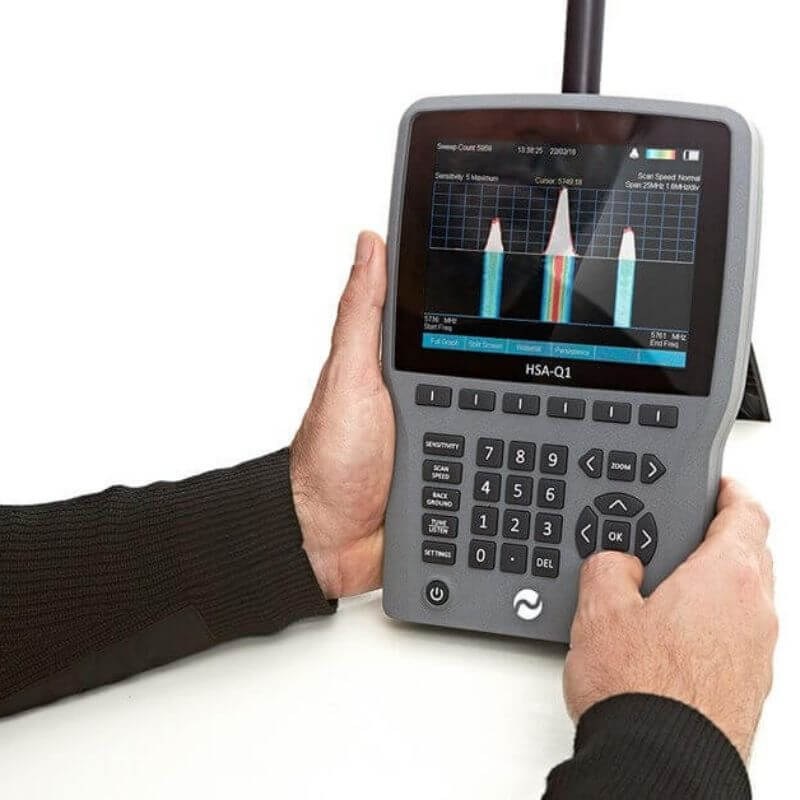

The Waterfall Spectrogram Functiondisplays in real-time and full-color graphical display of any and all detected signals, thus allowing further analysis. This comes in handy when trying to discover modern pulsed digital signals or frequency-hopping signals from the latest technology, such as Cellular, Wi-Fi, GPS, or Burst-based devices. Also helpful is the Persistence mode which changes the color of the signal from blue to red for the longest detected signal allowing for even greater analysis and identifying continuous signals that might otherwise be hidden in a noisy RF environment.
The Tune & Listen function grants you the option where pressing a button allows you to direct tune in to any detected signal, view its pattern, and signal strength live. The Memory log of the device can be stored in the included USB stick with a time&date stamp, and if needed, featuring also is a Background scan with which you can store and recall past RF environments for additional comparison to newer RF environments in the future.

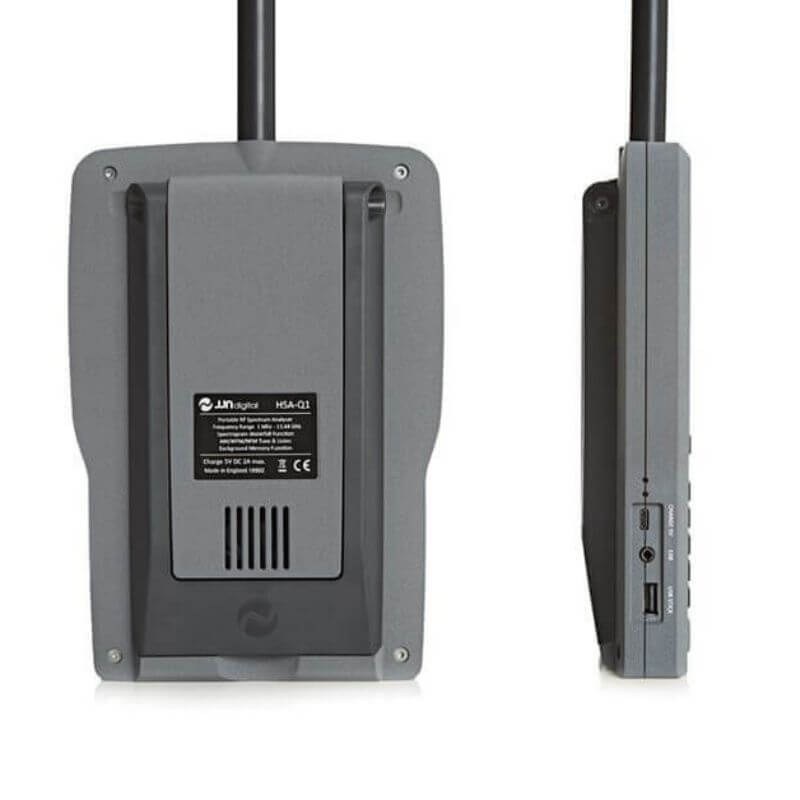

The HSA-Q1 is a portable device for handheld use however also fitted with a retractable stand should it be required for desktop use. The device provides an intuitive user-friendly interface. For maximum durability, it is protected in a machined aluminum enclosure and comes in a compact military standard carry case.
Sweep time of only just 0.5 seconds in Full Range and 0.2 seconds in Lower Range
Extremely high RF sensitivity over 5 levels (-80 dBm Sweep, -100 dBm Direct Tune)
Spectrogram Waterfall Function for analysis of the detected signals
Tune & Listen demodulation function with Wide FM, Narrow FM, and AM selection
Audio can be listened to by an internal speaker or the provided earphones
Background memory function for differentiating prior sweeps
Persistence mode for further analysis of discovered signals
Multi-Element Antenna and a Telescopic Whip Antenna included
Memory logging via USB Stick with included Time&Date stamp
6" TFT Display Screen for complete outdoor readability
Internal Lithium Polymer Battery for up to 4 hours of operation time
Handheld and portable
Intuitive user-friendly interface
Comes in a compact military standard carry case
JJN Digital HSA-Q1 Full Specifications:
Frequency Range: 1 MHz to 13.44 GHz
Sweep time: 500 ms (Full Range) down to 200ms (Lower Range)
Waterfall Function: Real-Time Full Colour Spectrogram
Tune and Listen Function:
1) Direct Tune to any frequency (1 kHz Resolution) 2) AM/WideFM/NarrowFM Demodulation via Speaker or Earphones
Background Memory Function: Record RF environment and store for later comparison
RF Sensitivity in Sweep Mode: -80 dBm Max
RF Sensitivity in Tune & Listen Mode: -100 dBm Max
Display: 6” TFT Display Screen - Outdoor Readable

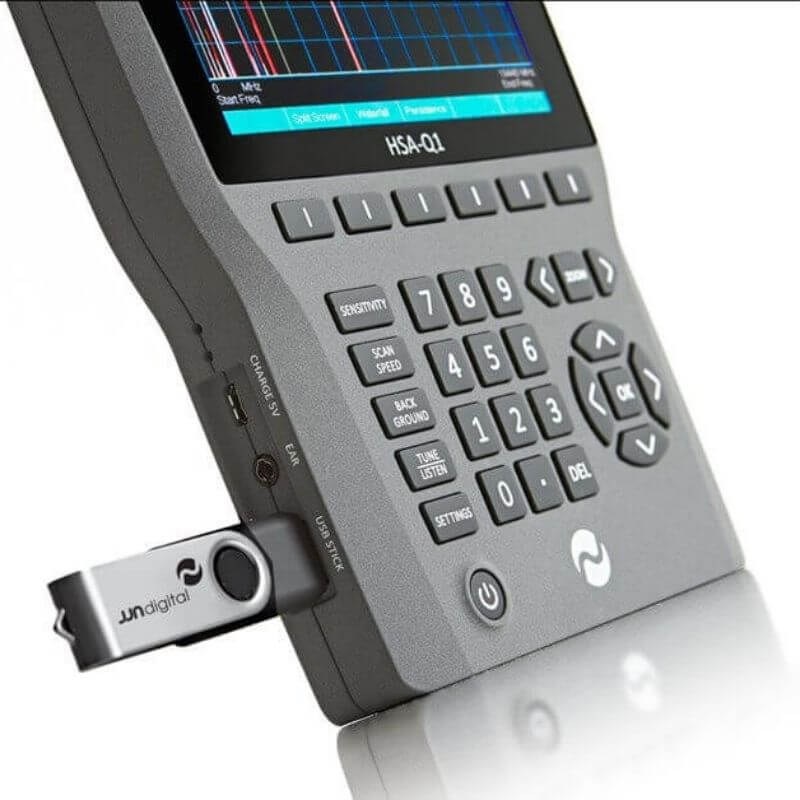

Data Logging interface: to USB Stick – Time and Date Stamped
Audio Output: Internal Speaker or Headphone Socket

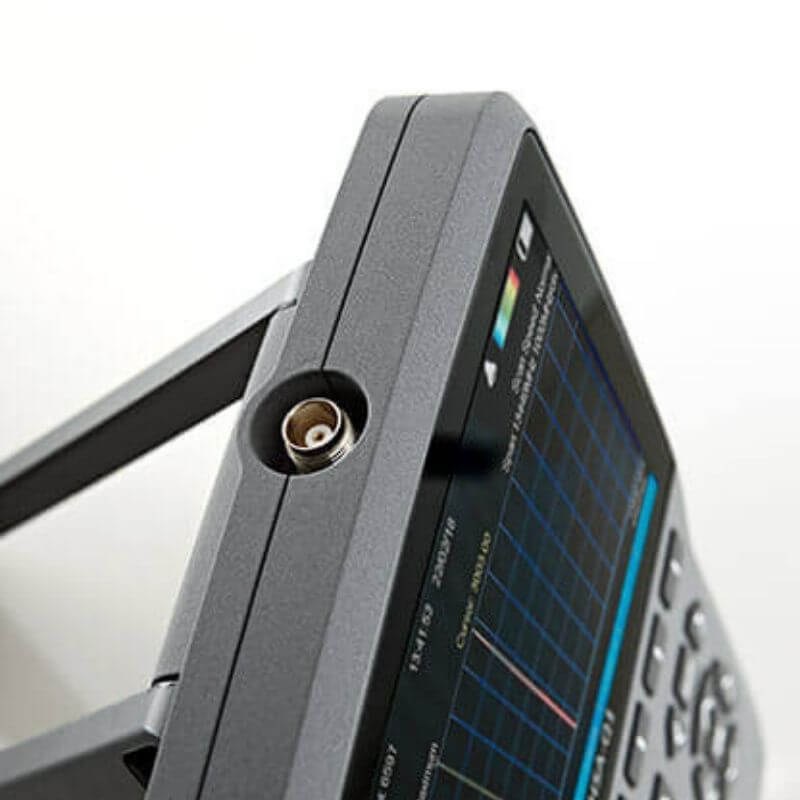

RF Connector: TNC Jack
Antenna 1: Multi-Element 13.44GHz - Lenght 220mm x Dia. 17mm
Antenna 2: Telescopic Whip Antenna (Low-Frequency use)
Power: Internal Lithium Polymer Battery - up to 4 Hours Battery Life
DC Charge: Micro USB
Charger: 110/220V Auto-switching with International Adaptors
Enclosure: Machined Aluminium Enclosure
Weight: 1.3Kg (Main unit)
Dimensions: Height 223mm x Width 158 mm x Depth 45mm
Carry Case: Compact Military Standard L363mm x W282mm x H120mm
Pictures taken from User Manual
JJN Digital HSA-Q1 Feature Focus:
Practical handheld design with fitted retractable stand
For the ultimate flexibility, while sweeping, this device is made absolutely portable for handheld use. Weighing just 1.3kg, and with a battery life of up to 4 hours in one charge, you are free to operate continuously with the device wherever you need. The unit can also operate while the charger is connected should you need a longer operation time. The HSA-Q1 is also fitted with a retractable stand for desktop use when necessary.
Impressive sweep time
In just 0.5 seconds, you can do a Full Range sweep with the HSA-Q1 and for shorter spans and lower ranges, sweep time is an extraordinary 0.2 seconds, in comparison to the newest Delta X G2/6 which has a sweep time of 2-3 seconds and the Delta X G2/12 with a sweep time of 3-4 seconds.
Waterfall Spectrogram Function with Persistence Mode
One of the main features the HSA-Q1 Handheld RF Spectrum Analyser presents is the Waterfall Spectrogram Function which reveals a real-time graphical display in full colour of any detected signals enabling you a further analysis. This feature is extremely helpful when trying to detect modern pulsed digital signals or frequency hopping signals from modern devices such as Cellular, Wi-Fi, GPS, or Burst-based devices. The Persistence mode changes signal colour from blue to red for the longest present ('persistent') signals so you can better identify persevering signals that otherwise might be concealed in a busy RF environment.
Pictures taken from User Manual
Tune & Listen Function
Providing ease of use, with the Tune&Listen function you can direct tune into any detected signal, view the signal's pattern, and see its strength live down to -100dBm, all with a simple press of a button. By using the audio demodulation, you can choose between WideFM, NarrowFM or AM demodulation and listen to detected signals via built-in speakers or provided earphones, which allows you to better distinguish regular bugs with microphones from harmless detected signals like broadcast radio.
5 levels for RF Sensitivity
With 5 levels for adjusting the RF sensitivity, you will be able to uncover all signals whether they are close by in adjoining rooms, outside the building, or even when you need the location for a specific nearby signal source. The Maximum RF sensitivity in Sweep Mode is -80dBm, while in Tune&Listen mode, it goes to -100dBm.
Background Scan Function
Another great feature the HSA-Q1 provides is a Background scan. When needed, the device will study and save the current RF environment. At any time in future scans, the RF environments can be recalled and compared to see if any new signals have appeared in the RF environment since you last reviewed them. New signals will be accentuated on the display thus allowing you to inspect closely.
Pictures taken from User Manual
Two supplied antennae
Supplied with the device are two antennae to help flexibility in allocating specific signals. The Multi-Element 13.44GHz Antenna is provided for general use and a Telescopic Whip antenna is provided for low-frequency use.
Quality build
As with all JJNdigital products, the HSA-Q1 is designed with high-quality materials, manufactured, and fully tested in the UK, as well as comes with the CE certificate. For maximum endurance, the device is encased in a machined aluminum enclosure and arrives in a high-protection military carry case for the utmost protection and convenience while conducting sweeps.
How to use the JJN Digital HSA-Q1:
Watch the HSA-Q1 unboxing video with full package contents (subtitles with accessories and menu description available) & quick Menu demo:
Take a look at the detailed functions of the HSA-Q1, and the ease of use the product provides:

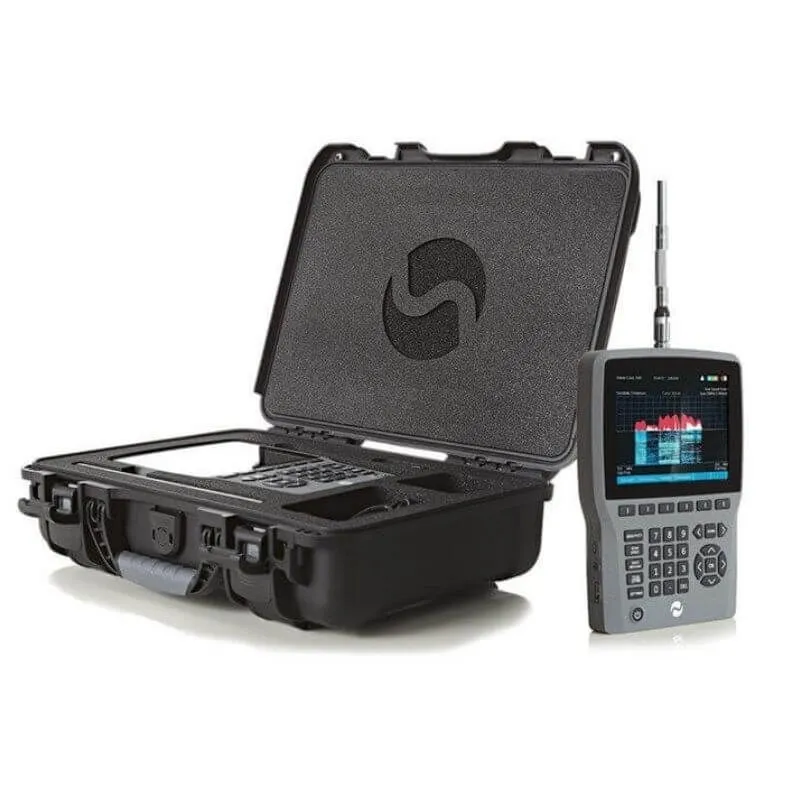

JJN Digital HSA-Q1 Package Contents:
HSA-Q1 Handheld Spectrum Analyser
Multi-Element Concentric Antenna (23 cm)
Telescopic Whip Antenna
Charger - 110V to 240V AC input (Auto Switching) with International Adaptors
Earphones
High Protection Military Standard Carry Case 5V DC
Can the RF sensitivity of the HSA-Q1 be adjusted?
Yes, the RF sensitivity of the HSA-Q1 can be adjusted over 5 levels. This feature allows users to fine-tune the device’s sensitivity to detect signals as faint as -80 dBm in Sweep mode and -100 dBm in Direct Tune mode, making it versatile for detecting signals in various environments, whether they are from next-door rooms or outside the building.
Does the HSA-Q1 have a Tune & Listen function?
The HSA-Q1 features a Tune & Listen function that allows users to directly tune into any detected signal to view its pattern and signal strength live. This function, combined with audio demodulation options (Wide FM, Narrow FM, and AM), enables users to listen to the demodulated audio through the built-in speaker or provided earphones, offering a practical way to distinguish between different types of signals.
How does the Memory log function work on the HSA-Q1?
The Memory log function of the HSA-Q1 enables the storage of detected RF environments on the included USB stick with a time and date stamp. This allows users to store and recall past RF environments for comparison with newer scans, making it easier to identify new signals or changes in the RF landscape over time. It’s a useful feature for ongoing surveillance and signal monitoring tasks.
How fast is the sweep time of the HSA-Q1?
The HSA-Q1 boasts a sweep time of just 0.5 seconds in Full Range and an even faster 0.2 seconds in the Lower Range. This rapid sweep time enables the device to quickly scan through its entire frequency range, ensuring that even the briefest signals can be detected. The device’s speed makes it particularly effective for identifying modern pulsed burst signals that could be missed by slower equipment.
Is the HSA-Q1 portable?
The HSA-Q1 is designed for handheld use, making it highly portable, but it also comes with a retractable stand for desktop use when needed. Weighing just 1.3kg and with a battery life of up to 4 hours, it offers flexibility for on-the-go operations while still providing the option for stationary use during extended monitoring sessions.
What is the build quality of the HSA-Q1?
The HSA-Q1 is encased in a machined aluminum enclosure, ensuring maximum durability and protection. It is designed, manufactured, and fully tested in the UK, meeting high-quality standards, and comes in a compact military standard carry case for added protection and convenience during transport and sweeps.
What is the frequency range of the JJN Digital HSA-Q1?
The JJN Digital HSA-Q1 covers a frequency range from 1 MHz to 13.44 GHz. This wide range allows it to detect a broad spectrum of RF signals, making it suitable for professional countermeasures and RF detection sweeps. Its ability to cover such an extensive frequency range ensures that users can detect both low and high-frequency signals with a single device.
What is the Waterfall Spectrogram Function on the HSA-Q1?
The Waterfall Spectrogram Function on the HSA-Q1 displays detected signals in real-time on a full-color graphical display. This function is invaluable for analyzing modern pulsed digital signals or frequency-hopping signals, providing a visual representation that helps in identifying and differentiating signals in a noisy RF environment. The color-coded persistence mode further aids in signal analysis by highlighting the longest detected signals.
What type of antennas does the HSA-Q1 come with?
The HSA-Q1 is supplied with two types of antennas: a Multi-Element Antenna for general use and a Telescopic Whip Antenna for low-frequency applications. These antennas enhance the device’s versatility, allowing users to optimize signal detection across the HSA-Q1’s broad frequency range by selecting the appropriate antenna for their specific needs.
Note:
For detailed info on the specifications and use of the device, please read the PDF available for download below.
Use only the provided charger and cable, that are supplied in the
accessories of the unit. Usage of other chargers may damage the unit and is not
covered by the product warranty.
Disclaimer: Items on the website are not be used for the purpose of illegal surveillance of unsuspecting subjects. The items are to be used only in compliance with all the local laws and regulations under the threat of penalty.
