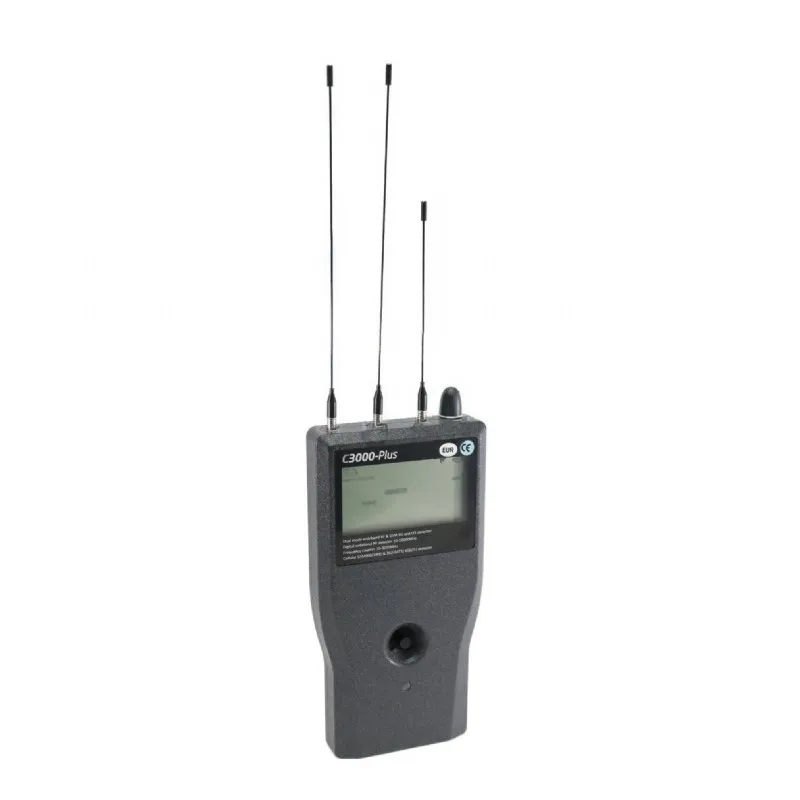

HS-C3000 Plus is a Wireless Digital Frequency counter that shows you the exact frequency of a detected covert device! It will identify and locate all wireless audio and video spy equipment in a 10 MHz to 10 GHz frequency range.

This includes digital and analog signals, from audio and video equipment. It will find covert recording devices no matter if they are hidden under clothing, in walls, in cars, under furniture, in objects of everyday use like books, radios, etc. It will even find covert spying devices in ceilings and hidden in the cement.

This includes mobile phones, wireless remote controls, digital radios, car keys, intercoms, wireless cameras (1.2G/2.4G), wireless microphones, Wi-Fi / 3G / 4G, and WMAX devices, just to name the most common. The device is easy and intuitive to use - it has one multifunction button and one multifunction knob - which you will intuitively learn to handle in a minute or two.

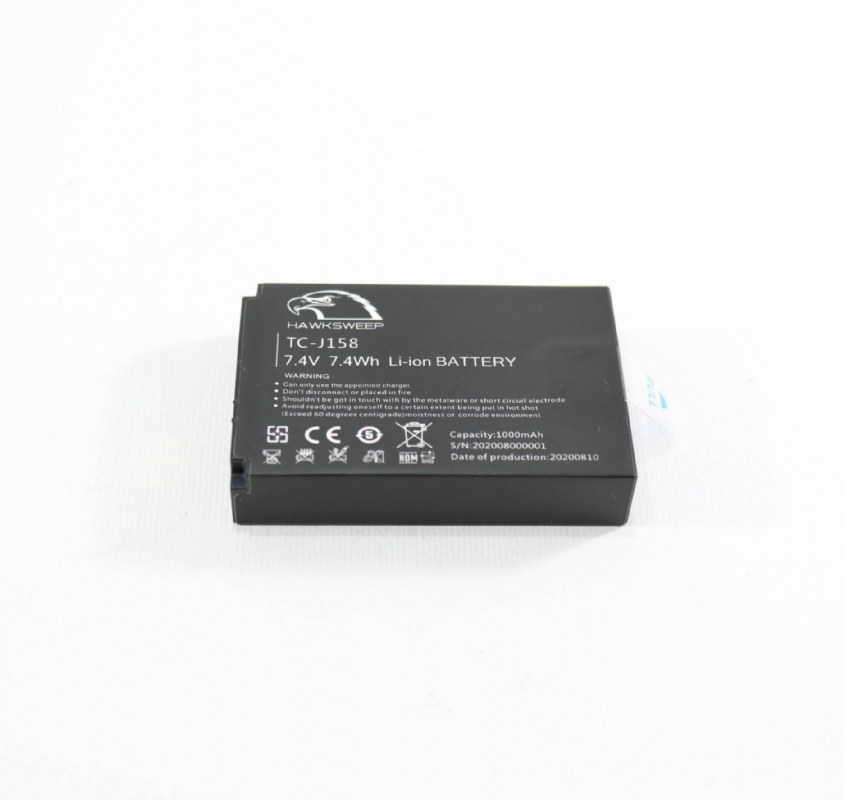

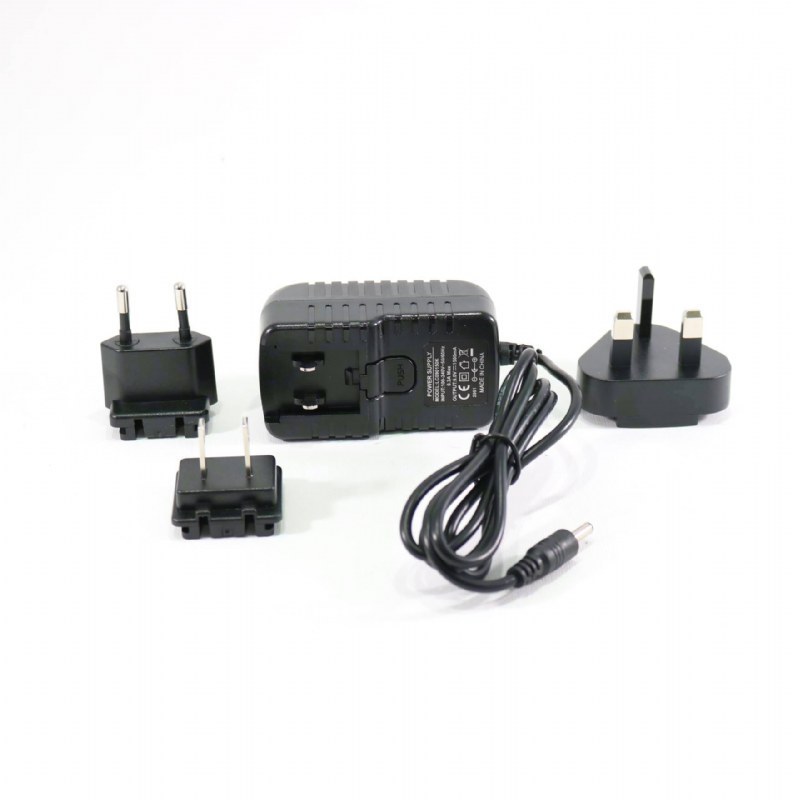

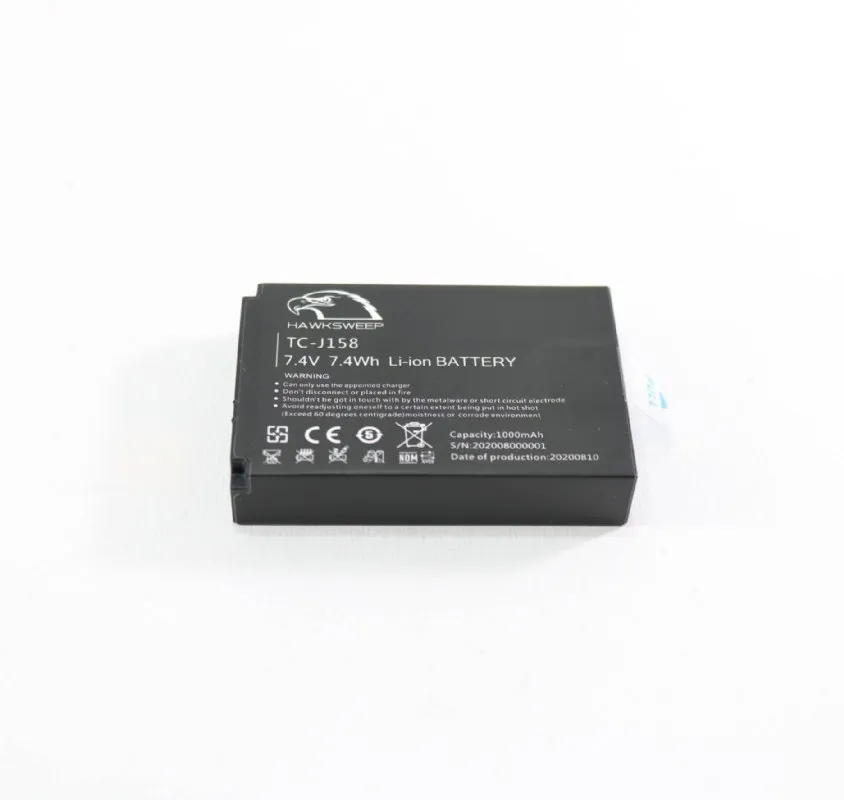

The unit comes with an 8-bit LCD display and is powered by a lithium-ion battery with low power consumption. You will have the battery status displayed on the LCD screen of the detector.  It comes in a Pelican carrying case, for secure transport of the device and maximum protection for your high-value equipment. Multinational charging plugs are supplied with the charger.



HS-C3000 has proven to be a good choice for users looking to detect all kinds of covert devices at a good price, as it offers intuitive operation and accuracy.



The HS-C3000 Plus RF detector has 3 working modes;

1. Recording frequency mode for 10-3000MHz wireless signal search (exact frequency counter mode example below)
2. Cell phone signal mode searches the signal through the multifunction key (precise detection per popular bands example below)
3. Broadband mode which can test 0-10GMHz wireless signals

Here you can choose between the " Range 3000 MHz" and "Range 500 MHz" - which will cover all GSM, 3G, 4G, Wi-Fi, Bluetooth, wireless cameras, microphones etc.

In the picture below, you can see on the left picture the exact detected frequency detection process. While this is happening the frequency counter is showing the exact detected frequencies that you can better look at when pressing the "hold" button (one short press on the central button).

If you choose this option (long-press the central button for 2-3 seconds), you will be able to see the detection on all popular bands frequencies: LTE800, GSM900, GSM1800, WCDMA2000, Wi-Fi, Bluetooth.





The signal strength can be adjusted, if you take a look, you will see the "Max" sensitivity on the LCD screen, and you will also see that the cellphone mode is selected. The detector was pointing at ta smartphone with activated 4G and Bluetooth, as can be seen in the reading above.

Impedance: 50 Ohms (MCX connector)
Frequency range:
U.S. BANDS
LTE 700 CDMA 800 GSM1900 CDMA2000
LTE2300 WIFI 2400
EURASIAN BANDS
LTE 800 GSM900 GSM1800 WCDMA2000
LTE2600 WIFI 2400
Sensitivity: -60 dBm Maximum Input: 15 dBm
Broadband Wireless Signal Mode Specification:
Detection Frequency: 0-10GHz
Detection sensitivity: -65dBm
500 MHz bandwidth can measure the range of 10 MHz to 0.5 GHz
3000 MHz bandwidth can measure the range of 500 MHz to 3 GHz
Audible alarm and mute function
Charging Adapter available in the accessories of the unit

Can the HS-C3000 Plus detect mobile phone signals?
Yes, the HS-C3000 Plus can detect mobile phone signals, including LTE800, GSM900, GSM1800, WCDMA2000, Wi-Fi, and Bluetooth frequencies. Its cell phone signal mode is specifically designed for this purpose, making it a useful tool for identifying unauthorized or hidden mobile devices in restricted areas.

Can the HS-C3000 Plus detect wireless cameras and microphones?
Yes, the HS-C3000 Plus is capable of detecting wireless cameras and microphones. It is designed to find covert spying devices hidden in various objects or environments, including those operating on frequencies between 1.2G and 2.4G, which are common for such devices. This makes it a valuable tool for ensuring privacy and security.

How do you adjust the signal strength on the HS-C3000 Plus?

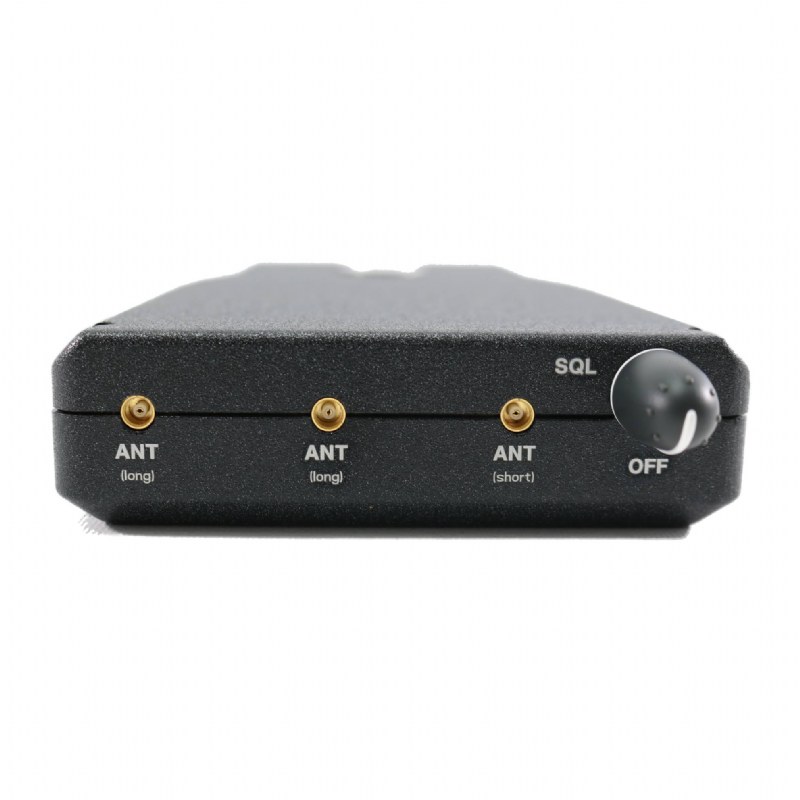

Signal strength on the HS-C3000 Plus can be adjusted via the SQL Knob. This feature allows users to fine-tune the received signal strength, enhancing the device’s sensitivity to detect weaker signals or reducing it to focus on stronger, nearby signals, thereby improving the accuracy and effectiveness of the detection process.

How does the HS-C3000 Plus display detected frequencies?
The HS-C3000 Plus uses an 8-bit LCD display to show the exact frequency of detected signals. Once a frequency is detected, users can press the "hold” button to freeze the display for a closer look at the specific frequency, enhancing the device’s usability and accuracy in identifying covert devices. The display also shows battery status and signal strength, providing essential information at a glance.

How is the HS-C3000 Plus powered?

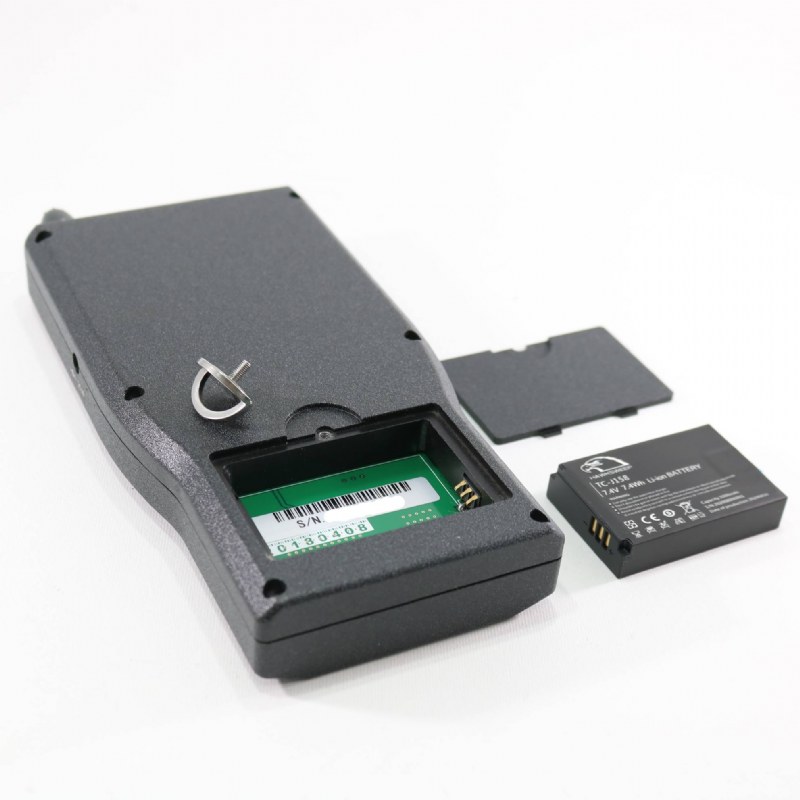

The HS-C3000 Plus is powered by a lithium-ion battery, which is known for its low power consumption. The device’s LCD screen displays the battery status, including when it is high, medium, or low, and there is also a battery charging status indicator, ensuring users can manage the device’s power efficiently.

What are the working modes of the HS-C3000 Plus?
The HS-C3000 Plus has three working modes: Recording frequency mode for 10-3000MHz wireless signal search, Cell phone signal mode for precise detection of popular bands, and Broadband mode for testing 0-10GHz wireless signals. These modes enhance the device’s versatility in detecting a wide range of frequencies and signal types.

What comes included in the HS-C3000 Plus package?

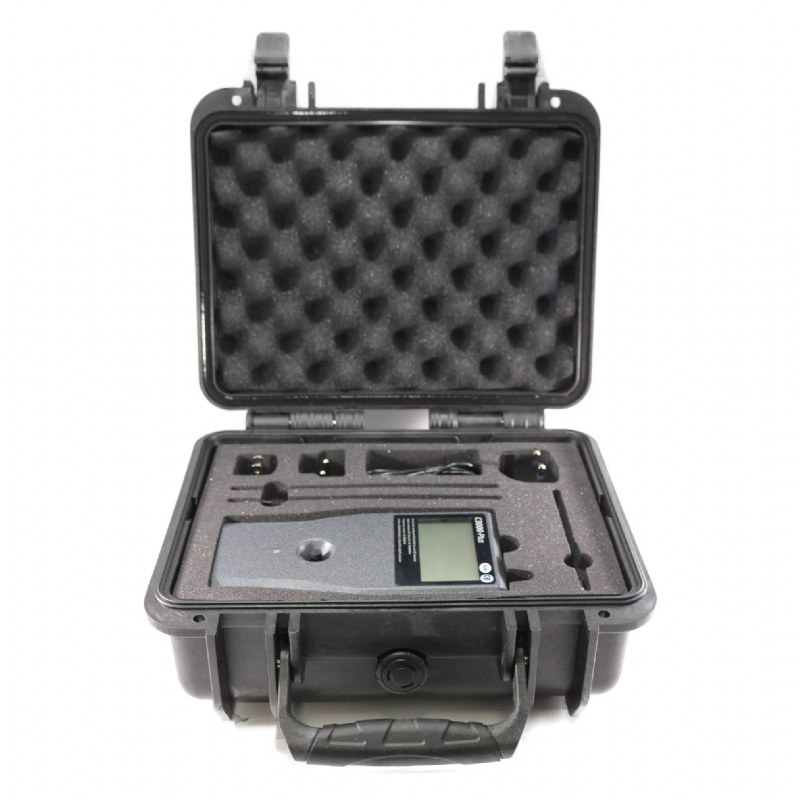

The package includes the main unit HS-C3000 Plus Handheld RF detector, three antennas for different detection needs, a charger with multinational plugs for global use, a durable Pelican carrying case for protection and transport, a test transmitter, and a user manual for guidance. This comprehensive package equips users with everything needed to start detecting covert devices immediately.

What frequency range can the Hawksweep HS-C3000 Plus detect?
The Hawksweep HS-C3000 Plus can detect frequencies from 10 MHz to 10 GHz. This wide range allows it to identify both digital and analog signals from various devices such as audio and video equipment, smartphones, and wireless cameras. Its ability to cover such a broad spectrum makes it highly effective for detecting hidden surveillance devices.

What type of alarms does the HS-C3000 Plus have?
The HS-C3000 Plus features multiple alarm types, including sound and vibrating alarms. These alarms alert users to the presence of detected signals, providing immediate notification so that users can take appropriate action. The choice between sound and vibrating alerts adds flexibility based on the environment and user preference.

---

For detailed info on the specifications and use of the device, please read the PDF available for download below.
