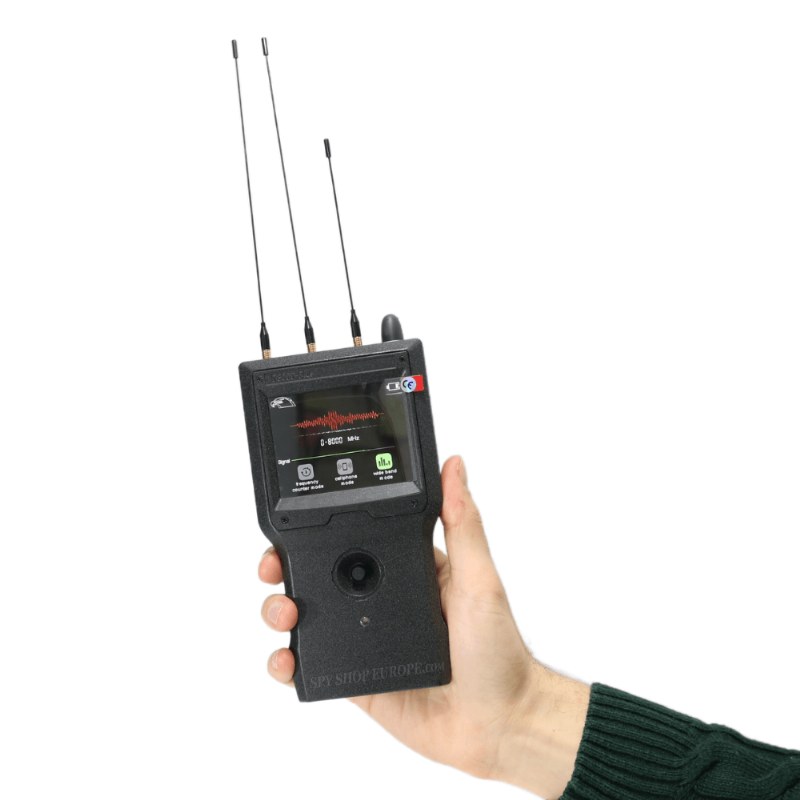

The Hawksweep HS-D8000 Plus is a user-friendly portable Digital Frequency Counter capable of detecting and identifying a wide spectrum of radio frequency signals within the 0-10 GHz range. This device accurately displays the frequency of any detected spy equipment in the area.



Use the Multifunctional Navigational Key to choose between "Range 3000 MHz" or "Range 500 MHz". This covers GSM, 3G, 4G, Wi-Fi, Bluetooth, wireless cameras, microphones, and more.

In the picture on the left, you'll see the frequency detection process. While the device is detecting, the frequency counter will show the exact detected frequencies. You can press the "hold" button (one short press on the central button) to get a better look at them.



To enter Cellphone Mode, simply long-press the central button for 2-3 seconds. In this mode, you'll detect frequencies across popular bands like LTE800, LTE2600, GSM900, GSM1800, WCDMA2000, and Wi-Fi 2400.



You can adjust the signal strength by pressing the central button up or down. As you can see on picture above, sensitivity is at maximum (Max).





HS-D8000 Plus Wideband Mode Example:

In wideband mode, the device can detect wireless signals ranging from 0 to 10 GHz. As you get closer or further from devices in a room, it also shows signal strength on screen.







Hawksweep HS-D8000 Plus Handheld RF detector and Digital Frequency Counter FAQs

Can the HS-D8000 Plus detect mobile phone signals?
Indeed, the HS-D8000 Plus is equipped to identify signals from mobile phones, covering a range of frequencies such as LTE800, GSM900, GSM1800, WCDMA2000, Wi-Fi, and Bluetooth. This capability is anchored in its cell phone signal detection mode, which is tailor-made to pinpoint unauthorized or concealed mobile devices within controlled environments.


Can the HS-D8000 Plus detect wireless cameras and microphones?
Yes, the HS-C3000 Plus possesses the ability to uncover hidden wireless cameras and microphones. It is specifically designed to find covert spying devices hidden in various objects or environments, including those operating on frequencies between 1.2G and 2.4G, which are common for such devices. This makes it a valuable tool for ensuring privacy and security.


How do you adjust the signal strength on the HS-D8000 Plus?

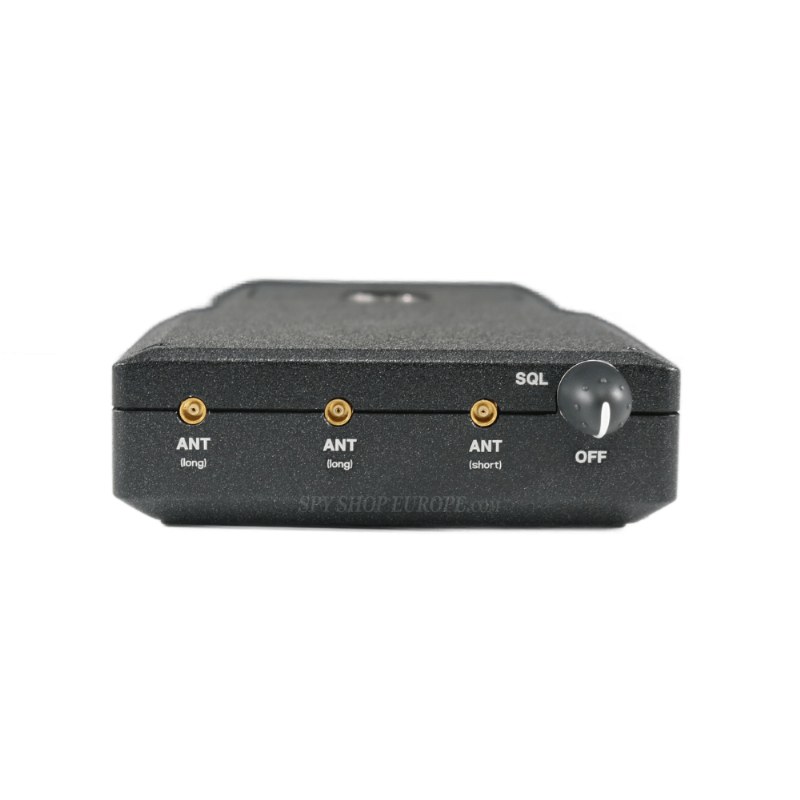

Signal strength on the HS-D8000 Plus can be adjusted via the SQL Knob. This feature allows users to fine-tune the received signal strength, enhancing the device’s sensitivity to detect weaker signals or reducing it to focus on stronger, nearby signals, thereby improving the accuracy and effectiveness of the detection process.


How does the HS-D8000 Plus display detected frequencies?

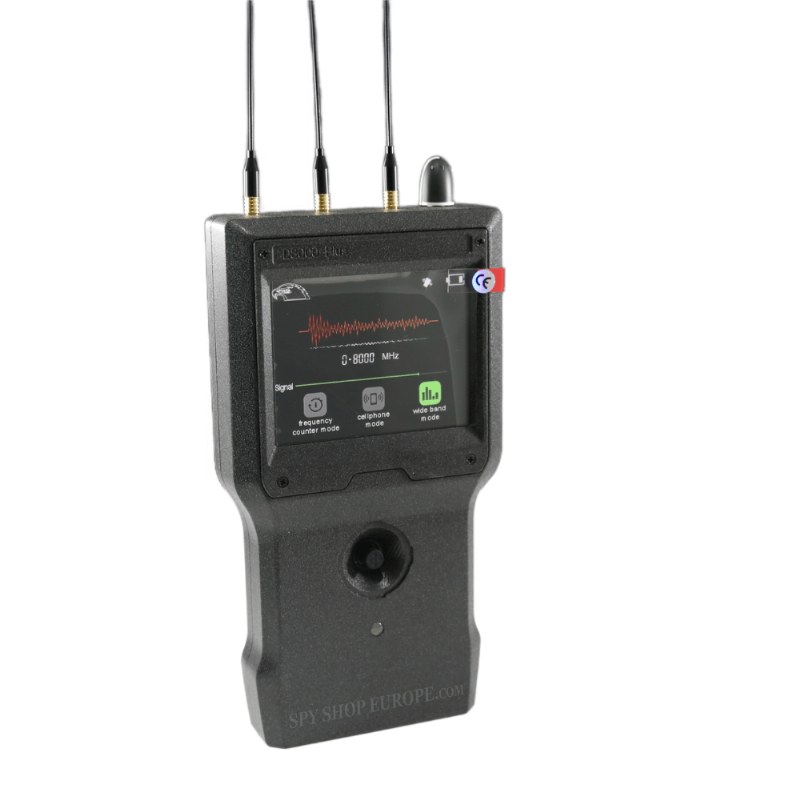

The HS-D8000 Plus is equipped with an 8-bit LCD screen that displays the precise frequency of any detected signals. When a signal is identified, users have the option to press the "hold” button, pausing the display to examine the particular frequency more closely, thereby improving the device’s utility and precision in pinpointing hidden devices. Additionally, the screen displays vital information such as battery level and signal strength, offering key details at a quick glance.


How is the HS-D8000 Plus powered?

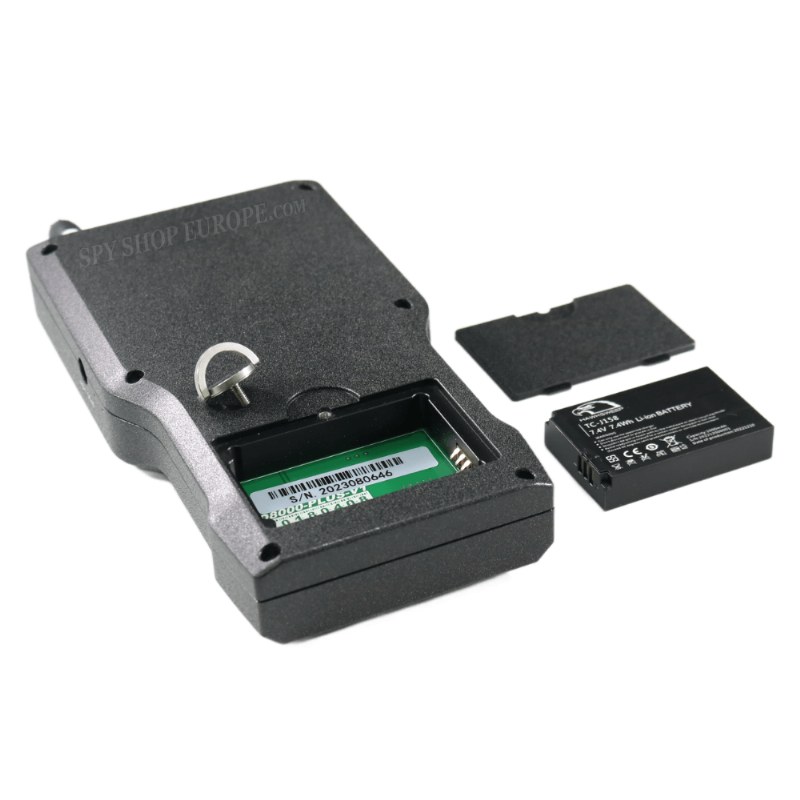

The HS-D8000 Plus operates on a lithium-ion battery, renowned for its efficient power usage. Its LCD screen indicates the battery’s condition, showing whether it is high, medium, or low, and it features an indicator for the battery’s charging status as well. This ensures users can effectively monitor and manage the device’s power.


What are the working modes of the HS-D8000 Plus?
The HS-D8000 Plus offers three operational modes to enhance its adaptability in identifying diverse frequencies and signal varieties. It includes a Recording frequency mode for searching wireless signals from 10-3000MHz, a Cell phone signal mode dedicated to the accurate detection of commonly used bands, and a Broadband mode designed for examining wireless signals in the 0-10GHz range. These modes significantly expand the device’s capability to detect a broad spectrum of frequencies and signal types.


What comes included in the HS-D8000 Plus package?

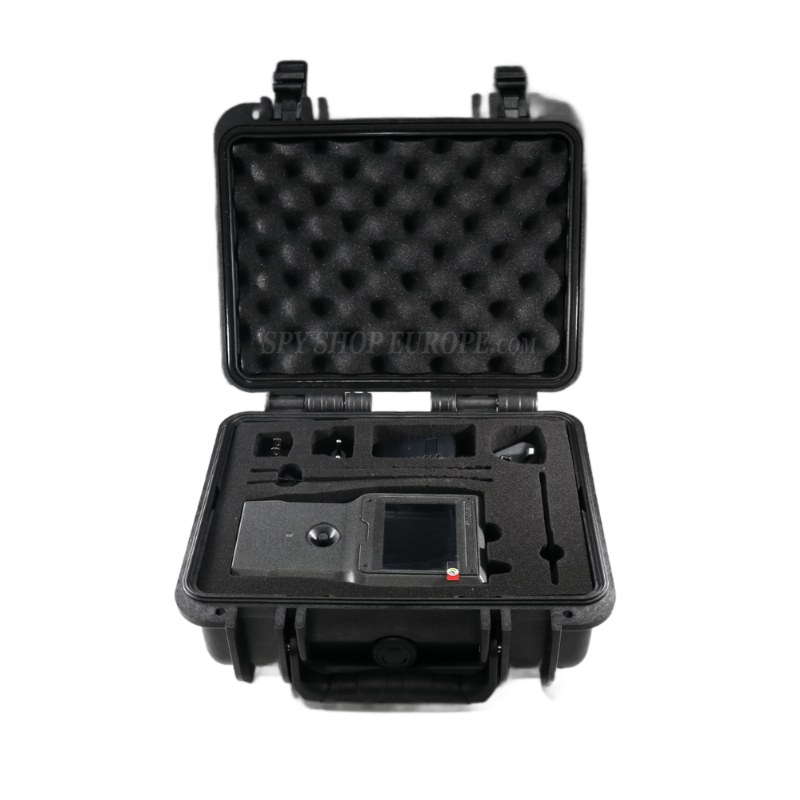

The kit comes with the primary device, the HS-D8000 Plus Handheld RF Detector, alongside three antennas tailored for various detection requirements. It also contains a charger equipped with international plug options for worldwide compatibility, a robust Pelican case for secure storage and transportation, a test transmitter, and a user manual for operational guidance. This all-inclusive set provides users with all the necessary tools to begin uncovering hidden devices right away.


What frequency range can the Hawksweep HS-D8000 Plus detect?
The Hawksweep HS-D8000 Plus is capable of identifying frequencies between 10 MHz and 10 GHz, enabling it to detect a broad array of digital and analog signals emanating from devices like audio and video gear, smartphones, and wireless cameras. This extensive frequency coverage renders it exceptionally proficient in uncovering concealed surveillance equipment.


What type of alarms does the HS-D8000 Plus have?
The HS-D8000 Plus offers various alert types, such as audible and vibration alarms, to notify users about detected signals, allowing for prompt responses. This selection between sound and vibration notifications offers adaptability depending on the setting and personal choice of the user.

For detailed info on the specifications and use of the device, please read the PDF available for download below.
