The LawMate BU-18AHD is a 2.2 MP covert button camera designed for surveillance and security applications.
Designed for the

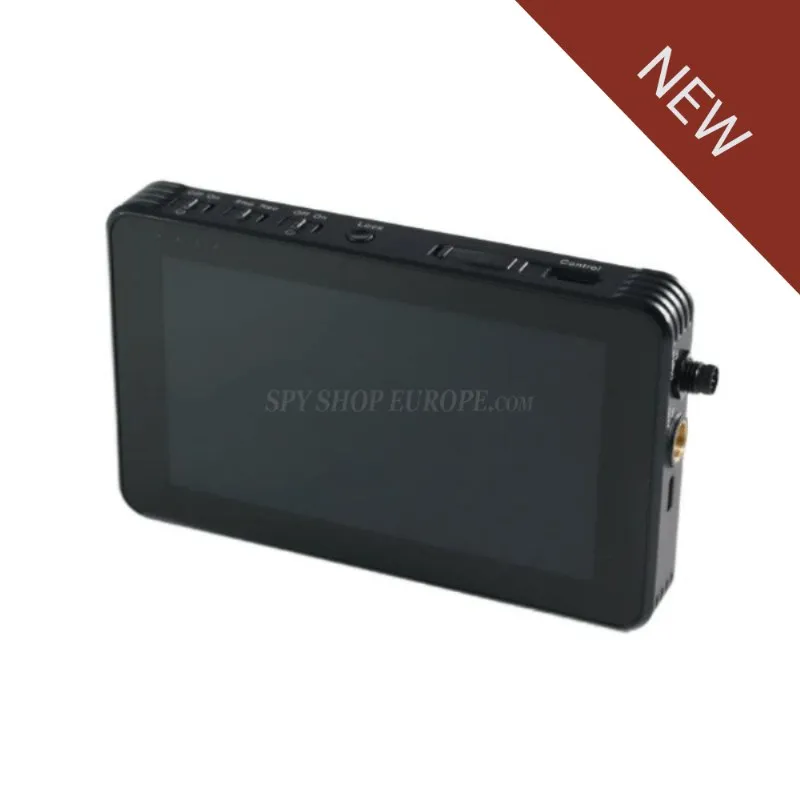

PV-1000AHD Wi-Fi DVR, the BU-18AHD provides full HD resolution (1080p) recording and low-light sensitivity of 0.01 Lux @ F1.2, making it a discreet option for capturing high-quality footage in various lighting conditions.
This pinhole-style button camera features a single-cable design that offers both video and audio recording, as it has an integrated microphone. The cables are long, ultra-thin and lightweight enhancing their flexibility and allowing you to use the camera discreetly placed in different environments, like in clothing or everyday objects.

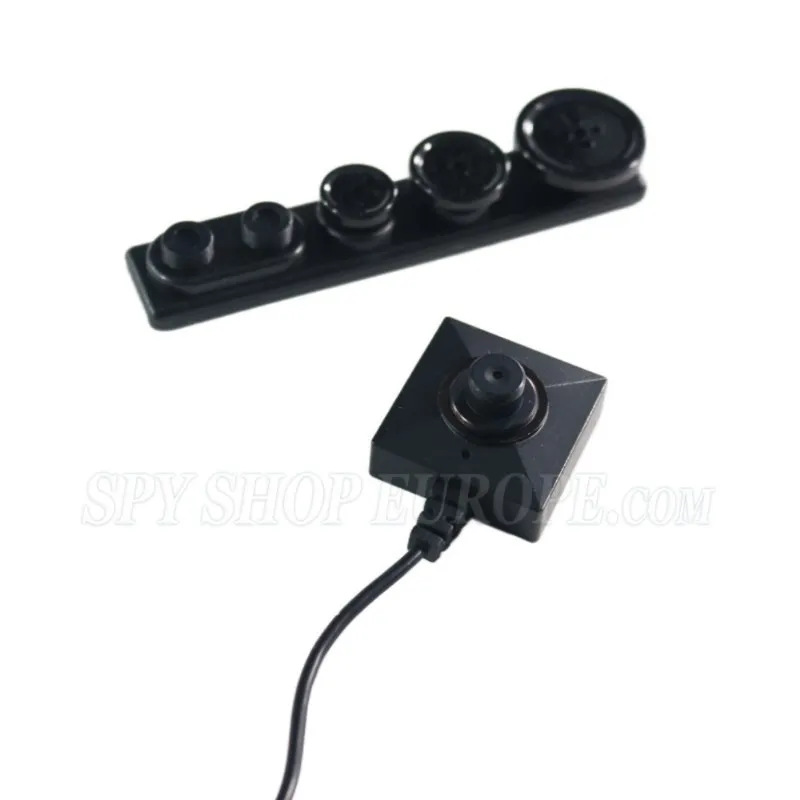

The AHD camera also comes with a set of buttons and screws, 3M double-coated tape, and DIY lens cover button to assist in installing the camera to your needs.
BU-18AHD Main Features:
- Full HD 1080p resolution
- Compatible with PV-1000AHD
- 2.2 MP progressive CMOS sensor for high-quality imaging
- 0.01 Lux for recording in low-light conditions
- Compact and lightweight design (18g) for easy concealment
- Auto electronic shutter adjustment for optimal exposure in different lighting conditions.
- Audio and Video recording
- Includes a button and screw kit
BU-18AHD Full Specifications:
Video Resolution: 1080P
Sensor Resolution: (H)1945 × V(1109)
Pixel Size: 2.07M
Digital Picture Resolution: (H)1945 × (V)1109
CMOS Camera Module
Built-in Image Sensor: Progressive 1/2.8 inch
Illumination Sensitivity: 0.01 Lux @ F1.2, AGC ON
Lens F/No: F2.0
Focal Length: 4.3mm
Angle of View: 78.2°
Depth of Field: 30 cm ~ ∞
Electronic Shutter: Auto
Video Output: AHD 1080P 30fps
Power Supply Voltage: DC 5 V ± 5%
Power Supply Current: 220mA
Physical
Operating Temperature: -10℃ ~ 60℃
Operating Humidity: 20 ~ 90%
Storage Temperature: -30℃ ~ 80℃
Dimension: 25 × 25 × 1.7mm
Weight: 18g
BU-18AHD FAQs
What DVR models is the BU-18AHD compatible with?
The BU-18AHD is designed specifically for use with the LawMate PV-1000AHD DVR. It connects seamlessly to this DVR via a single cable for both video and audio transmission.
Does the BU-18AHD record audio as well as video?
Yes, the BU-18AHD includes an integrated microphone, allowing it to capture synchronized audio along with video through its single-cable connection to the DVR
Can the BU-18AHD be used in low-light conditions?
Yes, the camera has a low-light sensitivity of 0.01 Lux @ F1.2 with AGC (Automatic Gain Control) ON. This allows for effective recording in dimly lit environments.
What is included with the BU-18AHD camera?
The camera package includes a set of interchangeable buttons and screws, 3M double-coated tape, and a DIY lens cover button to help you customize the camera’s concealment according to your specific needs.
Is the BU-18AHD discreet and easy to conceal?
Yes, the camera has a compact and lightweight design, weighing only 18g. Its ultra-thin cable makes it easy to discreetly place in clothing or objects for covert surveillance.
Does the BU-18AHD require external power?
No, it receives power directly from the DVR (such as the PV-1000AHD) through the same cable used for data transmission, eliminating the need for separate power supplies.
What is the video resolution of the BU-18AHD?
The camera records in Full HD 1080P resolution (1920x1080 pixels), providing clear and detailed video quality suitable for professional surveillance tasks.
What is the angle of view for the BU-18AHD?
The camera offers a 78.2° field of view, which provides a balanced perspective for capturing scenes without significant distortion.
Notes:
For more information, please study the PDF files available for download below.
24 months warranty
