The LawMate BU-19+ Button Camera is a CMOS camera
designed for covert use with LawMate PV-500 models with analog camera input.
This
covert camera provides easy installation with standard video/audio analog input
and is compatible with LawMate PV-500 models that support analog camera input. The currently supported model in question is
PV-500ECO2.
BU-19+
CMOS Button camera comes in two available versions: NTSC or PAL Video Systems.
It
also features an external microphone, and the built in image sensor is SONY
1/2.8 Starvis Sensor that provides video quality of 520 TV lines, has a
50-degree angle of view, and 0.01 Lux low-light
recording capability.
LawMate BU-19+ comes with a
supplied button set for disguising the camera while recording.
LawMate BU-19+ Main Features:
- Miniature,
button design for covert operations
- Low
light recordings with min. illumination of 0.01 Lux
- External
microphone
- Available
in 2 versions: NTSC or PAL
- Easily
installed with standard analogue
jack
- Compatible
with PV-500ECO2
LawMate BU-19+ Full Specifications:
Built-in
Image Sensor: SONY 1/2.8 Starvis Sensor
Effective Picture Elements: NTSC: 720H x 480V , PAL:720H x 576V (H*V)
Frequency: NTSC: 15.734KHz(H), 59.94Hz(V); PAL: 15.625KHz(H), 50Hz(V)
Horizontal Resolution: 520 TV lines
Minimum Illumination: 0.01LUX @F2.0
Angle of View: 50°
S/N Ratio: More than 45dB
Auto Electronic Shutter: NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s
Gamma Characteristic: 0.45γ
Gain Control: Automatically
White Balance: Automatically (2300°K~8600°K)
Synchronous System: Negative sync. Internal
Video Output: 1 Vp-p Composite Video / 75 Ohms.
Power Supply: DC 5V / 150 mA
Operating Temp.: -10°C to 50°C (14°F to 122°F)
Dimensions: 24.8mm(L) *24.8 mm (W) * 17 mm(H)
BU-19+ FAQs

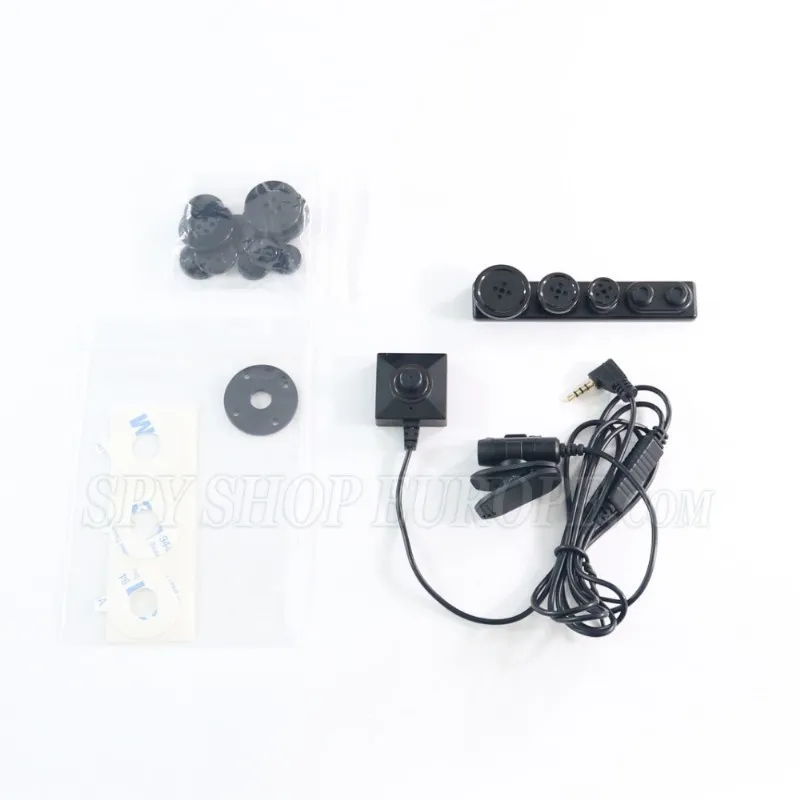

What is included in the BU-19+ CMOS button camera
kit?
The
BU-19+ button camera kit includes the camera itself, a button kit to disguise
the camera, DIY lens cover, and an external microphone for audio recording. The
button kit allows the camera to be hidden in plain sight, making it ideal for
covert surveillance. This setup is designed to be user-friendly and easily
integrated into clothing or other fabric materials.
Is the BU-19+ suitable for night-time
surveillance?
Yes,
the BU-19+ is suited for night-time
surveillance due to its low-light recording capabilities, with a minimum illumination
of 0.01 Lux.
What video formats does the BU-19+ support?
The
BU-19+ supports either NTSC or PAL video formats, providing flexibility for various recording devices.
Is the BU-19+ camera easy to install?
The
BU-19+ features a standard analog jack for easy plug-and-play installation,
making it simple to set up without any specialized technical knowledge.
Does the BU-19+ come with an external microphone?
Yes,
the BU-19+ includes an external microphone that enhances audio, allowing for
sound alongside your video recordings.
What is the angle of view for the BU-19+ camera?
The
BU-19+ has an angle of view of 50 degrees.
What is the operating temperature range of the
BU-19+?
The
camera operates effectively in a temperature range of -10°C to 50°C (14°F to 122°F), making it suitable for
various environments.
Is the BU-19+ suitable for outdoor use?
While
the BU-19+ can function outdoors, it's essential to ensure that it's protected
from direct exposure to harsh weather conditions to maintain its performance
and longevity.
Can I use the BU-19+ with other LawMate devices?
Yes,
the BU-19+ is compatible with LawMate PV-500 models that support analog camera
input, including the PV-500ECO2.
Where can I use the BU-19+ camera?
The
BU-19+ is ideal for a range of applications, including law enforcement, private
investigations, and home security, thanks to its discreet design.
Notes:
For more information please study the PDF files available for download below.
24 months warranty
>>Download detailed specifications (PDF)<<
