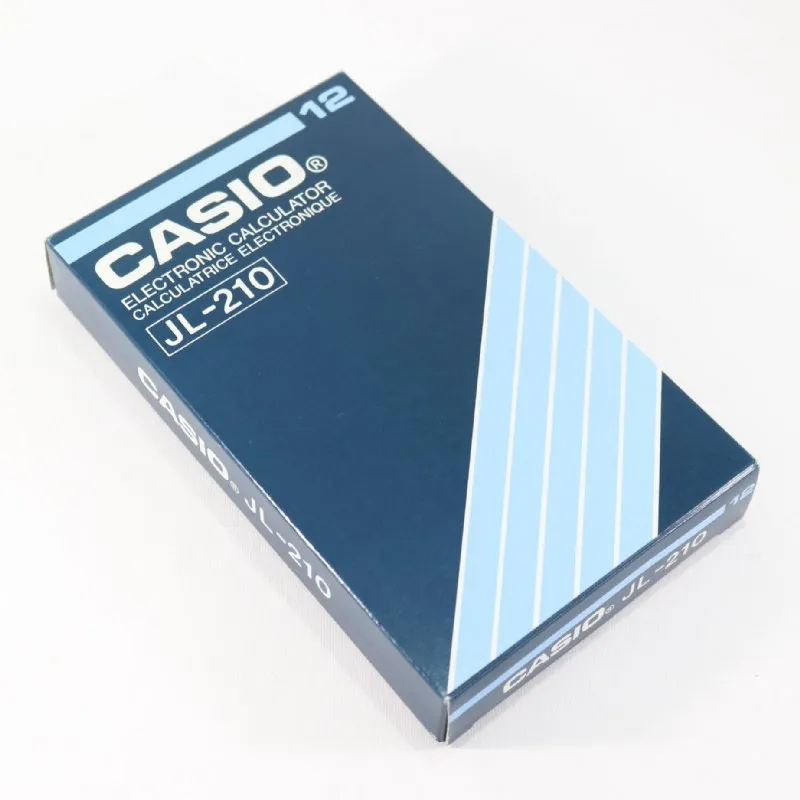

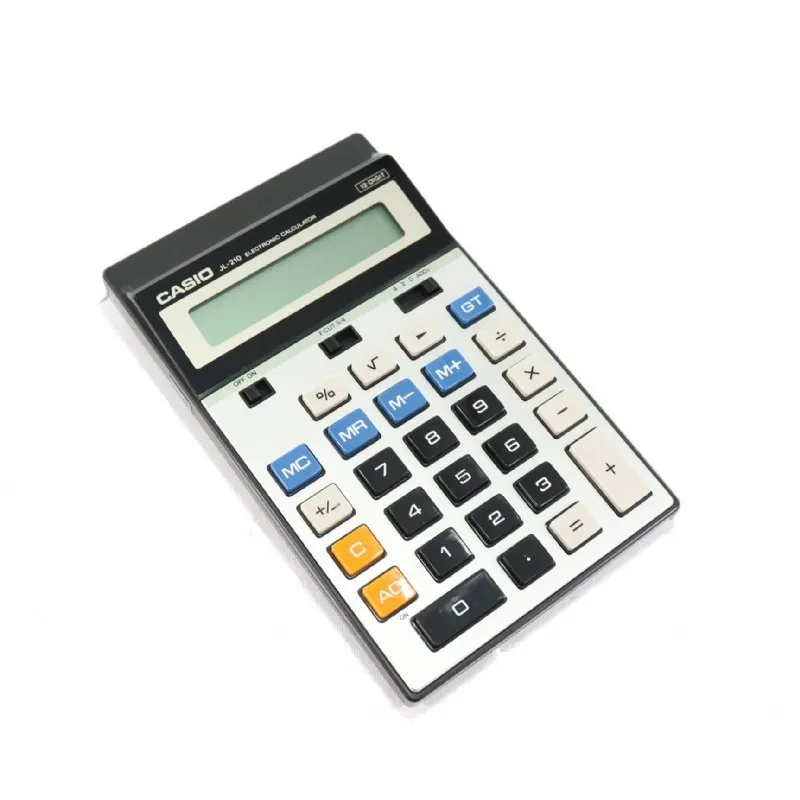

Lawmate CL-10 Covert CCD camera disguised as standard CASIO calculator.



Fits nicely in office and home environments. The covert camera is hidden at the front forward part of the calculator. This is the 1.2 GHz PAL model.



LawMate CL-10 Main Features:

• Build-in 4.3mm pinhole lens
• 78 Degrees Angle of view
• The World Standard most popular CASIO calculator design
• 1/4 Panasonic DSP Color CCD Sensor Camera
• Using Disposable Alikeline 9V Batt. able to be replaced easily
• Phase Lock Loop (PLL) Circuitry Embedded
• 450 TV lines, 43,000 pixels, 1.5Lux F2.0
• Unique Vibration Alert for low-Battery Status

- 3 CH’s 1.2 GHz / NTSC
- 4 CH’s 2.4 GHz / NTSC
- 3 CH’s 1.2 GHz / PAL - this product
- 4 CH’s 2.4 GHz / PAL



Note: only the 1,2 GHz PAL version is available.



Lawmate CL-10 Covert CCD camera Specifications:

Resolution: 450 TV Line
Min. Illumination: 1.5 Lux/ F2.0
Angle of View: 78 °
Dimensions(Incld Lens) : 165* 100* 28 mm
Frequency : 1.2Ghz or 2.4Ghz
Video: NTSC or PAL



With the camera, comes a receiver that can be connected to any PV series DVR allowing wireless transmission and recording.

The DVR has to be bought separately. If you have an older PV series DVR you can also use it with this product. This includes the PV-500 EVO2, PV-500 EVO2U, PV-1000 Touch5, PV-1000 Touch5U etc.





Are there different variants of the LawMate CL-10?
Yes, there are different variants including 3 CH’s 1.2 GHz / NTSC, 4 CH’s 2.4 GHz / NTSC, 3 CH’s 1.2 GHz / PAL, and 4 CH’s 2.4 GHz / PAL. However, only the 1.2 GHz PAL version is available.


Can the LawMate CL-10 be connected to a DVR for recording?
Yes, the camera comes with a receiver that can be connected to any PV series DVR for wireless transmission and recording. The DVR must be purchased separately.


Can the RF wireless transmitter be sold in the EU?
No, the RF wireless transmitter that is part of the LawMate CL-10 cannot be sold to customers inside the EU. It does not comply with the R&TTE Directive (1999/5/EC), and purchases from within the EU will not be processed.


Is the LawMate CL-10 still available for purchase?
No, the LawMate CL-10 is end of line and no longer available for purchase. Customers interested in similar products are encouraged to check related products at the end of the page or contact [email protected] for alternatives.


What are the main features of the LawMate CL-10?
The main features include a build-in 4.3mm pinhole lens, 78 degrees angle of view, a 1/4 Panasonic DSP Color CCD Sensor Camera, and a unique vibration alert for low-battery status. These features make it a sophisticated device for covert surveillance operations.


What DVR models are compatible with the LawMate CL-10?
Compatible DVR models include the PV-500 EVO2, PV-500 EVO2U, PV-1000 Touch5, and PV-1000 Touch5U, among others. This allows for flexibility in choosing a recording solution that meets specific needs.


What is the LawMate CL-10?
The LawMate CL-10 is a covert CCD camera disguised as a standard CASIO calculator. It is designed to fit seamlessly into both office and home environments, with the camera hidden in the front forward part of the calculator. This device allows for discreet surveillance without drawing attention to its true purpose.


What is the resolution and sensitivity of the camera?
The camera in the LawMate CL-10 has 450 TV lines, 43,000 pixels, and a sensitivity of 1.5Lux F2.0. This allows for clear video capture even in low-light conditions.


What type of battery does the LawMate CL-10 use?
The LawMate CL-10 uses a disposable Alkaline 9V battery that can be easily replaced. This ensures that the device can be used for extended periods without the need for complex recharging procedures.



For more information, take a look at the specifications PDF available for download below.

24 months warranty.
