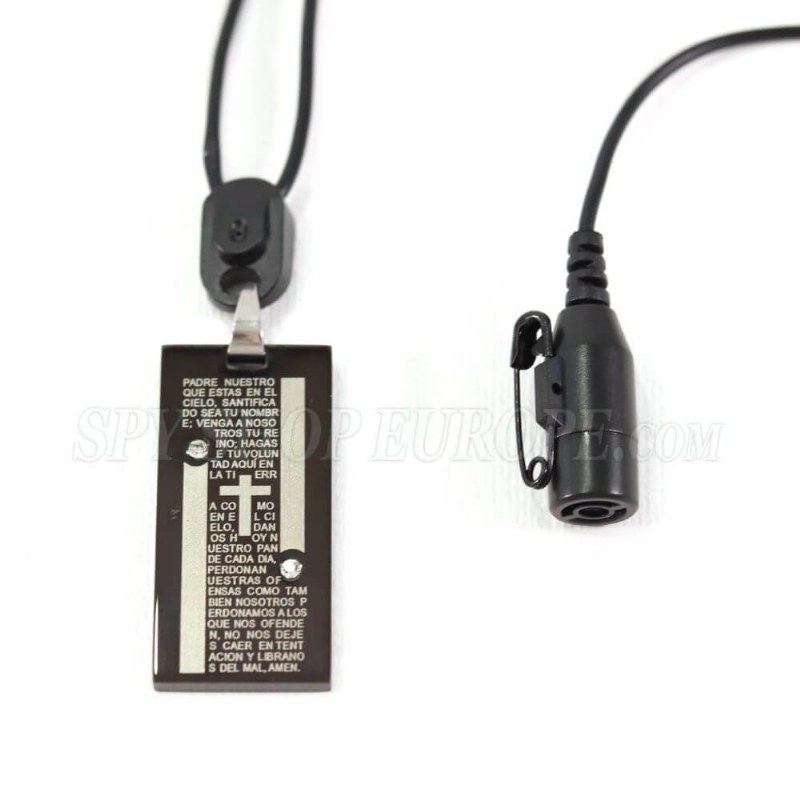

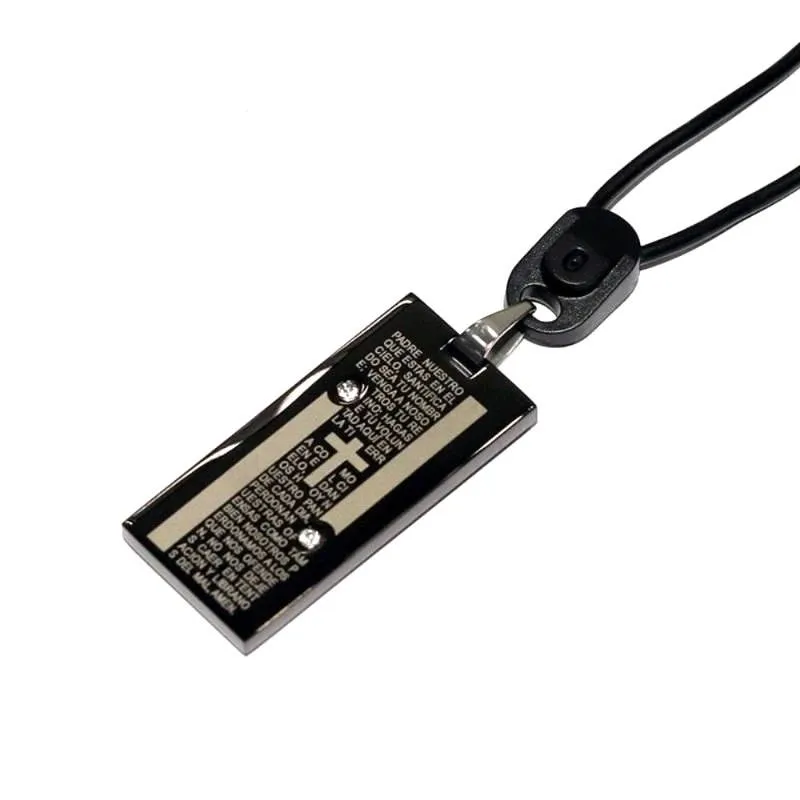

The LawMate CM-NL10 Necklace Camera is designed as the perfect miniature video camera for covert missions.



LawMate CM-NL10 Main Features:

• Miniature video camera in a necklace design
• Easy change of pendants for personalization
• CMOS sensor with high resolution and low power consumption
• Standard audio and video analog input
• Compatible with common AV devices
• NTSC/PAL selectable

LawMate CM-NL10 Full Specifications:

Video Resolution: 480 TV Line
Digital Picture Resolution: 640x480
Built-in Sensor: 1/13” CMOS Sensor
Illumination: 4V (Lux.sec)
Lens F/No: 2.8
Focal Lens: 0.99 mm
Dynamic Range: 66dB
AGC: Auto
S/N Ration: 34dB
Shutter Type: Electronic Shutter
Angle of View: 60°±2°
Operating Temperature: -20°C ~ +60°C
Operating Humidity: 30% ~ 90% Rh
Video System Switch: NTSC/PAL
Power Input: NTSC/PAL
Power Consumption: 190±5mA
Frame Rate:
  a) NTSC: 30 Frame
  b) PAL: 25 Frame
Weight: 30g



Are there any older DVR models compatible with the LawMate CM-NL10?
Yes, the LawMate CM-NL10 is also compatible with older DVR models such as the PV-500L2, PV-1000Touch, and PV-500EVO. This compatibility ensures that users with existing LawMate DVR systems can integrate the CM-NL10 into their setups without needing new equipment. It provides flexibility and cost savings for users who wish to upgrade or expand their surveillance capabilities.


Can I find a manual for the LawMate CM-NL10 online?
Yes, a quick manual for the LawMate CM-NL10 can be found online at https://spyshopeurope.xyz/wp-content/uploads/2023/12/CM-NL10guide-1.pdf. This manual provides essential information on the use and maintenance of the device. For more detailed specifications, another document is available at https://spyshopeurope.xyz/wp-content/uploads/2023/12/CM-NL101-1.pdf.


Can I personalize the LawMate CM-NL10 Necklace Camera?
Yes, you can easily change the pendants on the LawMate CM-NL10 Necklace Camera for personalization. This feature allows users to adapt the camera to different settings or preferences. Changing pendants helps the device blend in more seamlessly with the wearer’s attire.


Does the LawMate CM-NL10 support both NTSC and PAL recording options?
Yes, the LawMate CM-NL10 supports both NTSC (30 fps) and PAL (25 fps) recording options. This versatility allows the camera to be used in different regions worldwide without compatibility issues. Users can select the appropriate standard based on their geographic location or specific needs.


Is the LawMate CM-NL10 compatible with other devices?
The LawMate CM-NL10 is compatible with LawMate PV-500 and PV-1000 models that support analog camera input. This includes models like the PV-500 ECO2 and the PV-1000 EVO3 DVRs. Compatibility with these devices allows for easy integration and use in various surveillance setups.


What accessories come with the LawMate CM-NL10?

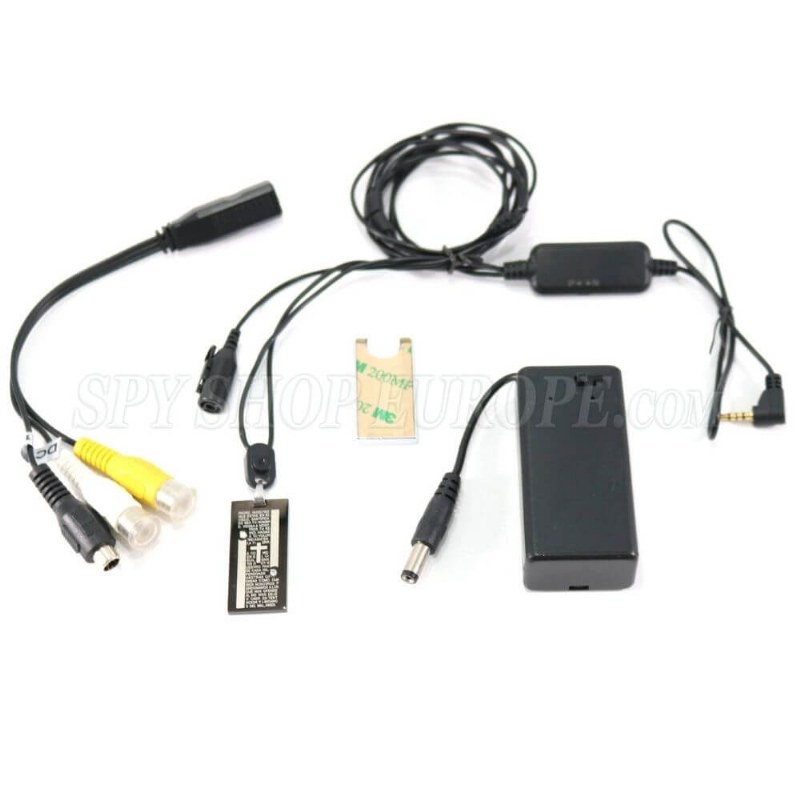

The package of the LawMate CM-NL10 includes all necessary accessories, such as switching cables and a 9V battery holder. These accessories ensure that users have everything they need to start using the camera right away. The inclusion of these items enhances the overall value and convenience of the product.


What is the power consumption of the CMOS sensor in the LawMate CM-NL10?
The CMOS sensor in the LawMate CM-NL10 enables very low power consumption. This feature is crucial for extending the operation time of the device, making it suitable for long-duration covert operations. Low power consumption is a significant advantage in surveillance equipment, where uninterrupted operation is often required.


What is the resolution of the LawMate CM-NL10 Necklace Camera?
The LawMate CM-NL10 Necklace Camera has a 480 TV Line resolution. This high resolution ensures clear video capture for covert operations. The camera’s design allows for discreet recording in various environments.


What type of sensor does the LawMate CM-NL10 use?
The LawMate CM-NL10 uses a CMOS sensor. This sensor type is known for high resolution and low power consumption, extending the device’s operational time. It’s ideal for prolonged covert surveillance missions.





Note:

For detailed info on the specifications and use of the device, please read the PDFs available for download below.
