LawMate
LawMate CMD-BU20U
169,00  EUR  ex VAT
211,25  EUR  inc VAT

End of line
14 day refund
24 month warranty

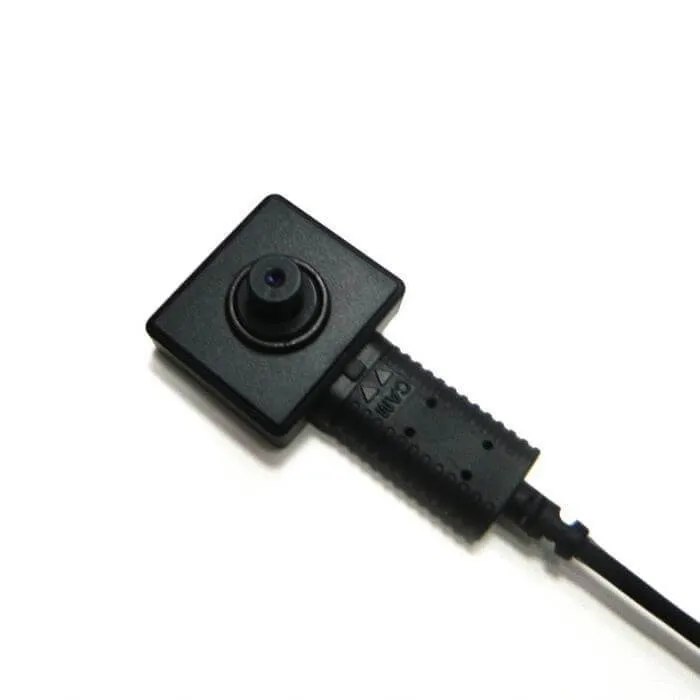

LawMate CMD-BU20U is the Full HD camera that makes the best use so far of LawMate premium PV-500 EVO2U and PV-1000 Touch5U digital video recorders.

This product is end of line and no longer available. If you are looking for a product with the same or similar specifications, please see related products at the end of the page or contact us directly at [email protected]



New CMOS 1/2.8” Sony sensor provides over 1200 TV line resolution together with 1920 X 1080 digital output.

The new cable standards allow the camera to have u faster signal to the DVR, and that the low light adjustment is smoother.
Also, the cables are a bit longer.

 Alternative model:

 The CMD-BU20LX camera. For now compatible only with PV-1000 EVO3 DVR




Main CMD-BU20U features:

  • 1200 Tv line+  CMOS sensor
  • 1080p digital resolution output
  • Integrated microphone
  • WDR (Wide Dynamic Range) support
  • High sensitivity (can record in low light situations)
  • NTSC/Pal support

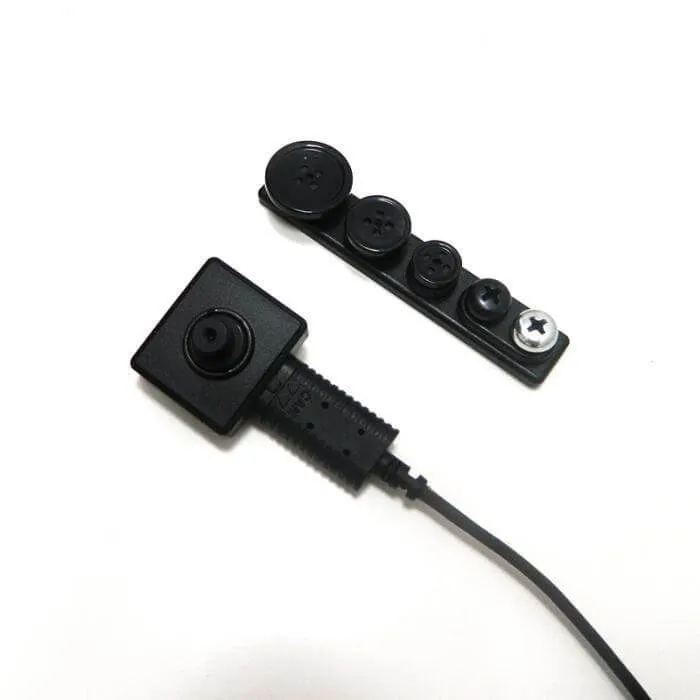

  • Interchangeable buttons/screws

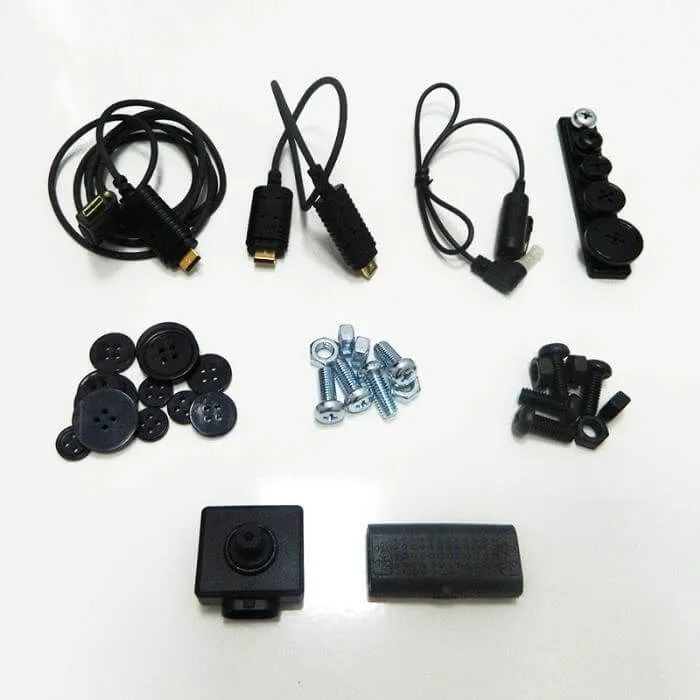

  • External AGC microphone (part of standard accessories)



Full CMD-BU20U Full Specifications:

Video resolution: >1200 TV Line
Pixel size: 2.8um(H) x 2.8um(V)
Digital picture output: 1920 X 1080 (1080P)
Video System support: Both NTSC and PAL
Image sensor type: Progressive 1/2.8” Sony CMOS
Illumination sensitivity: 0.08 Lux / F2.0 (50 IRE)
Lens F/No: F2.0
Lens Diameter: 4.3mm
Angle of View: 78°
Depth of Field: 50 cm - ∞
Electronic Shutter: 1/8 ~ 1/30,000
Video output: RAW Dana
Audio output: 2 Vp-p (Max) 10 KHz ohms Impedance
AGC: >52 db (AGC off)
S/N Ratio: 36 dB (Max)
Power Supply Voltage: DC 3.3V +/- 5%
Power Supply Current: 200 mA
Operating Temperature: -10℃ ~ 60℃
Operating Humidity: 20 ~ 90%
Storage Temperature:-30℃ ~ 80℃
Dimension: 30X30X20 mm
Weight: 10 g


CMD-BU20U Features focus:

1080P Resolution

Once again Lawmate is ahead of the pack with the first of its kind 1200 TV line digital pinhole covert camera.
This camera provides a more detailed, better quality, and clearer image that is easily comparable with larger overt surveillance solutions.


Depth of Field

This camera's ideal range is from 50 cm onwards. That makes it a perfect choice for recording people, things, situations, and scenarios and not as good of a choice for sharp recordings of a small text that must be recorded from a very close distance.

Camera high resolution will still allow recording of larger fonts on a document even from around 50 cm distance.

For a sharp recording from very small distances cameras such as CM-SG20 and CM-DC10 are better choices.


CMD-BU13LXU vs CMD-BU20U Comparison

CMD-BU13LX on the left. Better low light sensitivity of CMD-BU13LX vs Higher resolution CMD-BU20U.


Notes:


For a simple review of CMD-BU20U functions feel free to check out the manual below.

24 months warranty.

>>CMD-BU20U Quick guide (PDF)<<
>>Download detailed specifications (PDF)<<
