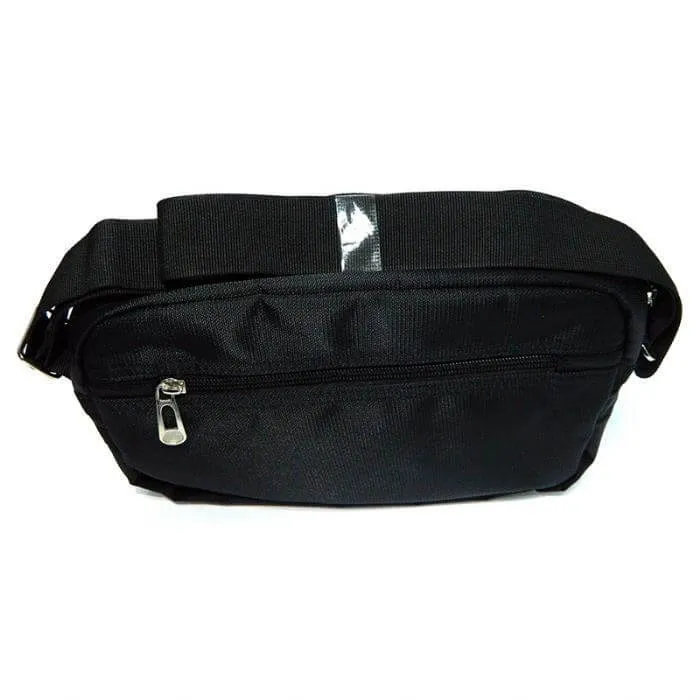

The LawMate HB-18Neo is a new digital Full HD 1080p CMOS Handbag covert camera that is compatible only with PV-500Neo & PV-500Neo Pro DVRs.
The LawMate HB-18Neo is discontinued and out of stock, however, please find here the replacement product:
LawMate PV-EG20CL Spy Glasses DVR is an HD 720P Mini DVR Camera that records directly on the SD card and is cord-free.
This lightweight 2MP covert camera can only be used with the new Wi-Fi digital video recorders. This comes with the advantage of live streaming, downloading video/photo materials, and setting up the device via the PV-Cam App (for Android and iOS smartphones).
The microphone is built-in, and it is a single cable design camera which means there will be less risk of accidental signal loss.
If you are looking for an analog Handbag camera, check out the
HB-19 (CCD, Min Illumination 0.05 Lux).
HB-18Neo Main Features:
- 2MP CMOS covert handbag camera
- 1080p, 0.03 Lux@ F2.0(50IRE) low light sensitivity
- Self-contained invisible microphone
- Single cable design
- Lightweight
- 78 degrees angle of view
- Compatible with PV-500Neo & PV-500Neo Pro
- Live streaming on your iOS / Android smartphone via PV Cam App
- Instant download of video/photo materials
>>HB-18Neo name and parts from illustration<<
LawMate HB-18Neo Full Specifications:
Built-in Image Sensor: 1/2.9" progressive CMOS Sensor
Sensor Resolution: 2000x1121
Pixel Size: 2.8um(H) * 2.8um(V)
Digital Picture Resolution: (H)1920x(V)1080
Sensor Sensitivity: 0.03 Lux @ F 2.0
Lens: F/No. F2.0
Focal Length: 4.3mm
Angle of view: 78°
Depth of View: 50 cm ~ ∞
Electronic Shutter: 1/8 ~ 1/30,000
Video Output: I2C Data
Power Supply Current: 220mA
Operating Temperature: -10℃ ~ 60℃
Operating Humidity: 20 ~ 90%
Storage Temperature: -30℃ ~ 80℃
Power Input: DC 3.3V± 5%
Dimensions: 28*8*20 (cm)
Weight: 406 g
How to use the HB-18Neo:
- The DVR needs to be turned off.
- To connect the camera to a compatible digital video recorder and plug the camera’s micro USB jack into the camera in port on the DVR.
- Make sure both the camera and the SD card are inserted in the DVR before turning the system on.
Note:
For more information on the setting up and specifications of the handbag camera, please consult the PDF files below.
HB-18Neo is not compatible with LawMate RF wireless transmitters.
24 Months Warranty.
