The LawMate PV-CHG30i covert DVR has multiple charging heads that are easily interchangeable and compatible with different types of Smartphones.
While the previous models (PV-GHG20i for Android and iOS) were only compatible with Smartphones, the PV-CHG30i can be used with Tablets which allows for a bigger screen when monitoring the live feed. Like all Lawmate IP models, it offers access to the settings, live feed, and snapshot options, from anywhere in the world with Wi-Fi / Mobile network availability.
This fully functional smartphone charger can be set up to different resolutions (1080p / 720p / WVGA) and multiple recording modes (Auto/Manual/Motion Detection) while offering the overwrite function if you can not access the location for SD Card exchange. The CDS sensor at the back of the device automatically powers on the Infra-Red feature when it is dark in a room. A 32 GB SD card is provided with the accessories.
This charger is powered directly from the power outlet, which ensures continuous recording if necessary and ease of mind as there is no battery that can run out in the middle of recording. Besides continuous monitoring of the area the PV-CHG30i is placed in, it comes with three charging heads that correspond different types and models of smartphones, so from now on you will only need one charger.
This is a truly versatile device that will adapt to your recording requirements.
LawMate PV-CHG30i Main Features:
- Wi-Fi / IP module allows you to view the live feed from anywhere in the world
- For Smartphones and Tablets
- Appears and can be used as a Smartphone charger
- Comes with multiple charging heads and fits various Smartphone types
- Multiple resolutions with; 1080p / 720p / WVGA @ 30fps
- Infra-Red feature automatically powers on when it is dark
- Included 32 GB SD card and overwrite function
- Auto/Manual/Motion Detection recording modes
- Powered by the cord (AC outlet) which allows unlimited recording time
LawMate PV-CHG30i Full Specifications:
Built-in Image Sensor: 1/2.9" progressive CMOS sensor
Sensor Resolution: 2000x1121
Sensor Sensitivity: 0.1 Lux @F 2.0
Lens F/No.: F 2.0
Focal Length: 4.3mm
Angle of View: 78.2°
Algorithm: H.264, JPEG
File Format: MOV, JPG
Video Recording Mode: Auto/Manual/Motion Detection
Infra-Red Recording Mode: Powers on automatically
Recording Capability: 1920x1080, 1280x720, 848x480
Frame Rate: Up to 30 fps
Photo Capability: 2M (1600*1200)
Wi-Fi: Built-in Wi-Fi Module(IEEE 802.11b/g/n)
Wi-Fi: Protocol TCP/IP
Memory Type: SD Card (32 GB included)
Data Interface: Mini USB 2.0
Date/Time Table: YYYY/MM/DD, HH:MM:SS
Snapshot: Recording and playback video (via smartphone)
Power Input: DC5V 3A
Recording time: 500min @ 1920x1080 resolution on a 16GB memory card before overwriting
Low light sensitivity: 0.1Lux
Dimensions: 75*78*72 mm
LawMate PV-CHG30i Feature Focus:
Upgraded version of long-year bestsellers - now with multiple charging heads
The PV-CHG20i for Android and iOS are well-known products to Lawmate users, and now the new upgraded version that is compatible with new smartphone models is available. There is no more need to buy different chargers for different types of Smartphones, and you can use them for multiple smartphones if you have work as well as a private phone.

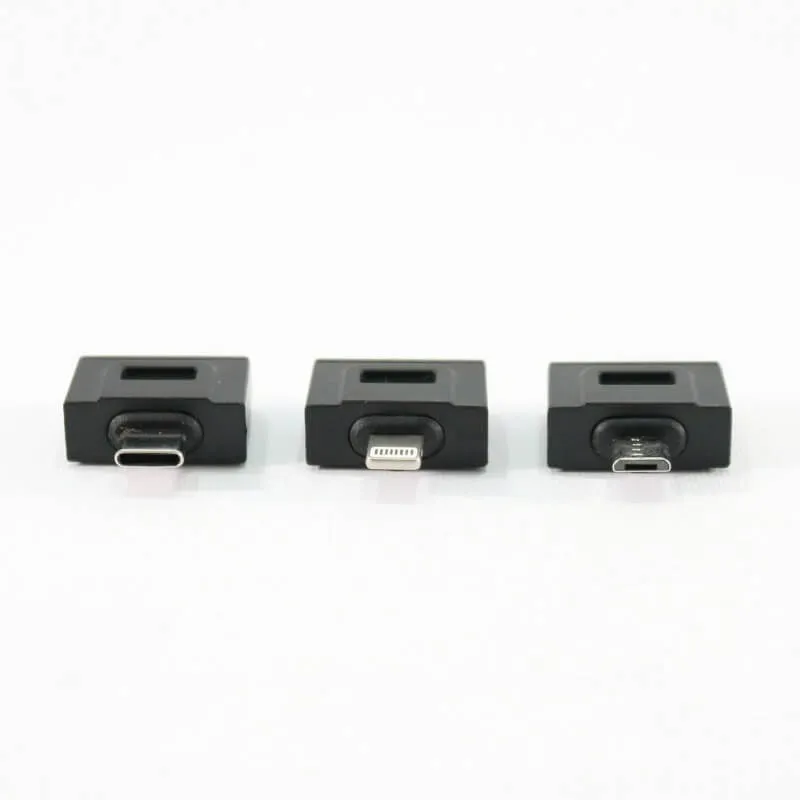

>>PV-CHG30i comes with 3 different charging heads; type-C for new Android phones, the (lightning) charger for iPhones, and the micro USB for old android phones.<<
Perfect for home and office surveillance
The PV-CHG30i is powered by a power outlet. No batteries are needed for this covert piece, and you do not have to worry about the battery status. Paired with the overwrite function and the ability to access the settings via smartphone, you do not even have to be physically present to access the live feed, format the SD card, etc. Meanwhile, it remains covert and functional as various Smartphones can be charged with the device.
For Smartphones and Tablets
The previous models were only Smartphone compatible, now you can enjoy the perks of a bigger screen by using your Tablet to oversee the live feed.
Infra-Red automatically available

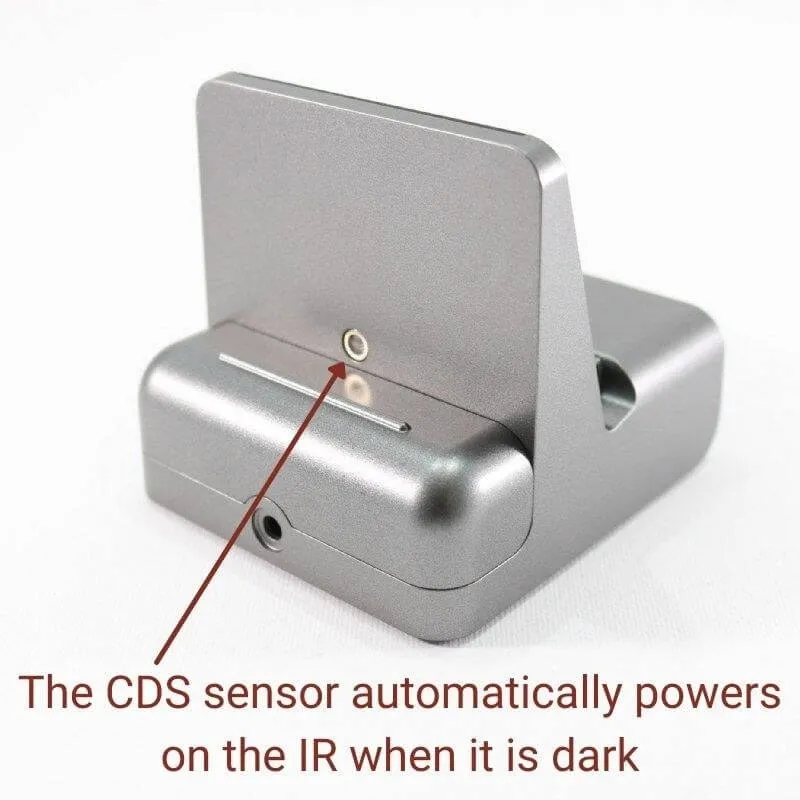

The CDS sensor which is located at the back of the device reacts to the amount of light that is present and automatically powers on the Infra-Red recording mode. You can see the comparison between the PV-CHG30i and the previous PV-CHG20i models below. The low-light performance images, provide in our experience a better overview of the low-light performance than the lux measurements in the specifications.
Wi-Fi / IP Module
When connected via IP, the device will be accessible from anywhere in the world with Wi-fi or a Mobile network connection on your smartphone.
PV-CAM iOS and Android apps for PV-CHG30i:
How to use the PV-CHG30i:
- Choose the correct charging cable for your smartphone
- Plug the 5V wall adapter into an electrical outlet

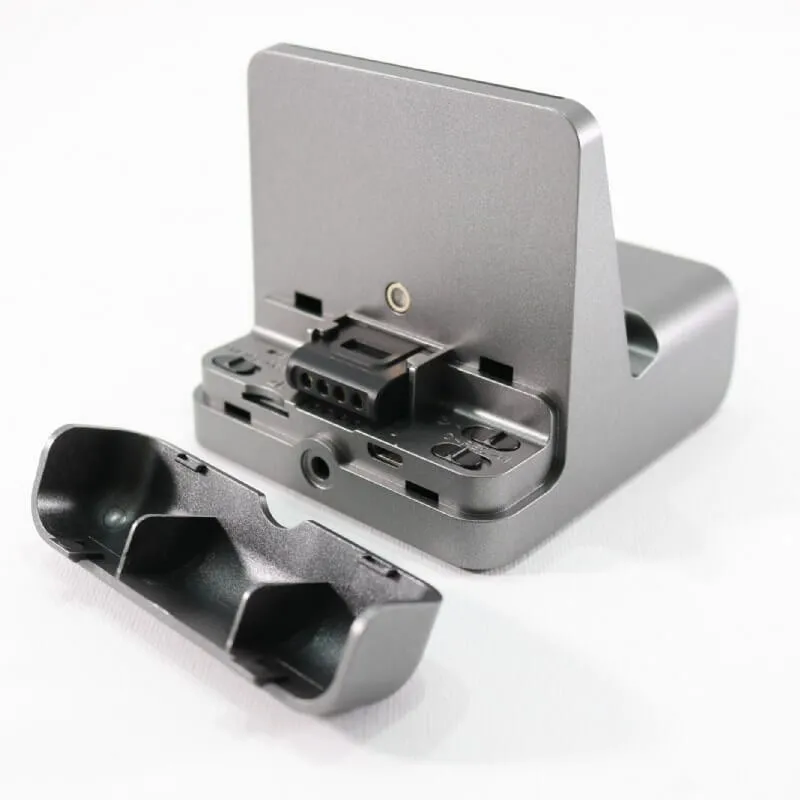

- Open the back cover of the device and insert the provided 32 GB SD card in the SD card slot
- Turn the Wi-Fi on, also under the back cover of the device, number 10 in the names and parts illustration above
- Press the On/Off button
- After this the system initialization will take about 40 seconds when the red LED light turns on, it indicates that the recording mode is On
- The blinking orange LED indicates that the device is connected to Wi-Fi and ready for P2P connection
- Take a look at the IP user manual below with detailed instructions on how to set it up, or take a look at a video here.
PV-CHG30i FAQs
Can the LawMate PV-CHG30i charge different types of smartphones?
Yes, the LawMate PV-CHG30i comes with multiple charging heads, making it compatible with various types and models of smartphones. This versatility eliminates the need for multiple chargers, as it can accommodate both work and personal phones. The device ensures that users have a convenient charging solution while also serving as a covert surveillance tool.
Does the LawMate PV-CHG30i support live feed viewing from anywhere?
Yes, thanks to its Wi-Fi / IP module, the LawMate PV-CHG30i allows users to view the live feed from anywhere in the world. This feature requires a Wi-Fi or mobile network connection, enabling remote access to the camera feed through a smartphone app. It offers peace of mind by allowing users to monitor their space in real-time, regardless of their location.
How does the infrared feature work on the LawMate PV-CHG30i?
The infrared feature on the LawMate PV-CHG30i is automatically activated in low-light conditions, thanks to the CDS sensor at the back of the device. This feature allows the device to capture clear video footage even in the dark, enhancing its effectiveness as a surveillance tool. The automatic activation of the infrared feature ensures that the device is always ready to record, regardless of the lighting conditions.
How does the LawMate PV-CHG30i work as a surveillance device?
The LawMate PV-CHG30i works by recording video through a hidden camera while functioning as a regular smartphone charger. It is equipped with Wi-Fi/IP module for live feed access, supports multiple resolutions and recording modes, and includes an overwrite function for continuous recording. The device is ideal for covert surveillance in homes or offices without arousing suspicion.
How is the LawMate PV-CHG30i powered?
The LawMate PV-CHG30i is powered directly from the power outlet via a cord, allowing for unlimited recording time. This design ensures continuous operation without the worry of battery depletion, making it reliable for extended surveillance periods. The direct power supply offers convenience and peace of mind, as there is no need to recharge or replace batteries.
What are the recording modes available on the LawMate PV-CHG30i?
The LawMate PV-CHG30i offers Auto, Manual, and Motion Detection recording modes. These options provide flexibility in surveillance, allowing users to choose the most suitable recording mode for their needs. Whether for continuous monitoring or capturing footage only when motion is detected, the device adapts to various surveillance requirements.
What is the LawMate PV-CHG30i?
The LawMate PV-CHG30i is a covert DVR that functions as a universal smartphone charger with interchangeable charging heads for various smartphone types. It is an upgraded version that supports not only smartphones but also tablets, offering live feed monitoring via Wi-Fi or mobile network from anywhere in the world. This device allows for continuous recording with multiple resolution settings and recording modes, including motion detection.
What is the maximum resolution supported by the LawMate PV-CHG30i?
The LawMate PV-CHG30i supports up to 1080p resolution, providing high-quality video footage. Users can also select 720p or WVGA resolutions depending on their needs or storage capacity. The high-resolution option ensures that the video captured is clear and detailed, which is crucial for identifying individuals or activities in the recorded footage.
What is the storage capacity of the LawMate PV-CHG30i?
The LawMate PV-CHG30i includes a 32 GB SD card for video storage, and it also features an overwrite function for continuous recording. This storage capacity allows for significant amounts of video footage to be stored, and the overwrite function ensures that the device can keep recording even when the storage is full by replacing old footage with new recordings. This is particularly useful for long-term surveillance without the need for frequent SD card management.
Note:
It is very important to enter the exact same router name as stated on your device when configuring it in the App. For more information regarding the PV-CHG30i please consult the PDF specifications below.
Important IP setup Tip - Obligatory deleting of the device from the Device Management section of the App if you wish to switch phones. Otherwise, the device will be linked to the phone via the server and you will not be able to connect to the IP via other smartphone/s.
New info on SSID: it turns out that IP products (such as this one) cannot change the SSID name. Wi-Fi products only can change the SSID name. However, once connected to the IP the device's name is the same as your router name.
24 months warranty.
>>Download detailed specifications (PDF)<<
