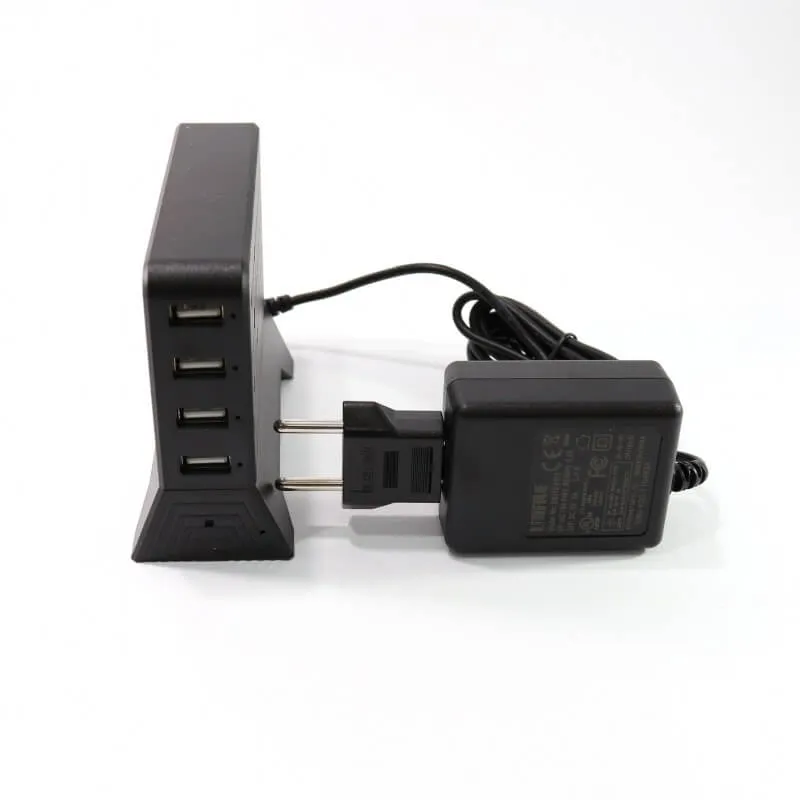

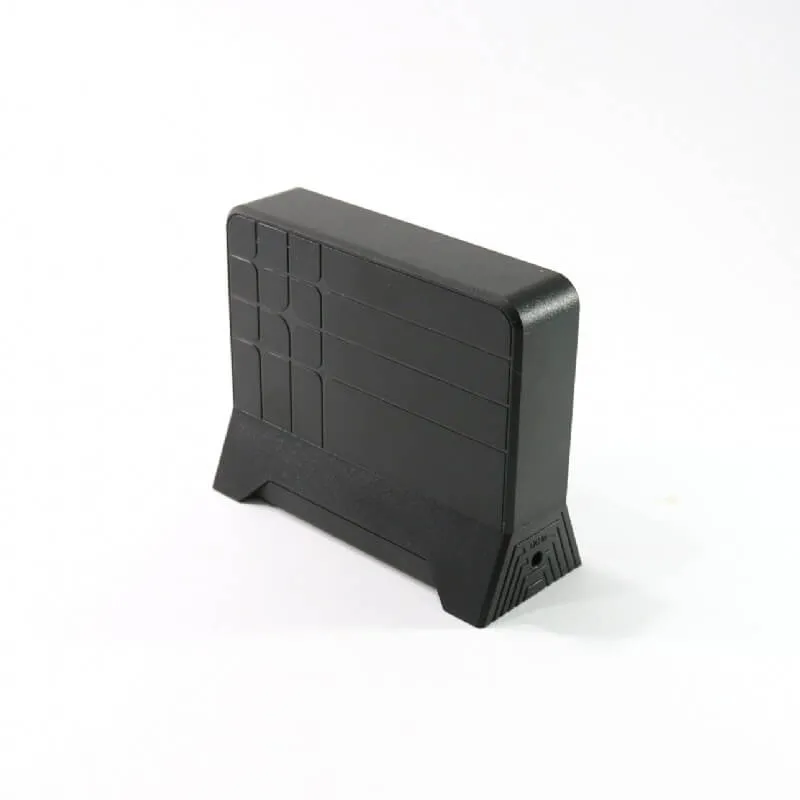

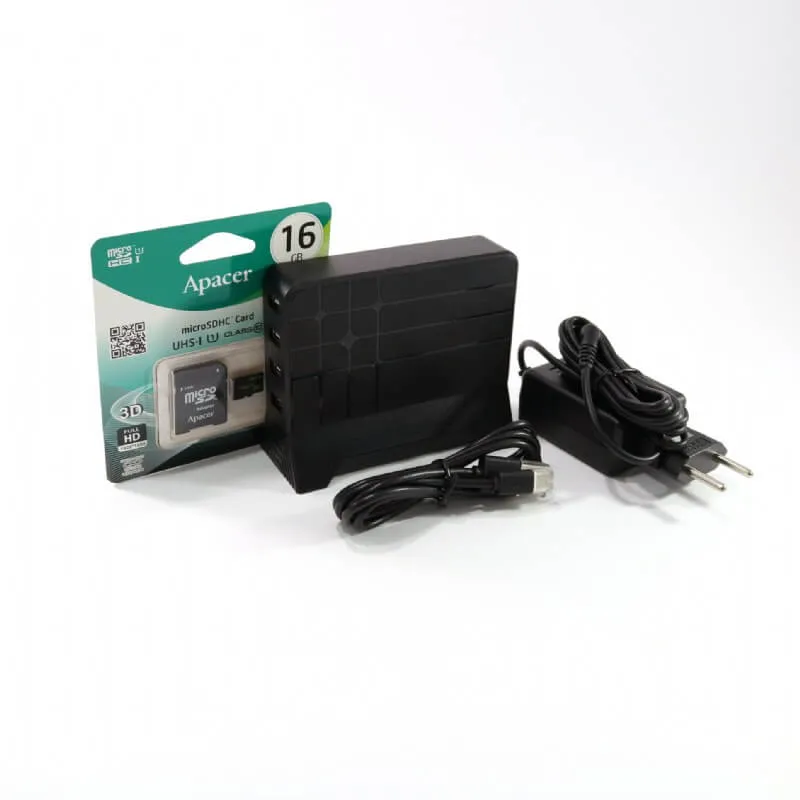

LawMate PV-CS10i is a 1080P WI-FI / IP Covert DVR in Functioning USB Charging Station.
The PV-CS10i is a covert IP DVR that also functions as a real USB charging station.
The device has an integrated Wi-Fi module and allows for an IP connection of the device. Once set up you can monitor and control the device via your smartphone app from anywhere in the world with an internet connection.
The USB charging station offers multiple recording resolutions, and multiple FPS setups; 1080p/720p/WVGA @25/30fps. It is powered by a cord so battery life is not of matter in this device. It records onto the 16GB SD card that comes with the accessories and supports SD cards up to 32 GB. It allows for 500 min of recordings in Full HD resolution onto the 16 GB SD card and has an overwrite function if access to the device is limited.
The device allows for snapshots via the Smartphone app, which you can download onto your phone as well.
PV-CS10i Main Features:
- Wi-Fi-enabled covert 2MP DVR that allows you to view and set up the DVR via the free Smartphone App
- The built-in IP function allows you to operate the device from anywhere in the world with internet access via your smartphone
- Multiple recording resolutions & FPS; 1080p/720p/WVGA @25/30fps
- Supports up to 32 GB SD Cards
- Functions as a regular 1.05A USB charging station
- Powered by AV outlet (from the cord), no batteries are needed
- LED Indicators for Power / Charging / IP / Recording
- Overwrite function - when SD card change is not possible
PV-CS10i Full Specifications:
Built-in Image Sensor: 1/2.9" progressive CMOS sensor
Sensor Resolution: 2000x1121
Sensor Sensitivity: 0.1 Lux @ F 2.0
Lens F/No.: F 2.0
Focal Length: 4.3mm
The angle of view: 78.2°
Algorithm: H.264, JPEG
File Format: MOV, JPG
Video Recording Mode: Auto/Manual/Motion Detection
Recording Capability: 1920x1080, 1280x720, 848x480
Frame Rate: @25/30fps
Photo Capability: 2M(1600*1200)
Wi-Fi: Built-in Wi-Fi Module(IEEE 802.11b/g/n)
Wi-Fi Protocol: TCP/IP
Memory type: Memory Card (Supports SDHC max. 32GB)
Data Interface: Mini USB 2.0
Date/Time Table: YYYY/MM/DD, HH:MM:SS
Snapshot: recording and playback video (via smartphone)
Power Input: AC 100~240V
Charging Output: DC 5V/1A
Recording Time: 500min @ 1920x1080 resolution (16GB memory card)
Dimension: 26*110*90 cm
Image from PDF specifications; Lens and Microphone placement on the PV-CS10i
App Store link:
PV-CS10i Feature Focus:
Functions as a real USB charging station!
Along with being a new IP covert Mini DVR it also works as a real USB charging station. That will make it the ideal companion for home and office surveillance as it perfectly blends in with the environment.
Wi-Fi & IP connectivity
the new line of Lawmate's IP products makes it possible to remotely set up and change the device settings and to stream video and photo material from anywhere in the world. Once the device is connected to the router and the IP connection is set up, you can access your videos and photos, as well as the live stream from anywhere your smartphone, has a Wi-Fi connection.
Multiple recording resolutions, modes, and FPS
The device offers multiple recording resolutions (1920x1080, 1280x720, 848x480) and multiple recording modes (Auto/Manual/Motion Detection), along with the overwrite function and timestamp option. This way you can customize the device directly to your requirements.
Powered by the cord, no batteries needed
The device is powered directly from the cord and does not need batteries in order to record. That allows you to record unlimited onto the provided SD card if you pair it with the overwrite function.
How to use the PV-CS10i:
- Insert the SD Card (included)
- Connect the device to a power source
- Switch the power button and Wi-Fi button to ON
- Choose between motion detection and continuous mode (can be changed in App later)
- Connect your smartphone to the device as per the IP cam guide available for download below.
PV-CS10i FAQs
Can I take snapshots with the PV-CS10i?
Snapshots can be taken via the Smartphone app, which can then be downloaded onto your phone. This feature allows for quick capture of still images from the live feed or recorded video, providing additional flexibility in surveillance and evidence collection. The app enhances the user experience by offering convenient control over the device’s functions.
Can the PV-CS10i function as a real USB charging station?
Yes, the PV-CS10i functions as a real 1.05A USB charging station. It is designed to blend into environments seamlessly, making it an ideal solution for covert surveillance in home or office settings. The charging capability adds to its disguise, making it less likely to be suspected as a surveillance device.
Does the PV-CS10i have an overwrite function?
Yes, the PV-CS10i has an overwrite function, which is useful when SD card change is not possible. This feature allows the device to automatically overwrite the oldest files when the storage is full, ensuring continuous recording without manual intervention. It is particularly beneficial in long-term surveillance situations where access to the device is limited.
How does the Wi-Fi functionality work on the PV-CS10i?
The Wi-Fi functionality on the PV-CS10i allows for remote operation and viewing through a free smartphone app. Once connected to a Wi-Fi network, users can access the device from anywhere in the world with an internet connection, enabling live streaming and device management. This feature enhances the device’s utility as a surveillance tool.
How is the PV-CS10i powered?
The PV-CS10i is powered by an AV outlet from the cord, eliminating the need for batteries. This feature ensures continuous operation without the need for frequent battery replacements, making it suitable for long-term surveillance operations. The direct power supply also supports the device’s function as a charging station.
What are the LED indicators on the PV-CS10i for?
The LED indicators on the PV-CS10i signify Power, Charging, IP connectivity, and Recording status. These indicators provide visual cues about the device’s operation, making it easier to understand its current mode and functionality at a glance. The LEDs are an essential aspect of the device’s user interface.
What is the LawMate PV-CS10i?
The LawMate PV-CS10i is a 1080P WI-FI / IP Covert DVR disguised as a functioning USB charging station. It features an integrated Wi-Fi module for remote viewing and control via a smartphone app, and it supports multiple recording resolutions and frames per second. This device is designed for discreet surveillance while offering the practical utility of a USB charger.
What is the maximum SD card capacity supported by the PV-CS10i?
The PV-CS10i supports SD cards up to 32 GB. It comes with a 16GB SD card included, providing ample storage for recordings. The device’s support for up to 32 GB allows for extended recording times, especially when using lower resolution settings.
What recording resolutions does the PV-CS10i support?
The PV-CS10i supports multiple recording resolutions, including 1080p, 720p, and WVGA at 25/30fps. This flexibility allows users to choose the appropriate resolution based on their storage capacity, desired video quality, and specific surveillance needs. Higher resolutions offer clearer images but consume more storage space.
Note:
Please find the PDF documents with specifications and how to set up for download below.
New info on SSID: it turns out that IP products (such as this one) cannot change the SSID name. Wi-Fi products only can change the SSID name. However, once connected to the IP the device's name is the same as your router name.
Warranty 24 Months
>>Download detailed specifications (PDF)<<
