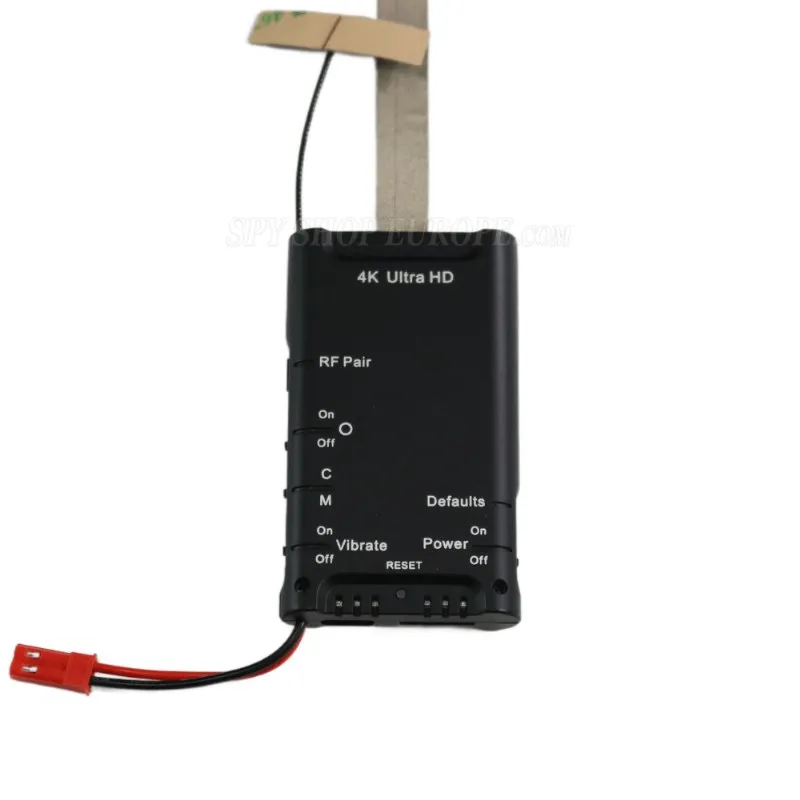

LawMate PV-DY40UW is a new 4K Ultra HD Wi-Fi DVR Module. This is a modified version of one of LawMate's all-time bestselling DVR modules, PV-DY20i.

Thanks to its built-in Wi-Fi, you can easily connect your smartphone to the PV-DY40UW and control, view, playback, and download video from your smartphone app. This is a highly versatile do-it-yourself module and because of its simple design you can install it in a way that is the most convenient for you and that will help you gain evidence in your investigation.

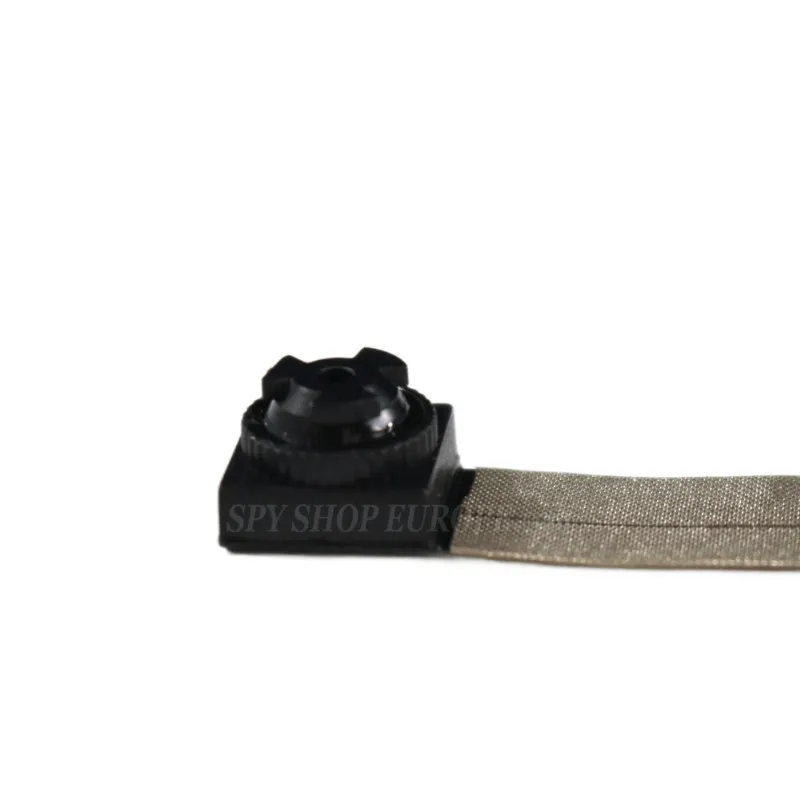

It comes with the complimentary 2200 mA Lithium battery and allows around 140 min of recording @ 3840x2160 @ 30 fps resolution. LawMate PV-DY40UW has a 66° angle of view and a 1/2.8"progressive CMOS sensor.





By adding the 4K resolution to one of their bestellers LawMate has added an extra value to their products. The video is now much clearer and the images are more detailed which may be crucial for professionals in their investigations, or for specialists in the media industry who are one of loyal users of LawMate equipment.



PV-DY40UW has a built-in Wi-Fi module with which you can easily connect your smartphone to the DVR module and access and control the recordings via the app. You can control the resolution, change frame rates, change recording modes and all other features through the app.



This is an upgraded feature and is often asked for by the clients.  More storage gives you the possibility to collect more footage. It gives you the flexibility to store 4K resolution content for a longer period of time.









LawMate PV-DY40UW 4K Wi-Fi DIY Module FAQs

Are there any additional accessories included with the PV-DY40UW?

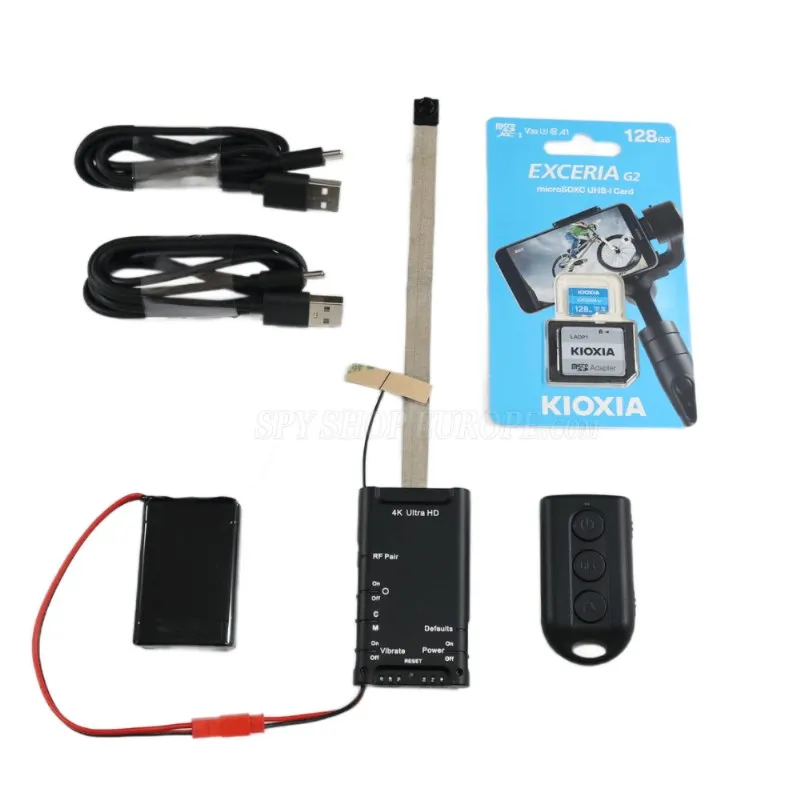

Yes, the PV-DY40UW includes the PI-RF50TX Remote Controller and a 128 GB SD card among its accessories. These accessories enhance the device’s functionality, with the remote controller facilitating easy operation and the SD card providing ample storage for recorded footage. The inclusion of these accessories adds value to the product, making it ready to use right out of the box.

Are there any subscription fees or additional costs for using the PV-DY40UW and its related mobile app?
There are no subscription fees or recurring costs for using the PV-DY40UW and the PV Cam App. Once you purchase the device and download the app, you can use it without additional charge.

Can I access the live stream from PV-DY40UW 4K remotely?
Yes, you can access the live stream remotely via the smartphone app once the module is connected to the Wi-Fi router in the location of the PV-DY40UW 4K. This feature provides users with the ability to monitor their surveillance area in real-time from any location, offering peace of mind and enhanced security. Remote access is a key feature that adds to the device’s versatility and usefulness.

Can I adjust the recording quality and resolution on my PV-DY40UW 4K?
Yes, you can choose from different resolution options, including, 2160p(4K), 1080p, 720p, and WVGA, at up to 30 fps, which you adjust via the smartphone app. This flexibility allows users to optimize their recordings based on their specific needs, whether it’s for saving storage space or capturing the highest quality footage. The ability to adjust settings ensures that the device can be tailored to various surveillance requirements.

How can I ensure the privacy and security of the recorded footage and live streaming on PV-DY40UW 4K?
It’s recommended to replace the default password with a strong password when connecting the PV-DY40UW 4K to your smartphone.

How can I view the recorded content made with PV-DY400UW 4K?
Recorded content can be viewed by connecting to the PV Cam App Viewer on your smartphone for live streaming and reviewing stored footage on the SD card. This connectivity offers convenience and flexibility, allowing users to access their recordings anytime and within Wi-Fi range. The app enhances the user experience by providing an easy interface for managing and viewing recordings.

How is the PV-DY40UW powered?
The PV-DY40UW is powered by a battery. The device has a 660mAH high polymer battery that lasts 70 to 90 minutes of continuous recording.

Is the PV-DY40UW re-chargeable?
Yes, the PV-DY40UW module can be recharged using the provided USB cable. This feature ensures that the device can be easily powered up again after its battery drains, offering convenience and continuous operation capabilities. The ability to recharge the device supports its portable and flexible usage in various surveillance scenarios.

What are the operating modes of the PV-DY40UW?
The PV-DY40UW offers multiple operating modes including Auto, Manual, and Motion Detection, along with vibration alerts. These modes provide versatility in recording, allowing users to select the most appropriate setting for their surveillance needs. The inclusion of vibration alerts adds an extra layer of user interaction, notifying them of key device statuses.

What is the difference between PV-DY40UW and PV-DY40UWW?
The only difference between the LawMate PV-DY40UW and the PV-DY40UWW is that the PV-DY40UWW features a wide lens with a 96° angle of view.

What is the maximum recording time on a 128GB SD card in my PV-DY40UW?
The PV-DY40UW can record up to 280 minutes at 3840×2160@30fps resolution on a 128GB SD card. This capacity allows for extensive recording sessions, making it suitable for capturing detailed footage over extended periods. The device’s efficient storage management ensures high-quality recordings without quickly exhausting the available space.

What should I keep in mind when configuring the PV-DY40UW in the app?
It’s important to enter the same router name as stated on your device for proper configuration.

Where can I download the PV CAM Viewer App?
The PV-CAM Viewer App can be downloaded from Google Play and the App Store, allowing users to connect to and control the PV-DY40UWW from their smartphones. The app is a crucial component of the device’s functionality, providing an interface for live streaming, playback, and device management. This app enhances the user experience by offering convenient and intuitive control over the PV-DY40UWW.



This device is not designed for continuous use with a 220V power supply, as it may lead to overheating and potential damage to the device.



For more details on setting up and usage of the device, please study the PDF files below.
