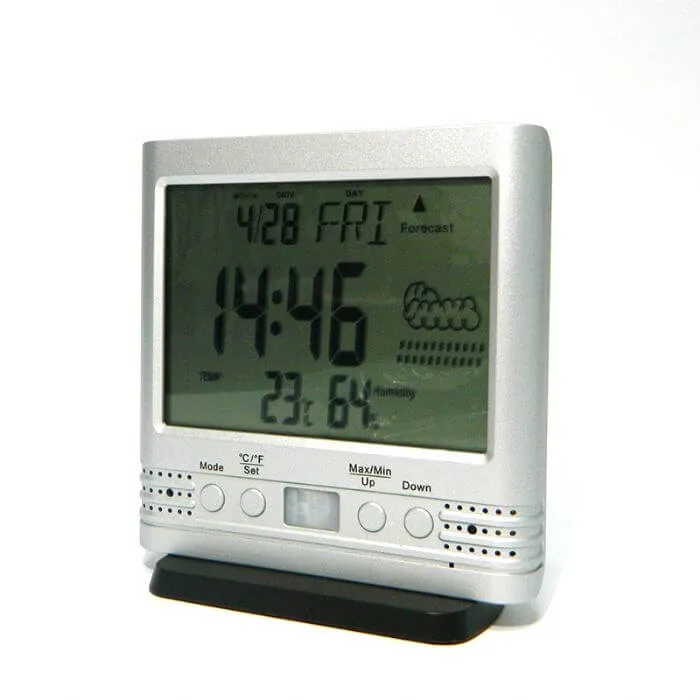

LawMate PV-TM10FHD is a covert thermometer DVR ideal for home or office surveillance that includes Full HD 1080P recording, a 5MP camera, PIR sensor activation, and more.
The PV-TM10FHD comes in Full HD 1080P while retaining all the previous functions (as the discontinued PV-TM10 version) like the overwrite function, real-time on the DVR, and 9 days standby time. It allows you to record continuously (160 min in Full HD) or with the PIR sensor which activates as soon as a heat source is detected.
The camera is upgraded from 2MP to 5MP and the Lens F/No from F 2.6 to F 3.2. The file format allows you to choose between MOV and JPG.

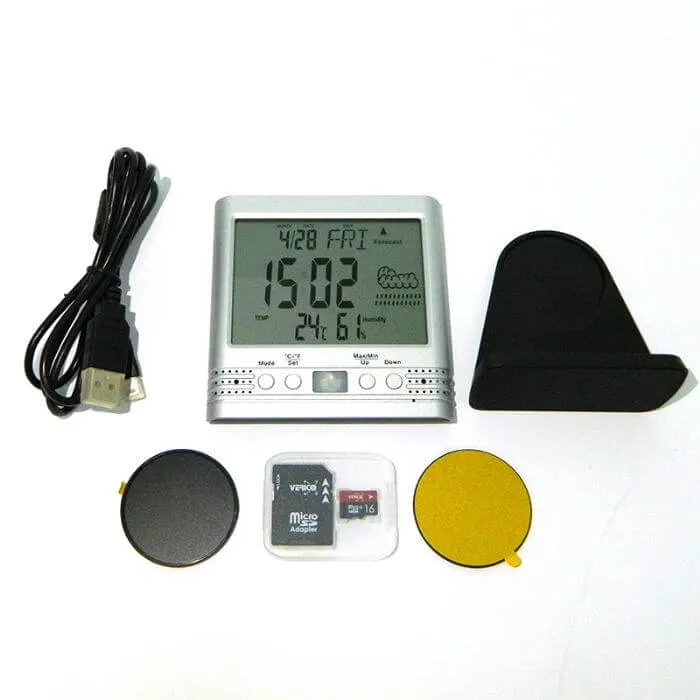

Its standard accessories allow you to mount it on the wall or place it somewhere in the room using the desktop stand. The wall mount and the stand have also been redesigned to a higher aesthetic and functionality. Controls and SD card are carefully hidden under a lid on the back of this LawMate DVR camera so from the outside the PV-TM10FHD seems like an ordinary home weather station.
Comes now with a 16 GB SD Card, and supports up to 32 GB SD cards.
PV-TM10FHD Thermometer DVR Main Features:
- Full HD 1080p covert DVR in thermometer design
- PIR sensor activates recording and photo shooting when a heat source is detected
- Real-time - clock function
- Video at 30fps MOV. format
- 9 days standby time
- Removable battery
- Overwrite function
- Supports up to 32GB MicroSD card
PV-TM10FHD Thermometer DVR Full Specifications:
Camera: 1/3” progressive CMOS sensor
Video Resolution: FHD(1920*1080)
Photo Resolution: 5MP(2592*1944.JPG)
Sensitivity: 3.3 Lux @ F2.0
Lens F/No.: F 3.2
Lens Diameter: 4mm
Lens Angle: 66°
File Format: MOV, JPG
Frame Rate: Up to 30 fps
Recording Mode: Continuous / PIR Activated
Memory Type: Micro SD Card ( Support SDHC max.32GB)
Data Interface: Mini USB 2.0
Date/Time Stamp: YYYY.MM.DD, HH:MM:SS
Continuous Recording: FHD:160 min (16G SD Card)
Power Consumption: 250mA-390mA
Standby Consumption: 6.4mA(approx.)
Standby Time: 9 days
Battery Lifetime: 180 min (approx.)
Battery Capacity: DC 3.7V / 1350mA battery
Dimensions: 10*10*1.5 cm
Weight: 133g
PV-TM10FHD Name and Parts from Quick Manual
LED status bar:
- Green: Charging
- Bright Green: Overwrite on
- Blue: Power on/ Low battery
- Red: Video recording/ photo shooting
PV-TM10FHD Feature Focus:
9 days standby mode
Equipped with a 1350 mAh battery the device can record approx. 180 min continuous recording, however, it is capable of 9 days standby mode. This is great when you plan short trips, especially in the combination with the PIR sensor.
PIR Sensor
Whenever the PIR sensor is triggered, the DVR automatically starts recording after 5 seconds. The Red LED illuminates to show the recording has started. The length of the video varies from 5 seconds to 2 minutes depending on the movement detection. The device takes 3 photos whenever the PIR sensor is triggered.
PV-TM10FHD PIR Sensor Detection Range from Quick Manual
How to use the PV-TM10FHD Thermometer DVR:
- Select operation mode by sliding Photo/Rec switches to place.
- Power on the DVR (8)
- Switch (12) to choose video recording or photo taking
- Resolution setting by sliding VGA/HD switch (13) to place
PV-TM10FHD FAQs
Can the PV-TM10FHD record continuously, and how long can it record for?
Yes, the PV-TM10FHD can record continuously for up to 160 minutes in Full HD quality. It also has a 9-day standby time, allowing for extended periods of surveillance without the need for frequent recharging or memory card changes.
How do you use the PV-TM10FHD?
To use the PV-TM10FHD, select the operation mode by sliding the Photo/Rec switches, power on the DVR, choose between video recording or photo taking, and set the resolution. These simple steps allow for easy operation, making it accessible for users with varying levels of technical expertise.
How does the PIR sensor work on the PV-TM10FHD?
The PIR sensor on the PV-TM10FHD activates recording or photo shooting when it detects a heat source, starting after a 5-second delay. This feature allows for efficient use of storage and battery life by only recording when there is movement. The device can record video from 5 seconds to 2 minutes in length and takes 3 photos whenever the PIR sensor is triggered.
How is the PV-TM10FHD powered?
The PV-TM10FHD is powered by a removable 1350 mAh battery, offering around 180 minutes of continuous recording or up to 9 days in standby mode. This removable battery feature allows for easy replacement or charging, ensuring the device is always ready for use.
What are the mounting options for the PV-TM10FHD?
The PV-TM10FHD comes with standard accessories that allow for wall mounting or placement on a desk using the desktop stand. These mounting options, along with its discreet design, make it versatile for various surveillance setups in different environments.
What does the LED status bar indicate on the PV-TM10FHD?
The LED status bar on the PV-TM10FHD indicates charging (green), overwrite function on (bright green), power on or low battery (blue), and video recording or photo shooting (red). This feature provides visual cues to the user about the device’s current status and operation mode.
What is the LawMate PV-TM10FHD?
The LawMate PV-TM10FHD is a covert thermometer DVR designed for surveillance with Full HD 1080P recording capabilities. It features a 5MP camera, PIR sensor activation for motion detection, and is ideal for use in home or office environments. The device disguises itself as a regular thermometer while providing high-quality video recording and photo shooting functionalities.
What is the video quality and camera resolution of the PV-TM10FHD?
The PV-TM10FHD records in Full HD 1080P quality and has been upgraded to a 5MP camera for clearer and more detailed images. This upgrade from the previous 2MP camera ensures higher quality video and photo captures, making it more effective for surveillance purposes.
What types of memory cards does the PV-TM10FHD support?
The PV-TM10FHD supports up to 32GB MicroSD cards, providing ample storage for video recordings and photos. It comes with a 16GB SD Card included, allowing for immediate use out of the box.
Note:
For a complete installation guide, as well as function overview and usage, please study the Quick Manual below.
24 Months Warranty
>>PV-TM10FHD Quick Manual<<
>>Download detailed specifications (PDF)<<
