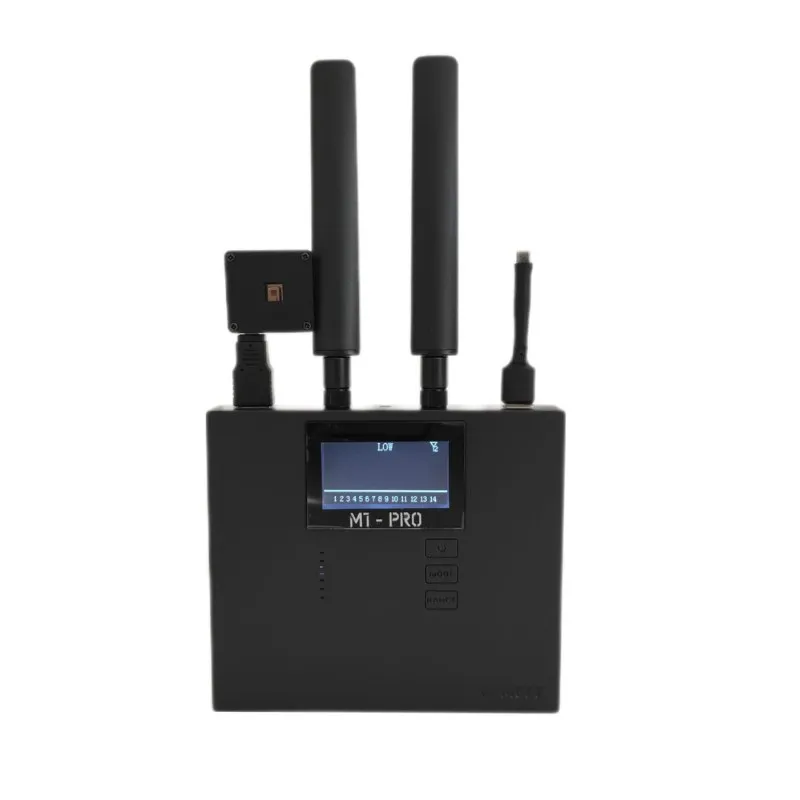

The MEFF M1-PRO is a multi-functional spectrum analyzer, bug detector, and camera detector, capable of scanning frequencies from 0 to 20 GHz.
Manufactured in the EU in compliance with EU standards and built with premium materials, it offers advanced features such as real-time signal analysis, precise location tracking, and 24/7 monitoring. Equipped with various probes and antennas, it can detect a wide range of surveillance devices, including those powered off or magnetized. Its compact, portable design ensures ease of use in diverse environments.
The MEFF M1-PRO is a versatile kit designed to address a wide range of scenarios involving the detection of suspicious activities. It is an excellent choice for professionals entering the field of Technical Surveillance Countermeasures (TSCM) who require reliable tools for locating and identifying concealed analog and digital devices like GPS trackers, wireless cameras, jammers, and other covert surveillance equipment.
MEFF M1-PRO Main Features:
- Wide Frequency Range: Detects analog and digital signals from 0 to 20 GHz
- Multiple Detection Modes: Includes full band, GPS, Wi-Fi, and magnet detection.
- Advanced Probes:
T1 Probe: Activates GPS trackers for detection
T2 Probe: Detects laser and infrared microphones
T3 Probe: Activates audio and video bugs in standy
T4 Probe: Identifies hidden cameras, even if unpowered or using infrared
Thermographic Probe: Locates heat-emitting devices
- Real-Time Signal Analysis: Measures signal strength (dB) and distance (cm)
- App Integration: Connects to Android devices for graphical monitoring and event logs
- Fast Scan Speed: Captures signals in real time with a scan speed of 30 microseconds
- Adjustable Sensitivity: Detection range from 0 cm to 30 m, customizable for precise scanning
- Comprehensive Antennas:
Omnidirectional for wide-area scanning
Directional for pinpointing specific sources
- Portable and Durable Design: Lightweight, compact, and built with sturdy materials.
- 24/7 Monitoring and Logging: Continuous signal tracking with detailed event logs.
- User-Friendly Interface: Clear LCD screen and simple controls for quick operation.
- Long Battery Life: 8 hours of operation with fast Type-C charging.
MEFF M1-Pro Full Specifications
Frequency Range: 0–20 GHz
Sensitivity: Adjustable for a detection range of 0 cm to 30 m
Scan Speed: 30 microseconds (real-time signal acquisition)
Dynamic Range: 68 dBm
Display: 2.6-inch LCD screen with real-time signal visualization
Power: 1200mW (max), 400mW (average)
Battery Capacity: 2500mAh high-density lithium (8 hours runtime)
Charging: Type-C port; 3-4 hours charging time
Dimensions: 16 cm (L) x 14 cm (H) x 2.2 cm (T)
Weight: Lightweight and portable
MEFF M1-PRO Feature Focus
Wideband and comprehensive detection in 0 – 20 GHz frequency range
MEFF M1-PRO offers detection of suspicious signals from 0 to 20 GHz with a detection speed of only 30 microseconds, ensuring no device—whether powered, unpowered, or hidden—escapes notice. Its ability to log data and generate detailed reports adds an extra layer of assurance, enabling a thorough review of any security sweep. It allows full-band scanning for analog and digital signals, including GPS, Wi-Fi, Bluetooth, and jammers.
Advanced Antennas and various Probes
The M1-PRO kit comes with two omnidirectional antennas, one directional antenna, and specialized probes for various scenarios Antennas enable wide band signal detection with pinpointing specific devices while probles are usefull in different scenarious like laser detection, infrared signal detection, GPS detection and even activation of stand by devices. Thanks to a special thermographic probe, with M1-PRO you are able to detect heat-emitting devices even in a power-off state.
App integration compatible with Android OS

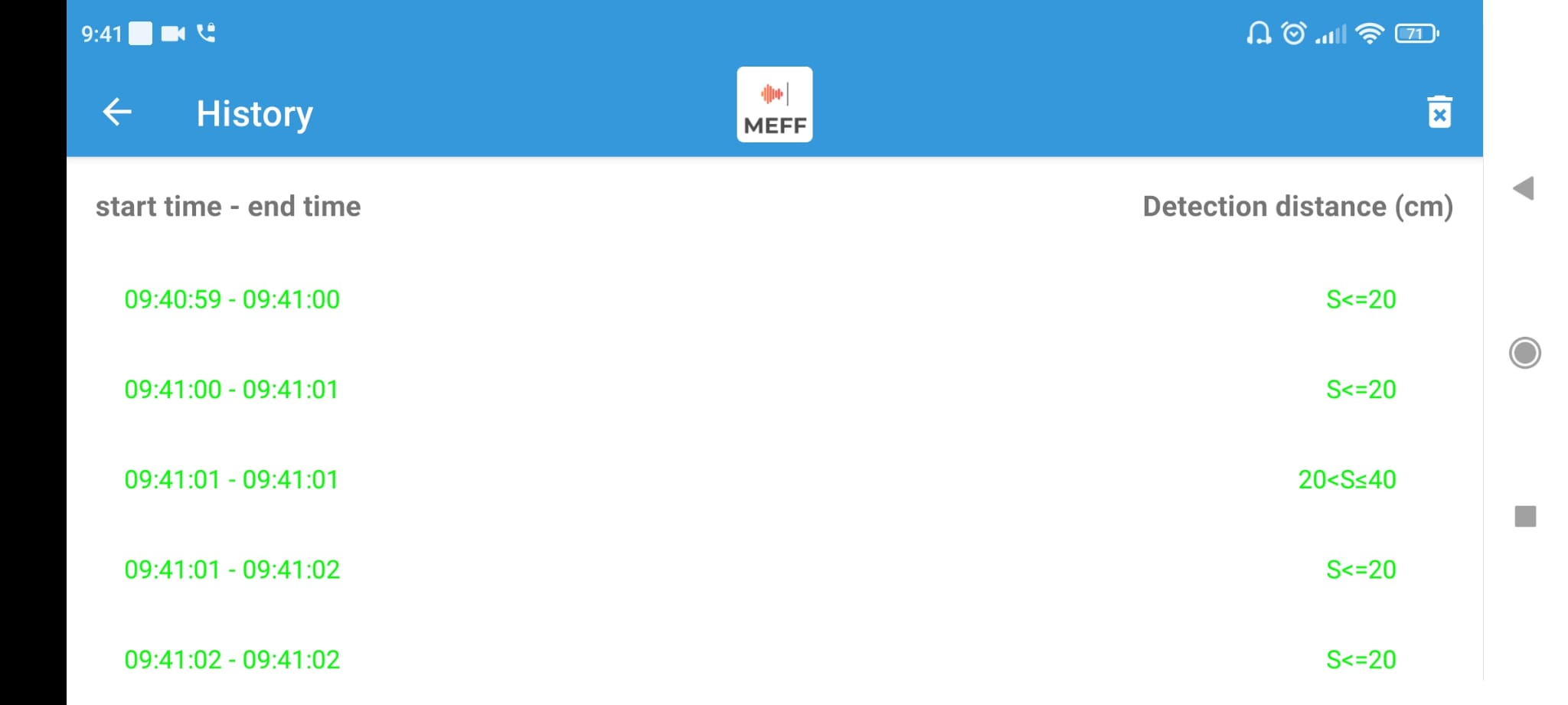

Using the provided type-C or audio jack connection, you can easily connect your Android device to the M1-PRO. In the app you can see signal strenght, distance measurement, graphical signal representation and have continous signal tracking with detailed event logs.
Versatile Scanning Modes and Magnet Detection
Besides using the various probes, M1-PRO comes in four different operating modes. The first one is full-band detection, where it provides detection signals in the signals in the 0 to 20 GHz range with real-time information displayed on the LCD screen. GPS and 900/1800 MHz detection is the mode that identifies GPS trackers and mobile signals, while Wi-Fi detection mode scans Wi-Fi devices and interference by displaying the strength of the detected signal. The last mode is the magnet detection mode, where the M1-PRO is able to locate magnetic fields from GPS trackers even if they are turned off, maintaining a distance of 5-10 cm.
How to use MEFF M1-PRO:
Take a look at the functions of the M1-PRO and the ease of use the product provides:

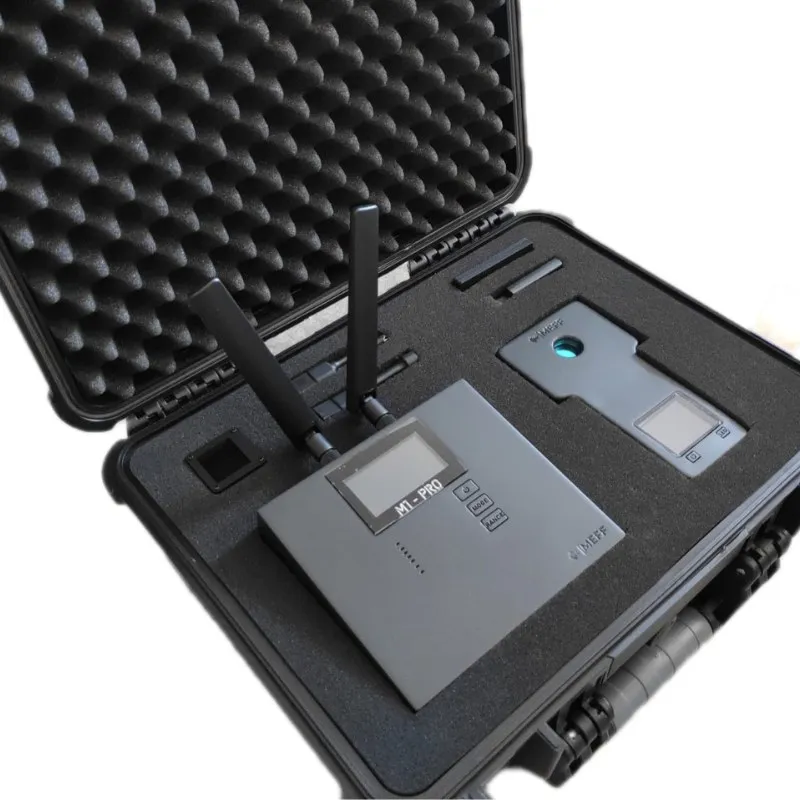

Package Contents:
- 1x M1-PRO Detector
- T1, T2, T3, and T4 Probes
- Thermographic Probe
- 2 x Omnidirectional Antennas
- 1 x Directional Antenna
- Type-C Charging Cable
- App Connection Cable
- English User Manual
- Military-Grade Carry Case
MEFF M1-PRO FAQs:
What frequency ranges can the MEFF M1-PRO detect, and which signals are covered?
The MEFF M1-PRO scans analog and digital signals across a broad 0–20 GHz range. This includes GPS, Wi-Fi, Bluetooth, jammers, and more, making it an ideal TSCM solution for detecting various covert surveillance devices.
Can the MEFF M1-PRO locate devices that are powered off or in standby mode?
Yes. The MEFF M1-PRO features specialized probes (T1, T2, T3, T4, and a Thermographic Probe) capable of detecting dormant or unpowered devices, ensuring comprehensive coverage for professional surveillance detection.
Does the MEFF M1-PRO support continuous, 24/7 monitoring?
Yes, it offers around-the-clock signal tracking and event logging, providing detailed records of suspicious activity. This continuous logging is particularly useful in TSCM operations requiring thorough analysis.
How effective is the MEFF M1-PRO at detecting brief or intermittent signals?
With a 30-microsecond scan speed, the MEFF M1-PRO rapidly captures short-lived transmissions. This high-speed capability significantly reduces the risk of missing brief signals.
What kind of smartphone integration does the MEFF M1-PRO offer for real-time monitoring?
It is compatible with Android devices, providing a user-friendly app for real-time signal visualization, distance measurement, and event logging. This integration helps professionals efficiently manage surveillance sweeps.
How long is the MEFF M1-PRO’s battery life, and what is the recharge time?
The device operates for up to eight hours on a single charge, making it suitable for extended field use. Fast Type-C charging restores full power in approximately three to four hours.
Is the MEFF M1-PRO suitable for regular on-site inspections and field deployments?
Yes. Its lightweight, durable design (16 cm x 14 cm x 2.2 cm) ensures easy portability and robustness, making it ideal for professionals conducting frequent on-site TSCM operations.
What distinguishes the probes included with the MEFF M1-PRO?
The MEFF M1-PRO includes multiple specialized probes that each target different types of surveillance threats: the T1 probe activates GPS trackers so they emit detectable signals, T2 identifies laser-based and infrared microphones, T3 stimulates dormant audio and video bugs, T4 locates hidden cameras (even those that are unpowered or rely on infrared), and the Thermographic Probe detects heat-emitting devices whether or not they have an active power source.
Note:
For detailed specifications of the device, please read the PDFs available for download below.
24 Months Warranty.
>>Download detailed specifications (PDF)<<
Order until 13:00 CET and we will ship today! One-day delivery across EU
.png)
.png)
.png)
.png)
.png)

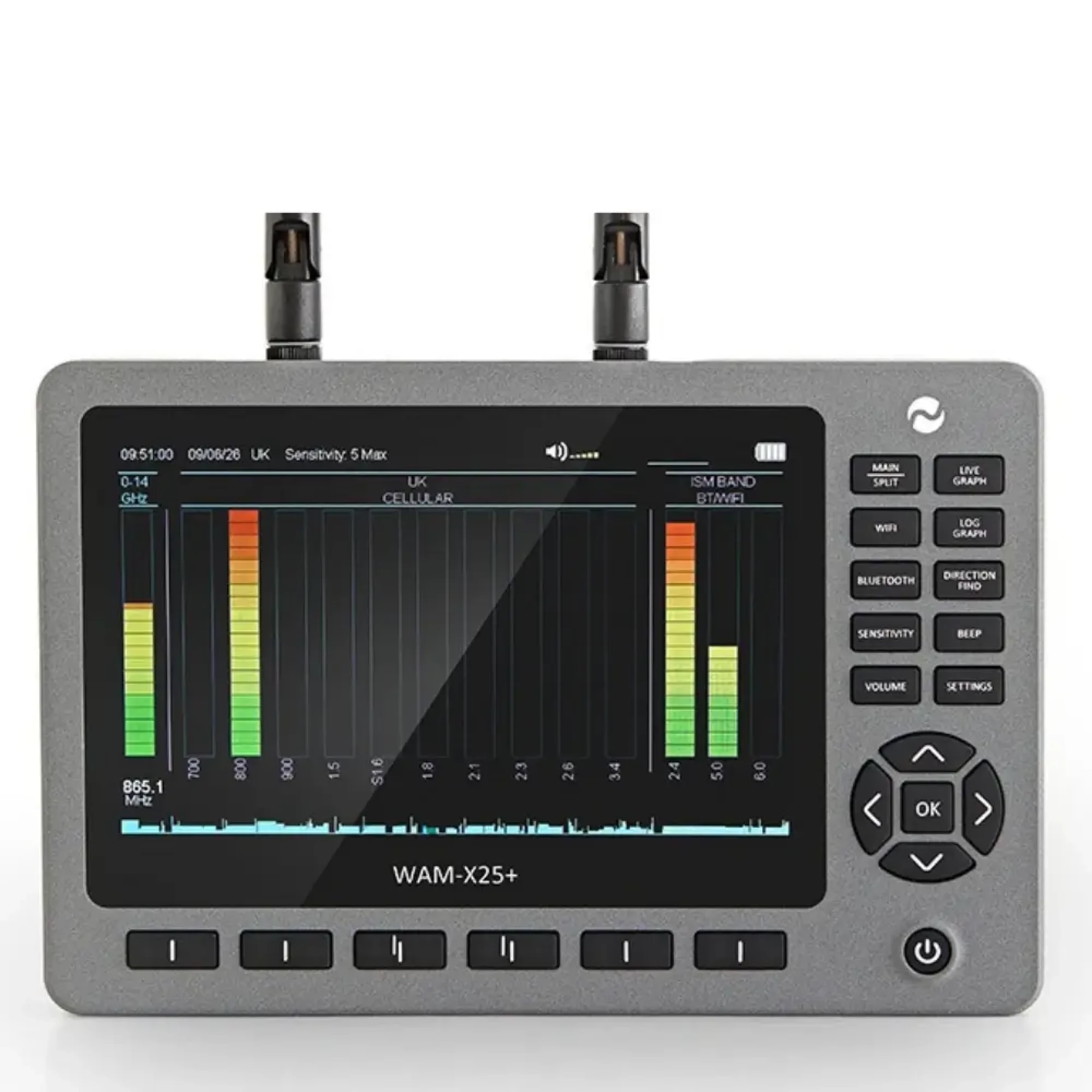

.jpg "Wideband RF Detector with frequency range 0-14GHz<br>Separate 2.4GHz and 5GHz Wi-Fi detectors<br>Wi-Fi Network Analyser<br>Bluetooth Device Analyser<br>Worldwide Cellular Coverage<br>Battery: Internal Lithium-Polymer rechargeable<br>")
