The Pixel Nano 4G Spy Bug is designed to address a need in the surveillance market for advanced and high-quality listening devices able to operate on modern 4G networks.

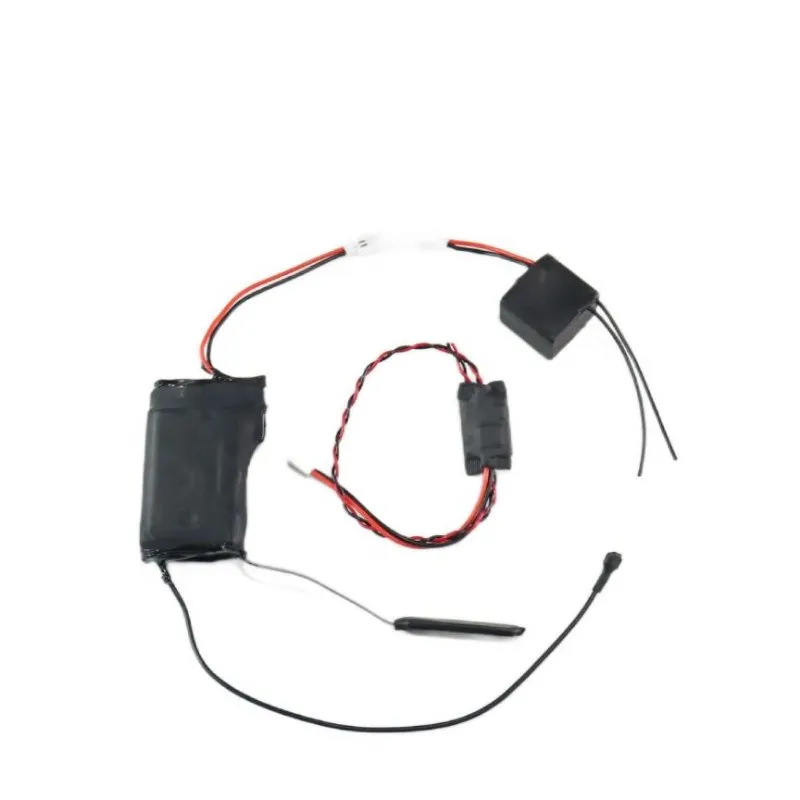

This compact and lightweight stand-alone listening audio device with an integrated LI-ion battery and high-quality Knowles microphone can be easily installed in a variety of settings like cars, rooms, offices, and other places where crystal clear sound is crucial for completing the mission. Its mini external power supply unit with AC input power (110-220 Vac) makes installation in various places quick and easy while an integrated battery allows it to even be body worn.



Pixel Nano 4G is simply programmable via SMS and offers an automatic call-back option with VOX/VAS or motion events. The setup is easy and done by sending an SMS to the number on the SIM card inside the Pixel Nano 4G. To ensure maximum protection, the setup and calls are protected by a password.



In terms of technical specifications, the Pixel Nano 4G operates on quad-band 850/900/1800/1900 MHz, 4G-FDD Band 1/2/3/5/7/8/20, 4G-TDD Band 38/39/40/41, and 2G-GSM Band 2/3/5/8. It features a sensitive GSM patch antenna, Knowles microphone (also available in a waterproof version), and a 5V-2000mAh Li-Ion battery that can be recharged via micro-USB plug or external PSU with AC input power (110-220Vac). The unit is highly customizable with low power consumption in standby mode and operates on a 4G GSM network (and 2G in the absence of 4G coverage).

Pixel Nano 4G Main Features:

• Operates on 4G GSM Network (and 2G in the absence of 4G coverage)
• Small in size and lightweight ( 63 x 43 x 13 mm/ 50g)
• Automatic callback function triggered by VOX/VAS or motion events
• High-quality audio transmission
• Low power consumption in standby mode
• Mini-external PSU with AC input power (110-220Vac) and integrated Li-Ion rechargeable battery for standalone operations

Pixel Nano 4G Full Specifications:



Due to the closure of 2G networks in many countries around the world, which are commonly used by spy bugs, there has been an increased demand among our clients for a 4G spy bug. The Pixel Nano 4G is designed to operate on the 4G GSM network and can also switch to 2G when 4G coverage is not available.



Thanks to its integrated rechargeable Li-Ion battery and additional mini external power supply unit with AC input power (110-220Vac), the Pixel Nano 4G can easily be installed in a variety of surroundings like indoor places or even cars so it can be quickly transformed into a car bug. This 4G spy bug can also be worn and used in many different undercover missions.



To configure the Pixel Nano 4G Spy Bug, you can send an SMS to the phone number associated with the SIM card inside the device. For security reasons during covert operations, these messages are password-protected. This 4G spy bug includes a call-back function that automatically dials the administrator's number when a sound is detected. Additionally, the device offers a shock sensor recall feature that calls the administrator's number as soon as any movement is detected.



The on-board DSP (digital signal processing) ensures clear audio quality, making the Pixel Nano 4G an excellent choice for intelligence missions that require high-quality audio surveillance. Additionally, the device comes equipped with a Knowles microphone, which is available in a waterproof version as well.

---

Can the Pixel Nano 4G be used for body-worn operations?
Yes, the Pixel Nano 4G can be used for body-worn operations due to its compact size, lightweight design, and integrated rechargeable Li-Ion battery. Its discreet nature allows for easy concealment on the person, making it an excellent choice for undercover missions where high-quality audio surveillance is needed.

How do I install the Pixel Nano 4G in a vehicle or room?

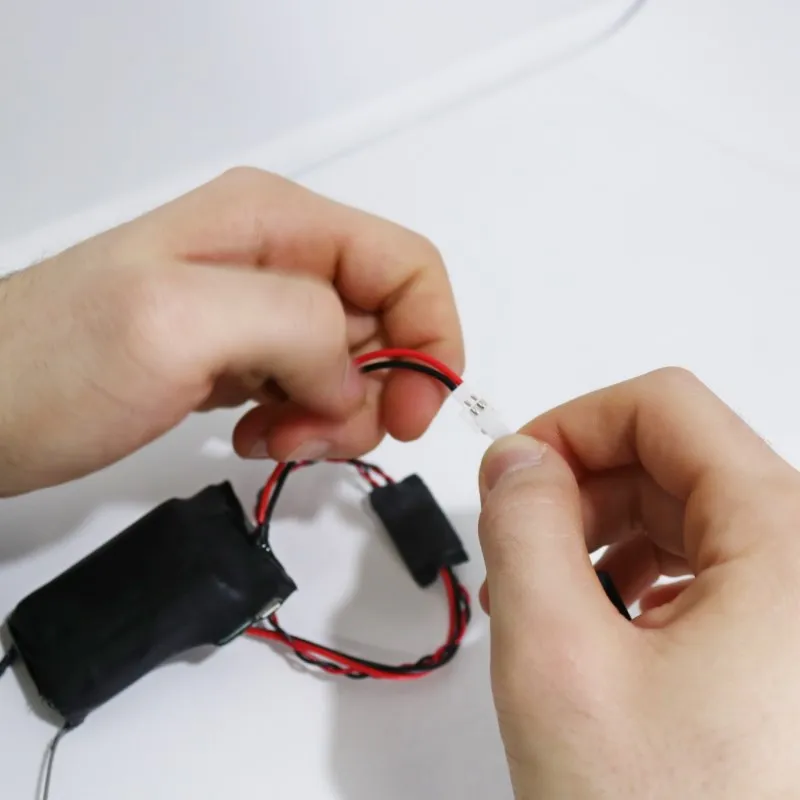

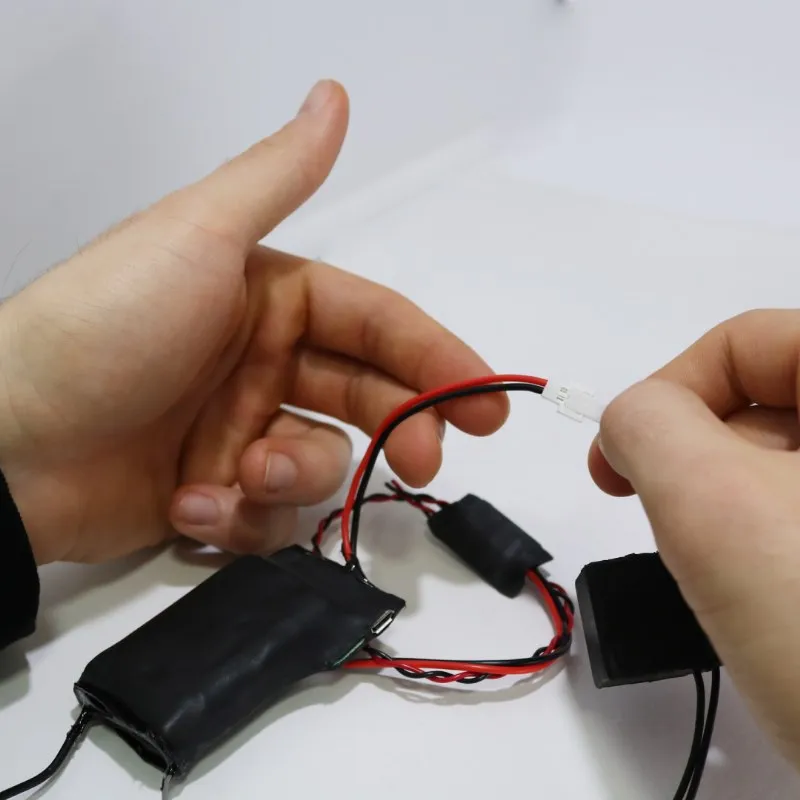

Installation of the Pixel Nano 4G is quick and easy, thanks to its compact size, integrated Li-Ion battery, and mini external power supply unit with AC input power (110-220Vac). The device can be discreetly placed in various environments, including vehicles and indoor settings, without requiring complex setup procedures, making it ideal for covert surveillance missions.

How is the Pixel Nano 4G configured for use?
The Pixel Nano 4G is configured via SMS, sent to the phone number associated with the SIM card inside the device. This method allows for easy setup and customization of the device’s features, including the automatic call-back function, while ensuring security through password protection of the configuration messages.

What are the dimensions and weight of the Pixel Nano 4G?

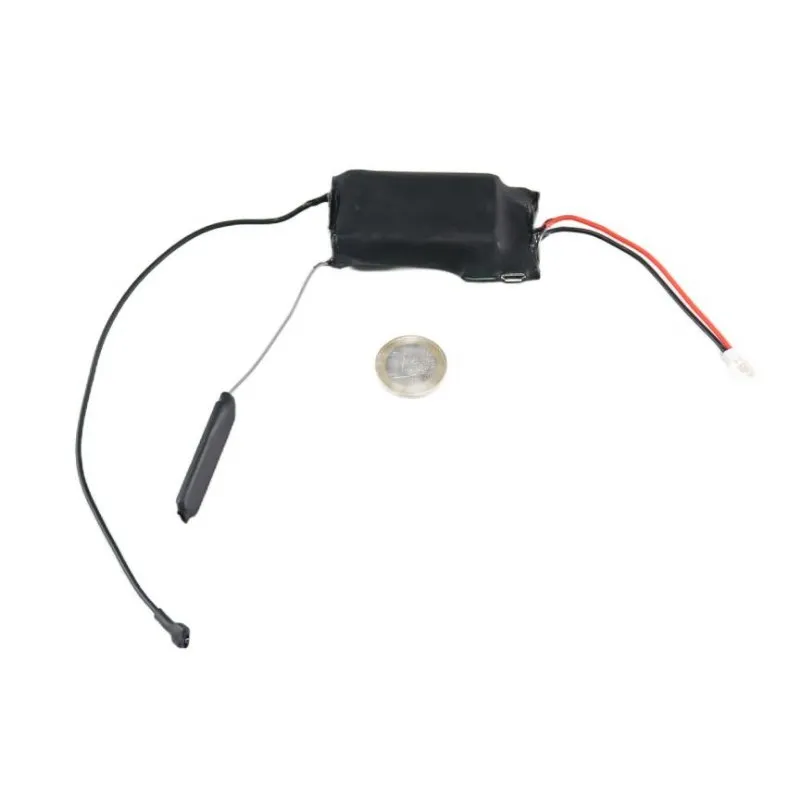

The Pixel Nano 4G measures 63 x 43 x 13 mm and weighs 50g. Its small size and lightweight design make it highly portable and easy to install in a variety of covert surveillance scenarios without drawing attention.

What is the battery life of the Pixel Nano 4G, and how is it charged?
The Pixel Nano 4G features a 5V-2000mAh Li-Ion battery that can be recharged via a micro-USB plug or an external PSU with AC input power (110-220Vac). This rechargeable battery supports long-duration operations and standby mode, ensuring the device remains operational for extended periods without needing frequent recharging.

What networks does the Pixel Nano 4G Spy Bug operate on?
The Pixel Nano 4G Spy Bug operates on 4G GSM networks and can switch to 2G in the absence of 4G coverage. It is designed to ensure reliable operation across various network conditions, supporting quad-band GSM and multiple 4G-FDD and 4G-TDD bands. This flexibility makes it suitable for use in many countries around the world, despite the gradual phasing out of 2G networks.

What triggers the automatic call-back function of the Pixel Nano 4G?
The automatic call-back function of the Pixel Nano 4G is triggered by VOX/VAS or motion events. This feature enables the device to automatically dial the administrator’s number when sound or movement is detected, ensuring timely alerts for surveillance operations without the need for constant manual monitoring.

What type of microphone does the Pixel Nano 4G use?
The Pixel Nano 4G uses a high-quality Knowles microphone, which is also available in a waterproof version. This microphone ensures clear audio quality, making the device highly effective for intelligence missions that require reliable and high-quality audio surveillance.

---

For more details on setting up and usage of the device, please study the PDF file below. The USB cable included in the package is intended solely for charging the battery and can not be used for continuous power supply.
