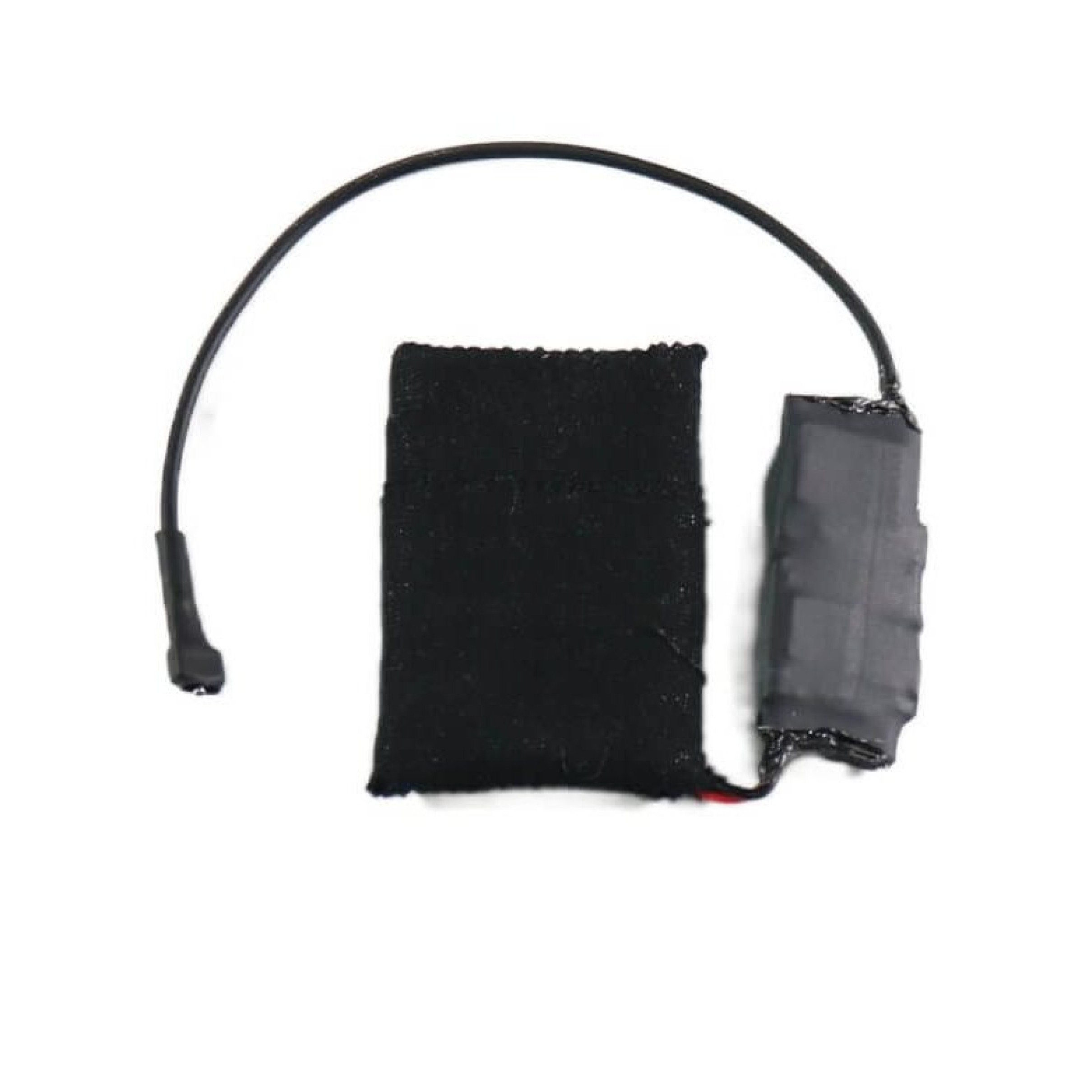

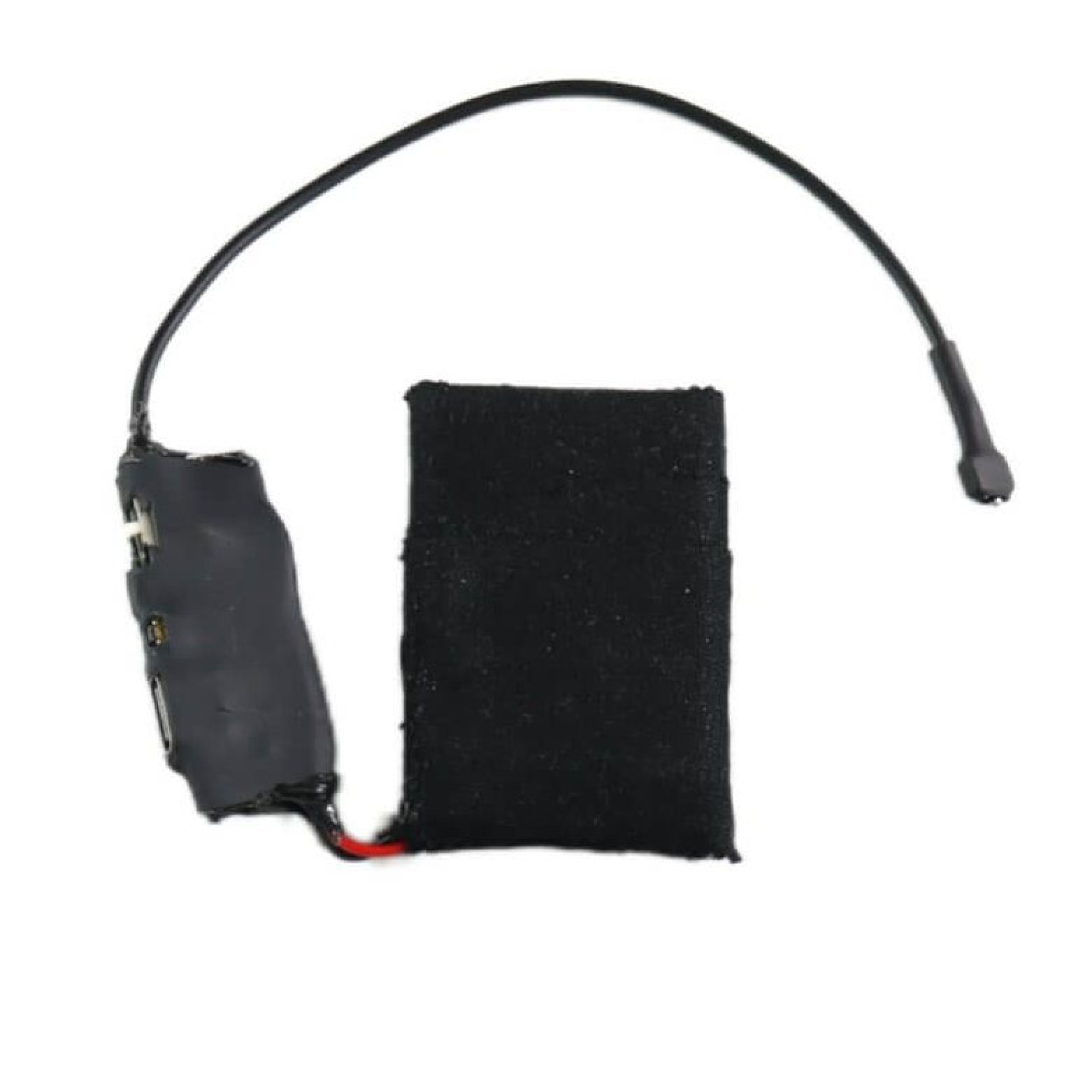

SPK-REC is a compact voice recorder that weighs just 9
grams, is manufactured in Europe, equipped with 64 GB internal memory, a built-in
Li-Ion battery, and a high-quality microphone.
Its small dimensions and lightweight design allow for
effortless use in various covert operations. The device features an external
Knowles microphone, which is also offered in a waterproof variant, ensuring
high-quality audio recording capabilities. This is a highly versatile device which besides the basic model
with integrated battery can be modified with larger batteries and different
lengths of microphone. Feel free to reach out to us at any time for modified
models at
[email protected]
SPK-REC Main Features:
- Small in size, lightweight (9 grams), and with
crystal clear sound
- Flexible customization options – available with larger battery capacity
and external microphones (even as waterproof versions)
- Easy installation in rooms, and cars and can also be
bodyworn
- Easy configuration via .txt file provided with
the device
SPK-REC Full
Specifications:
Configuration: Setting
audio file recorder length in minutes, Setting data/time, Setting VOX/VAS on 8
levels, Setting Gain microphone on 7 levels
Memory: 64Gb file WAV
Audio quality:
Recording sampling rate 48kHz, Bit rate up to 192Kbps
Microphone: Knowles,
cable microphone customizable (available also in waterproof version)
Power supply: 3,7 V
380mAh inside Li-Ion battery rechargeable, USB-C plug to recharge the battery
(Windows, Mac, Android)
Consumptions: 7 mA in
VOX/VAS mode
Dimensions and weight:
32 x 30 x 7 mm (heat shrink with 380mAh battery inside), 22 x 20 x 4 mm (heat
shrink ext. connector) 9 grams
Feature Focus
Small and highly adjustable voice recorder made in the EU
SPK-REC is one of the smallest and lightest audio recorders
we have used. It is made in Europe by a respectable manufacturer which
guarantees good value for the price. This audio recorder is available in a basic
64GB version with an integrated Li-Ion battery of 380mAh. In voice activation mode
and 192kbps the device consumes about 6-7mAh. It can be modified with a larger
external battery and different microphone length which can also be waterproof if the covert operation requires
it to be.
Simple to use and quick to configure

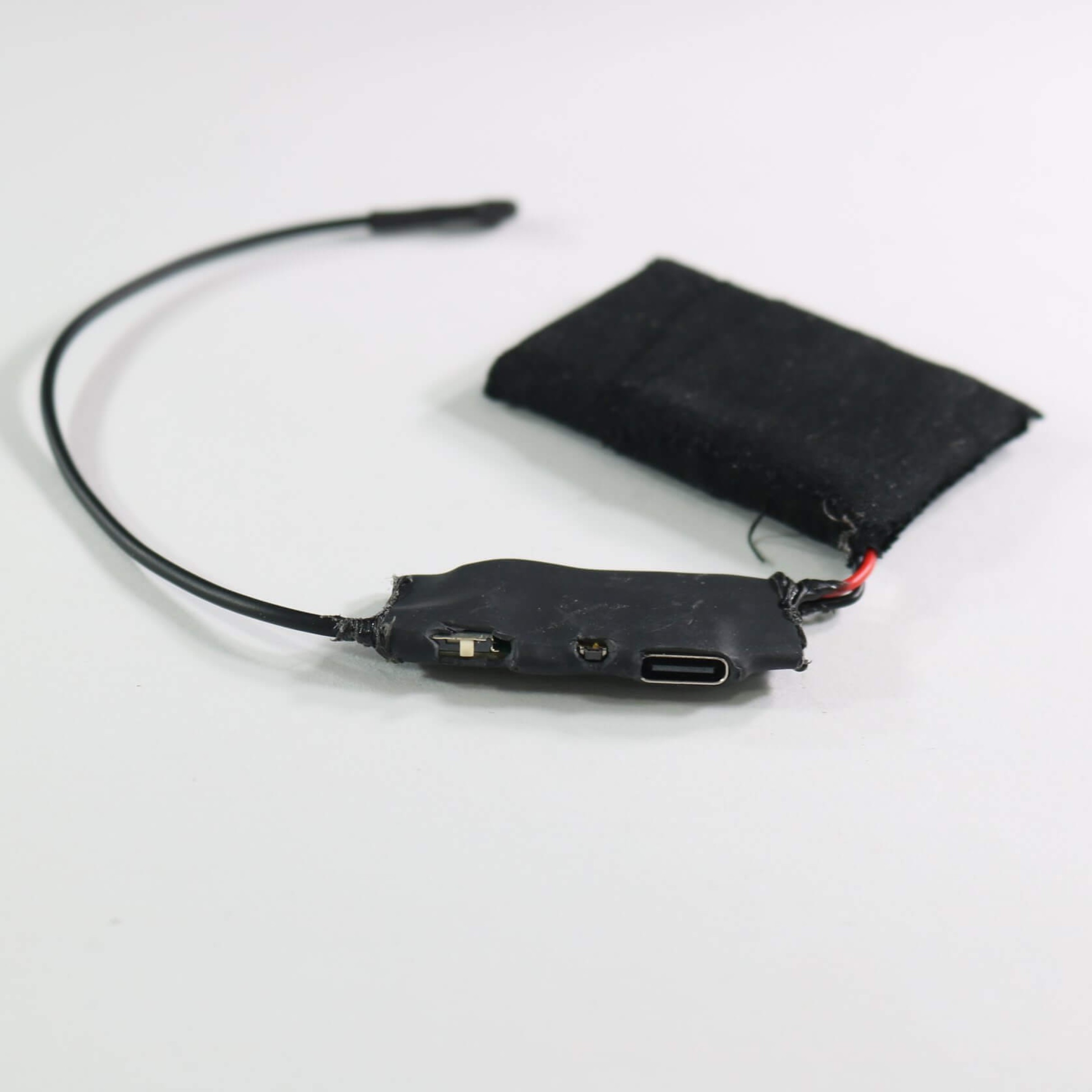

SPK-RC comes with a USB-C cable that is used for charging
and downloading recorded files. On the device, there is a .txt file that serves
for configuring date and time, voice activation sensitivity, recording quality,
microphone gain levels, and file length.

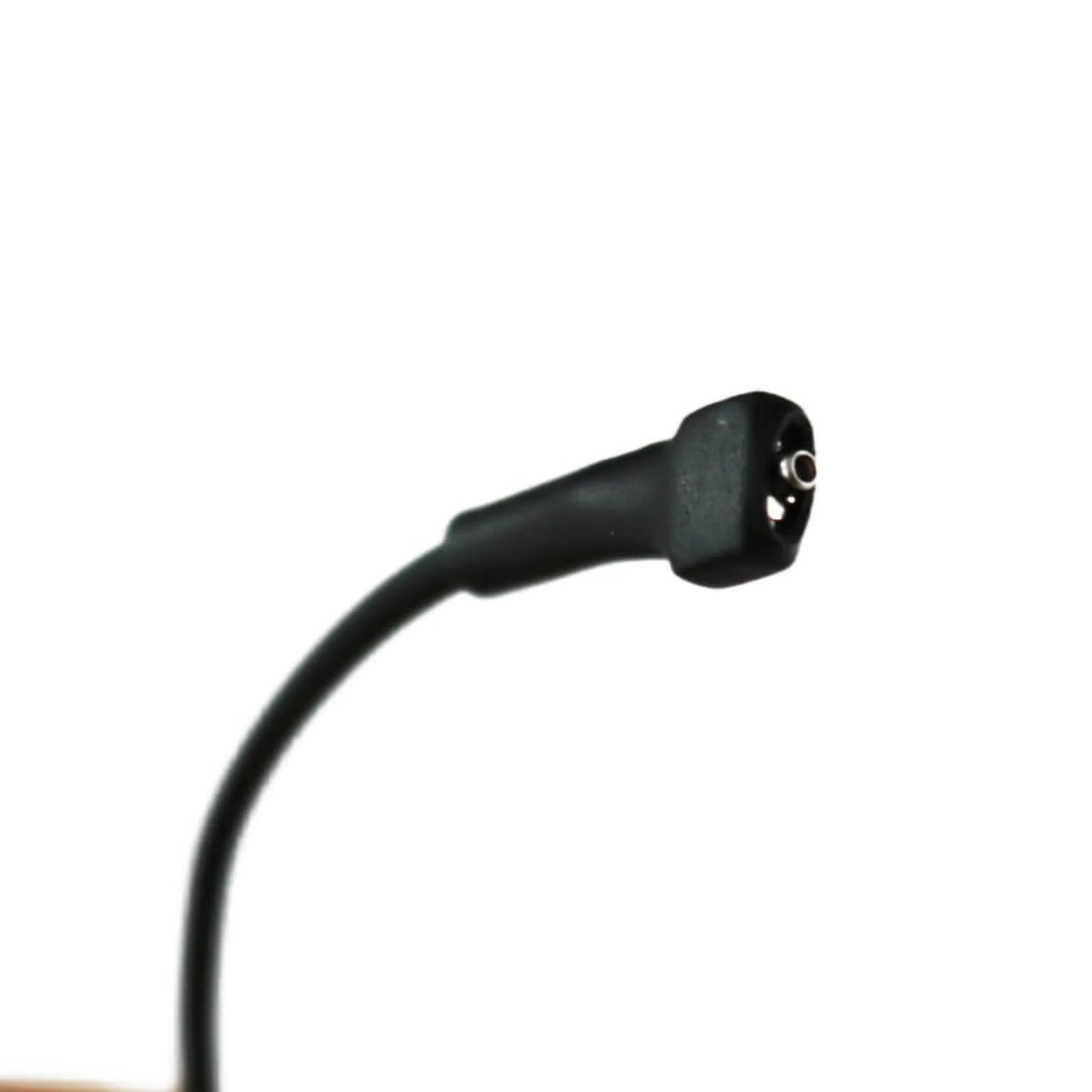

High-quality audio capture with Knowles microphone
Featuring a high-sensitive, wide dynamic range Knowles
microphone, SPK-REC captures clear audio even from distances of up to 10-15
meters. This ensures high-quality recordings, essential for covert surveillance
and investigative purposes.
Seamless Data Access
Recorded files are easily accessible via the USB-C port,
enabling convenient data transfer to PCs or smartphones (with OTG Cable). This
accessibility streamlines the process of retrieving and analyzing recorded
content.
SPK-REC FAQs
How do I charge the SPK-REC?
You can charge the SPK-REC via the provided USB cable that you connect to the device’s USB C port.
How do I set up the SPK-REC for recording?
SPK-REC is turned on by pulling the switch towards the USB C port. After turning on the blue and red LED flash and then only red
LED flashes 3 times meaning the recording has started.
How do I transfer recordings from the SPK-REC to a PC?
To transfer recordings, connect the SPK-REC USB C port to the PC using the provided USB connector. This allows easy access to the WAV files, enabling users to review, archive, or share the recordings as needed.
How much internal memory does the SPK-REC have?
The SPK-REC is equipped with 64GB of internal memory. This ample storage space supports the device’s long recording time, allowing for the storage of high-quality audio files without the need for frequent data transfers.
What is included in the SPK-REC package?

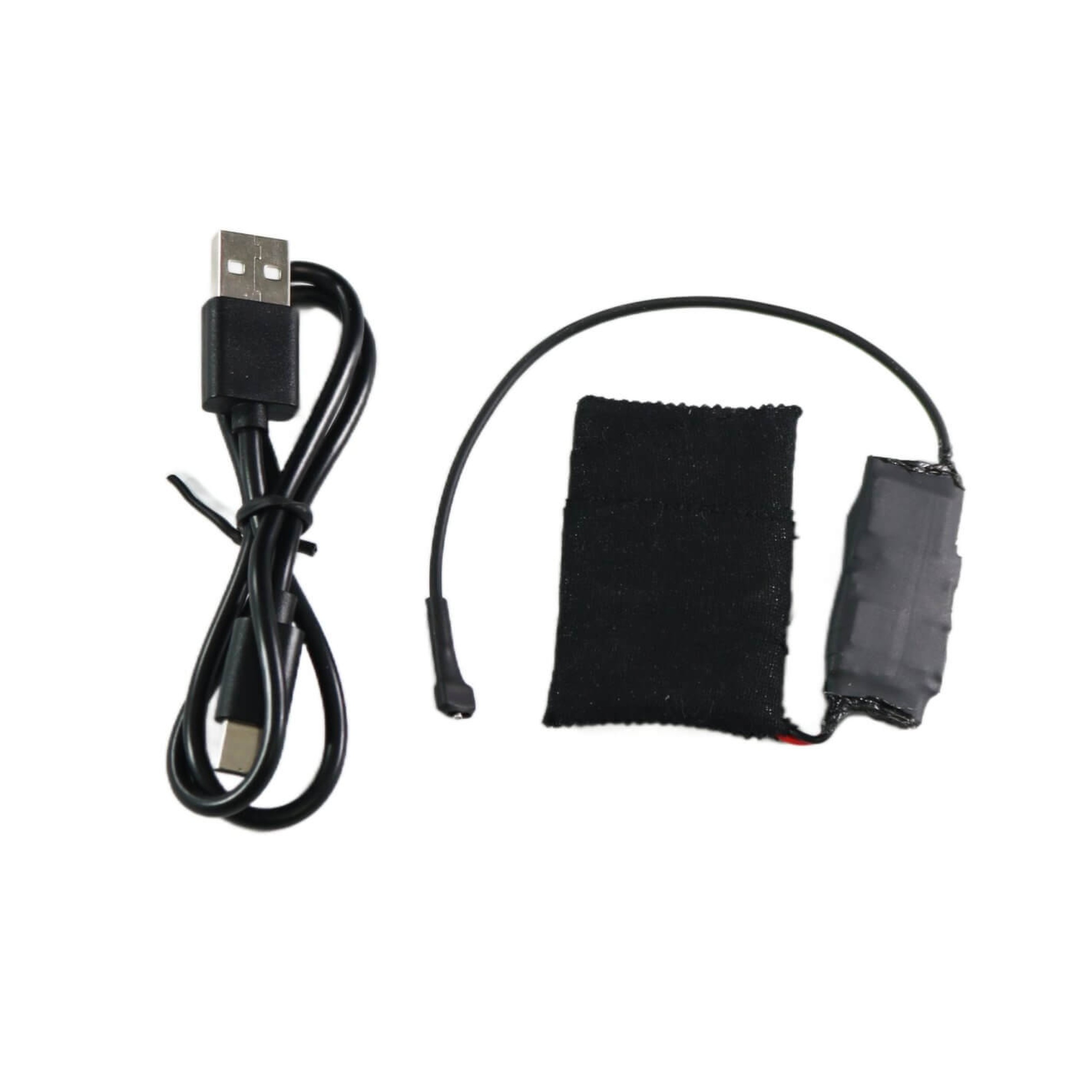

The package contains the SPK-REC device itself, a USB cable for connecting to a computer, and three Velcro strips for attaching the device to various surfaces.
What is the range of the microphone on the SPK-REC?
The SPK-REC captures audio from distances of up to 10-15 meters. This ensures high-quality recordings, essential for covert surveillance and investigative purposes.
What is the recording time of the SPK-REC ?
The device consumes about 6-7mAh in VOR and 192Kbps. It can record for approximately 50 hours.
Note
For more details on setting up and usage of the device,
please study the PDF file below.
24 months warranty
>>Download detailed specifications (PDF)<<
