The VTech Thermal Camera for face recognition and temperature detection is a new AI-based system that quickly and efficiently scans and detects individuals with elevated body temperature.

The device allows the user to accurately identify individuals with elevated body temperature, as well as to recognize if the user is wearing a mask or not. High body temperature is an indicator of a potentially infectious disease like the current COVID-19, or the H1N1, and other types of influenza viruses.



The Access Control Thermal Camera can be used in a multitude of ways and places. From facilities with a high degree of people circulation to crowded places; Supermarkets, Offices, Hotels, Hospitals, Banks, Airports, Schools & Universities, Housing estates, Factories, Subways, Cruise ships, Industrial parks, etc.



The device can be set up as a desktop camera, a gate-type camera, and it can be mounted onto a wall. This permits the device to adapt to the individual facility parameters; for example as access control in subways or a sign-in system in hospitals. This adds to the safety regulations for pandemic prevention and control.

Thermal Camera T5 Full Specifications:

Chipset: Hi3516DV300
System: Linux operation system
RAM: 16G EMMC
Image sensor: 1/2.7" CMOS
Lens: 4.5mm
Camera: Binocular camera supports live detection
Effective pixel: 2Mega pixel, 1080P
Min. lux: Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2
SNR: ≥50db(AGC OFF)
WDR: ≥80db
Height: 1.2-2.2 M, angle adjustable
Distance: 0.5-2 Meters
View angle: Vertical ±40 degree
Recording Time: <500ms
Function: Supports 22400 faces database and 100000 records
Range: 30-45(°C)
Accuracy: ±0.5(°C)
Distance: 40 cm
Response time: <500ms

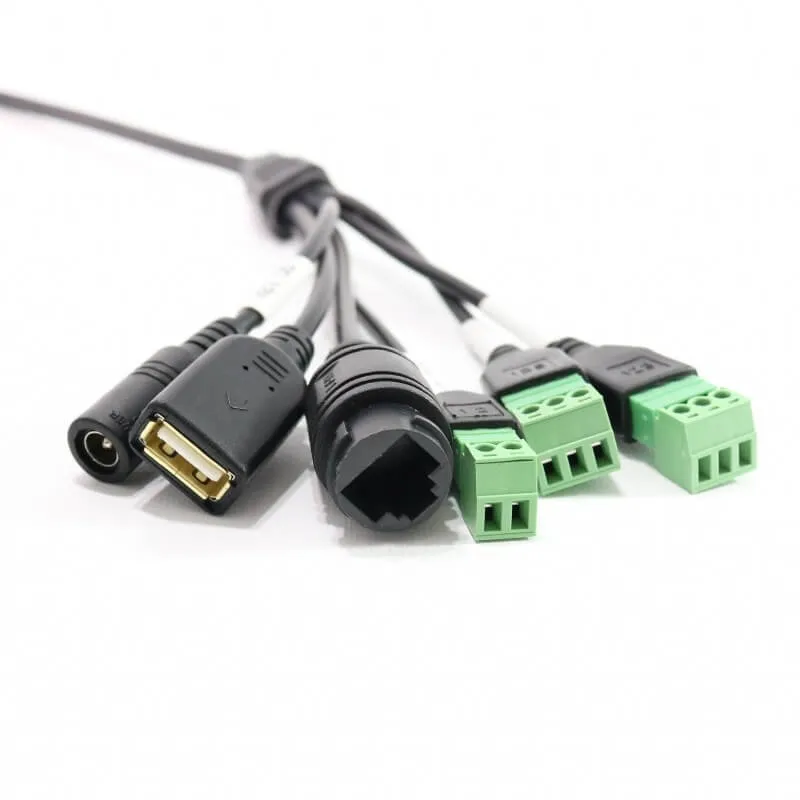

Internet interface: RJ45 10M/100M Ethernet
Weigand port: Support input/output 26 and 34
Alarm output: 1channel relay output
USB port: 1USB port (Can be connected to ID identifier)
Power input: DC 12V/3A
Power consumption: 20W(MAX)
Working temperature: -15°C ~ +60°C
Humidity: 5~90%, no condense
Dimension: 123.5(W) * 84(H) *361.3(L)mm
Weight: 1.9 kg

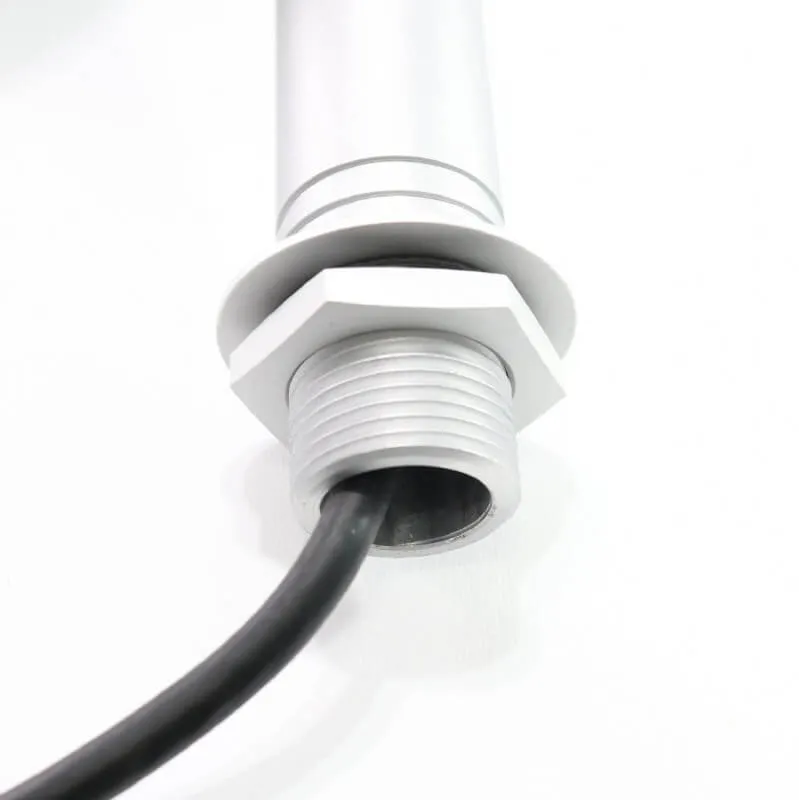

Column aperture: 33mm





The device has an integrated Full HD 1080P 2 Megapixel Sony Camera with dual WDR for live scanning of people and different body shape detection. It also provides great detection and results in circumstances of very little light; Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2.



The Access Control Camera performs high-precision scanning of the human face in <500ms, it can recognize if the person is wearing a mask, and identify the person with and without a mask. At the same time, it performs infrared temperature acquisition. The device measures the temperature from 30 to 45 (°C), with an accuracy of ± 0.5 (°C).



The device comes with a 7-inch IPS HD display, offers multi-interface protocols (SDK & HTTP), for various platforms (Linux, Windows). It allows real-time monitoring via the PC and comes with an App.

It allows the benefit of automatic operation with no manual intervention needed, which makes it secure and efficient for everyday use by a large number of people.

The comparison library allows for 22400 faces to be stored, and the faces recognition record supports up to 100.000 faces. The real-time high-temperature warning and live electronic voice broadcast add to the quick and automatic operation and smooth flow of a large number of people.





The device can be set-up in a multitude of ways; tripod, gate control, sign-in system, desktop setup - thus adapting to the individual business needs, the public sector needs, and enables ease of crow management and control. It is a step towards the usual people migration and flow, especially as the COVID-19 situation is ongoing.

Can the VTech T5 Thermal Camera recognize individuals wearing masks?
Yes, the VTech T5 Thermal Camera can recognize if a person is wearing a mask and can identify individuals both with and without masks. This feature is particularly useful in maintaining safety protocols during pandemics, where mask-wearing is common. The camera’s advanced facial recognition technology allows for seamless operation even in environments where mask usage is mandatory.


Does the VTech T5 Thermal Camera provide real-time monitoring?
Yes, the VTech T5 Thermal Camera offers real-time monitoring capabilities via PC or laptop. This feature allows for continuous observation and immediate response to any detected high temperatures or unrecognized individuals. The real-time monitoring is facilitated by the device’s 7-inch IPS HD display and its compatibility with various platforms through SDK & HTTP protocols.


How accurate is the temperature measurement of the VTech T5 Thermal Camera?
The VTech T5 Thermal Camera measures temperatures ranging from 30 to 45°C with an accuracy of ± 0.5°C. This high precision ensures reliable temperature readings, which is critical for identifying individuals with fever as a symptom of infectious diseases. The device’s fast response time of <500ms further enhances its efficiency in temperature screening.


How does the VTech T5 Thermal Camera alert users to high temperatures?
The VTech T5 Thermal Camera features a real-time voice warning system that alerts users to high temperatures. This immediate notification allows for quick action to be taken, such as further medical screening or isolation of the individual. The voice warning system adds an extra layer of safety by ensuring that high temperatures are promptly addressed.


What are the setup options for the VTech T5 Thermal Camera?
The VTech T5 Thermal Camera can be set up in various ways, including as a desktop camera, a gate-type camera, or mounted onto a wall. These versatile setup options allow the device to adapt to different facility parameters and needs, such as access control in subways or sign-in systems in hospitals. The flexibility in setup ensures that the camera can be effectively integrated into various environments.


What is the face comparison and recognition capacity of the VTech T5 Thermal Camera?
The VTech T5 Thermal Camera has a comparison library capacity of 22,400 faces and can store up to 100,000 face recognition records. This extensive database capacity allows for efficient monitoring and identification of a large number of individuals, making it suitable for use in places with high people circulation. The device’s ability to quickly scan and recognize faces enhances security and safety measures.


What is the illumination capability of the VTech T5 Thermal Camera?
The VTech T5 Thermal Camera provides accurate measurements in low light circumstances with a color illumination of 0.01Lux and B/W 0.001Lux. This great minimum illumination ensures that the device can operate effectively in various lighting conditions, delivering reliable face recognition and temperature detection even in dimly lit environments. The dual WDR Full HD 1080P 2 Megapixel Sony Camera enhances its performance in challenging lighting.


What is the VTech T5 Thermal Camera used for?
The VTech T5 Thermal Camera is designed for face recognition and temperature detection to identify individuals with elevated body temperatures. It is particularly useful in detecting potential infectious diseases like COVID-19 or influenza in crowded or high-traffic areas. The device’s AI-based system allows for quick and efficient scanning, making it suitable for supermarkets, offices, hospitals, airports, and more.


What languages does the VTech T5 Thermal Camera support?
The VTech T5 Thermal Camera supports 10 languages, including English, German, Italian, French, Chinese, Japanese, Korean, Portuguese, Russian, and Spanish. This multilingual support makes the device versatile and user-friendly across different countries and regions. The availability of multiple languages ensures that the device can be effectively used in international settings.


Where can I find the user manual and detailed specifications for the VTech T5 Thermal Camera?
The user manual and detailed specifications for the VTech T5 Thermal Camera can be downloaded from the bottom of this page. These resources provide comprehensive information on setup, operation, and maintenance, ensuring users can maximize the device’s capabilities.

PDF Specifications and Product Catalogue as well as detailed setup instructions available for download below. Additional setup documentation available upon order.
