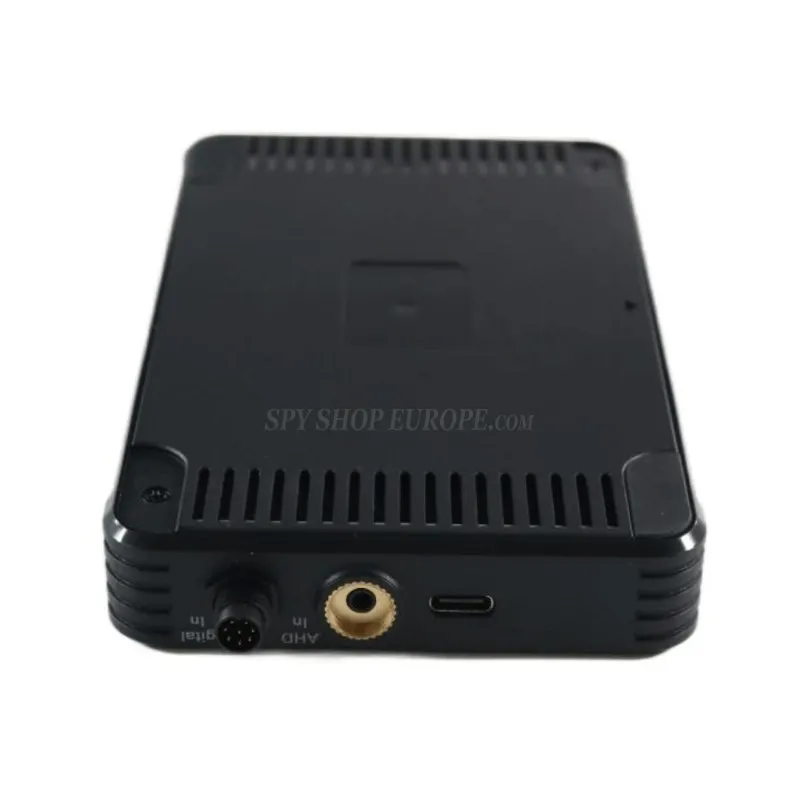

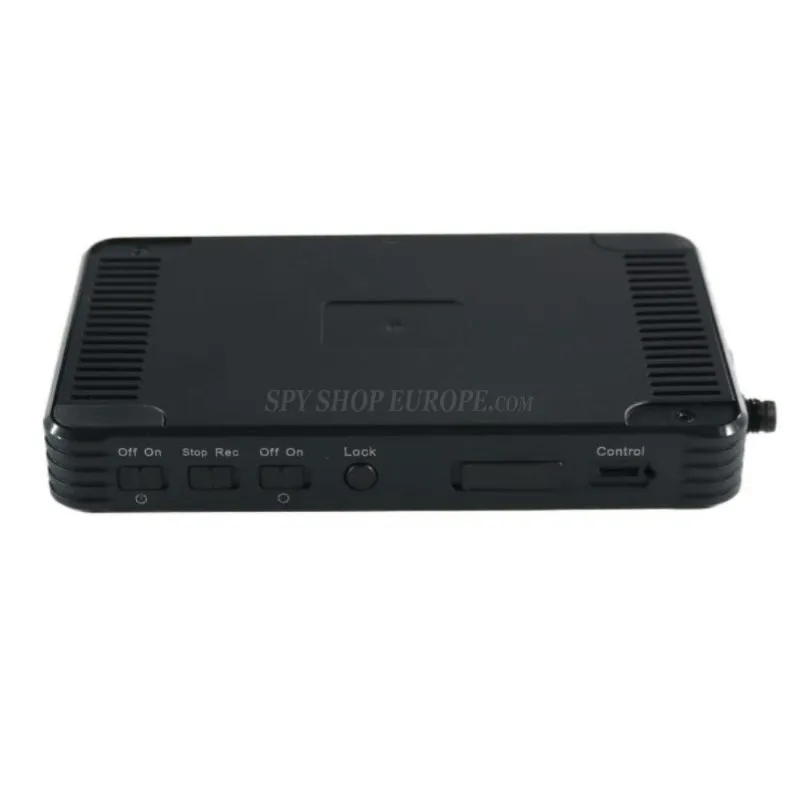

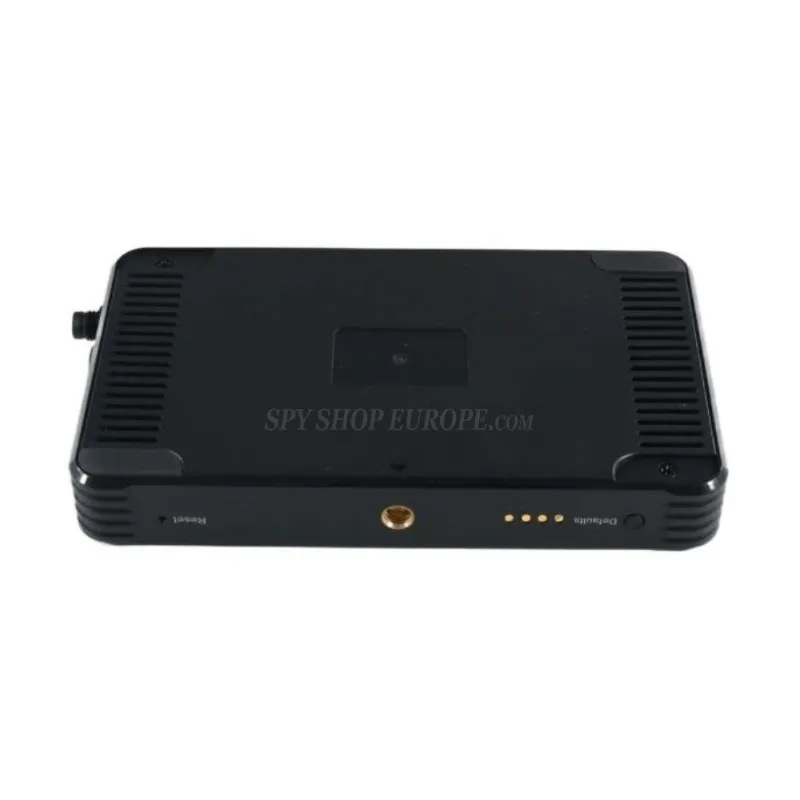

The new 2025 PV-1000AHD is the latest model in the LawMate PV-1000 series, upgraded from PV-1000 EVO3, to now include a thinner frame, Wi-Fi connectivity, flexible digital and analog camera options, SD Cards up to 512GB, and a built-in 5000 mA battery for longer operation time.
The PV-1000AHD is a Wi-Fi enabled device, meaning you can view live feed and control recordings remotely from your smartphone as long as they are connected on the same Wi-Fi.
The DVR is compatible with both digital and analog cameras, and one of the key advantages of this new model is the additional BNC male connector that supports connection to any compatible third-party camera and not only LawMate's to provide broader functionality. For the Digital In, the PV-1000AHD is compatible with the bestseller BU-18Neo Button camera, and for the Analog In, also releasing with the PV-1000AHD, is the BU-18AHD camera, made specifically for this DVR. It is an analog button camera offering 1080p recordings.
The PV-1000AHD features several recording modes for added flexibility: Standard, Motion Detection, Pre-Event, and Pre-Motion video recording modes. Another great feature is that the DVR has a built-in 32GB EMMC storage for the Pre-Event and Pre-motion recording, and also supports SD Card storage, with SD cards up to 512GB.
Battery life is improved from the previous 4400mAh battery, as it now includes a built-in 5000mAh battery, providing longer operation time on a single charge.
With dimensions of 140mm x 84mm x 19mm, this DVR is easy to carry and discreet enough to be used in covert surveillance situations.
PV-1000 AHD Main Features:
- Wi-Fi functionality for remote control and monitoring
- Additional BNC male connector for compatibility with third-party cameras
- Built-in 5000mAh battery for extended recording
- Compatible with both digital and analog camera
- Compatible with digital BU-18Neo Button Camera
- Integrated 32G EMMC memory or SD Card storage options up to 512GB
- Standard and Motion Detection, Pre-Event, Pre-Motion recording modes
- Compact design (140mm x 84mm x 19mm) for easy portability
PV-1000 AHD Specifications:
Display: 5" RGB 1280 × 720 Color TFT LCD
Touch Panel: Capacitive Touch Panel
Algorithm: H.264
File Format: MOV, JPG
Digital Camera Signal: 1080P RGB Input
AHD Camera Signal: 1080P AHD Input (2.5)
Video Recording Mode: Standard / Motion Detection / Pre-Event / Pre-Motion
Recording Resolutions:1920 × 1080, 1280 × 720
Real-Time Recording
Max. Resolution:Video: 1080P (1920 × 1080), Photo: 2048 × 1536
Frame Rate: 25 / 30 / 60 FPS
Memory Type: Built-in 32GB EMMC & SD Card (Supports 32GB – 512GB, FAT32/exFAT)
Power Output to Camera: DC5V 250mA Max (Over Current Protection)
HDMI Output: HDMI Image Output
PC Interface: USB2.0 Type-C
Video Recording Bitrates:1080P: 25 / 30 FPS, 720P: 25 / 30 / 60 FPS
Storage Usage: Digital Camera 1080P: 110MB per minute, AHD Camera 1080P: 87MB per minute
Built-in Wi-Fi Module: 802.11B/G/N RTSP Stream
WPA2-PSK Encryption
Compatible with iOS & Android App
Remote Control: RF Remote Support
Date/Time Stamp Format: YYYY/MM/DD (America) & DD/MM/YYYY
Frame Counter Stamp: Yes
Power Consumption: Recording (Digital Camera): 600mA (Wi-Fi OFF, LCD OFF), Recording (AHD Camera): 800mA (Wi-Fi OFF, LCD OFF)
Charging Current: 1.2A (Fully Charged in 4.5 Hours)
Battery: DC 3.7V / 5000mAh Lithium Battery
Battery Life: BU-18 Camera: 380 min (Wi-Fi OFF) / 300 min (Wi-Fi ON), AHD Camera: 240 min (Wi-Fi OFF) / 200 min (Wi-Fi ON)
Recording Time with 512GB SD Card: Digital Camera: 4000 min, AHD Camera: 5000 min
Dimensions: 140 × 84 × 19 mm
Weight: 258 g
PV-CAM iOS and Android apps for LawMate Wi-Fi recorders:
Google play link:
App Store link:
PV-1000AHD Feature Focus:
Wi-Fi Functionality for Remote Control
With the integrated Wi-Fi connectivity, you can control and monitor recordings remotely through your smartphone via the LawMate PV-Cam Viewer App as long as they are on the same Wi-Fi network. This feature is valuable for discreet surveillance, allowing you to make adjustments or review footage on your phone instead of taking out the DVR. Remote access minimizes disruption and maximizes operational efficiency.
Third-party cameras connection option
The new addition of a BNC male connector adds the option to connect the PV-1000AHD DVR to any compatible third-party camera, allowing for compatibility beyond LawMate’s models and offering flexibility for if you have preferred existing camera equipment.
Digital and Analog camera In
The PV-1000AHD supports both analog cameras and digital cameras. For digital cameras, it is compatible with the bestseller BU-18Neo Button camera, which was previously only compatible with the PV-500Neo Pro DVR. As for analog cameras, LawMate released a new BU-18AHD button camera, which offers 1080p recording quality.
Multiple recording modes
The PV-1000AHD offers four different recording modes, allowing you to capture video based on specific needs and situations: Standard or continuous recording, best suited for situations where constant surveillance is required, such as monitoring an area or recording long events. Motion detection records only when motion is detected within the camera’s view. This helps save storage space and battery life by avoiding unnecessary footage when there is no activity. It is useful for security monitoring or covert surveillance, as it captures only relevant events. Pre-Event recording captures a short amount of footage before the recording is manually triggered. It ensures that you don’t miss the moments leading up to an event, which is helpful in unexpected situations where reaction time is limited. Pre-Motion recording is similar to pre-event recording, but this mode saves footage a few seconds before motion is detected. It is ideal for situations where you need to see what happened just before movement occurred, ensuring you capture the full context of an event.
Built-in Storage and up to 512 SD Card Support
The DVR features built-in 32GB eMMC storage for Pre-Event and Pre-Motion recording modes. When a selected video period is recorded, it is saved to the memory card, freeing up eMMC storage for new recordings. The PV-1000AHD supports up to a 512GB SD card. This gives you plenty of storage for long recording sessions or high-quality video. With both built-in and expandable storage, you won’t have to worry about running out of space, even for important or long-term recordings.
Compact and Discreet Design
Measuring only 140mm x 84mm x 19mm, the PV-1000AHD’s slim design makes it easy to carry and conceal. Its lightweight and small form factor make it ideal for undercover applications, allowing for convenient integration into various surveillance setups without drawing attention.
PV-1000 AHD FAQs
What cameras are compatible with the PV-1000AHD?
The PV-1000AHD supports both digital and analog cameras. It is compatible with the BU-18Neo Button Camera (digital) and the AHD Button Camera (analog, 1080p). Additionally, the DVR includes a BNC male connector, allowing you to connect third-party cameras that support this connection.
Does the PV-1000AHD have Wi-Fi connectivity?
Yes, the device features Wi-Fi functionality, enabling remote viewing and control via the PV-Cam Viewer App for both iOS and Android devices. The smartphone and DVR must be on the same Wi-Fi network for this feature to work.
How much storage does the PV-1000AHD have?
It comes with a built-in 32GB EMMC and supports SD cards ranging from 32GB to 512GB (FAT32/exFAT).
How long does the battery last?
The PV-1000AHD is equipped with a 5000mAh lithium battery, with actual battery life depending on factors such as camera type, resolution settings, and Wi-Fi usage.
Can I connect third-party cameras to this DVR?
Yes, one of the major upgrades in this model is the inclusion of a BNC male connector, which allows you to connect compatible third-party analog cameras beyond LawMate’s models.
What recording modes does the PV-1000AHD support?
The PV-1000AHD supports four recording modes—Standard (continuous), Motion Detection, Pre-Event, and Pre-Motion—offering flexibility for constant surveillance, storage optimization, and capturing crucial moments before an event or motion detection.
What is the resolution of the PV-1000AHD’s screen?
The device features a 5-inch LCD touchscreen with a resolution of 1280 x 720 pixels, providing a clear display for reviewing footage and navigating the settings.
Can I review footage directly on the DVR?
Yes, the built-in LCD touchscreen allows you to play back recordings directly on the device without needing to transfer files to another device.
Is the PV-1000AHD discreet and portable?
Yes, with its compact dimensions of 140mm x 84mm x 19mm, the PV-1000AHD is lightweight and discreet, making it ideal for covert surveillance applications.
Note:
For detailed info on the specifications and use of the device, please read the PDF available for download below.
24-Month Warranty
>>Download detailed specifications (PDF)<<
